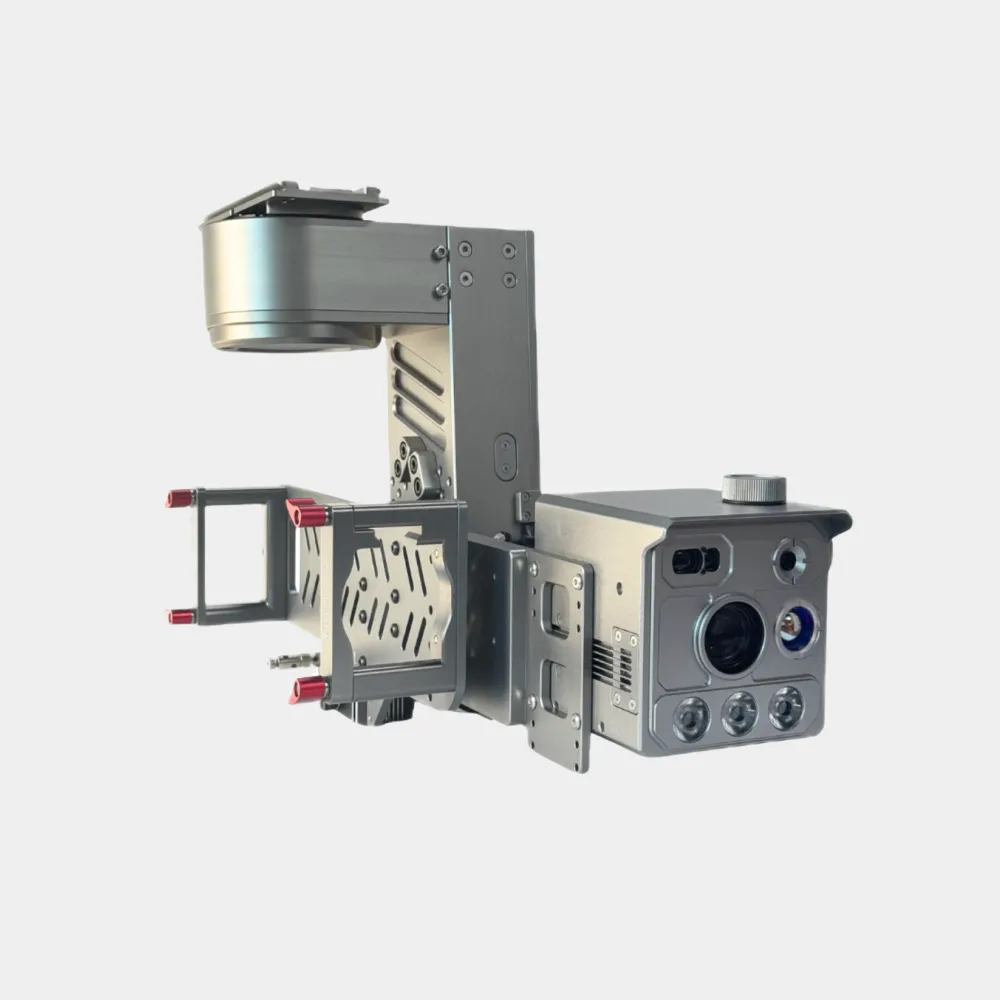

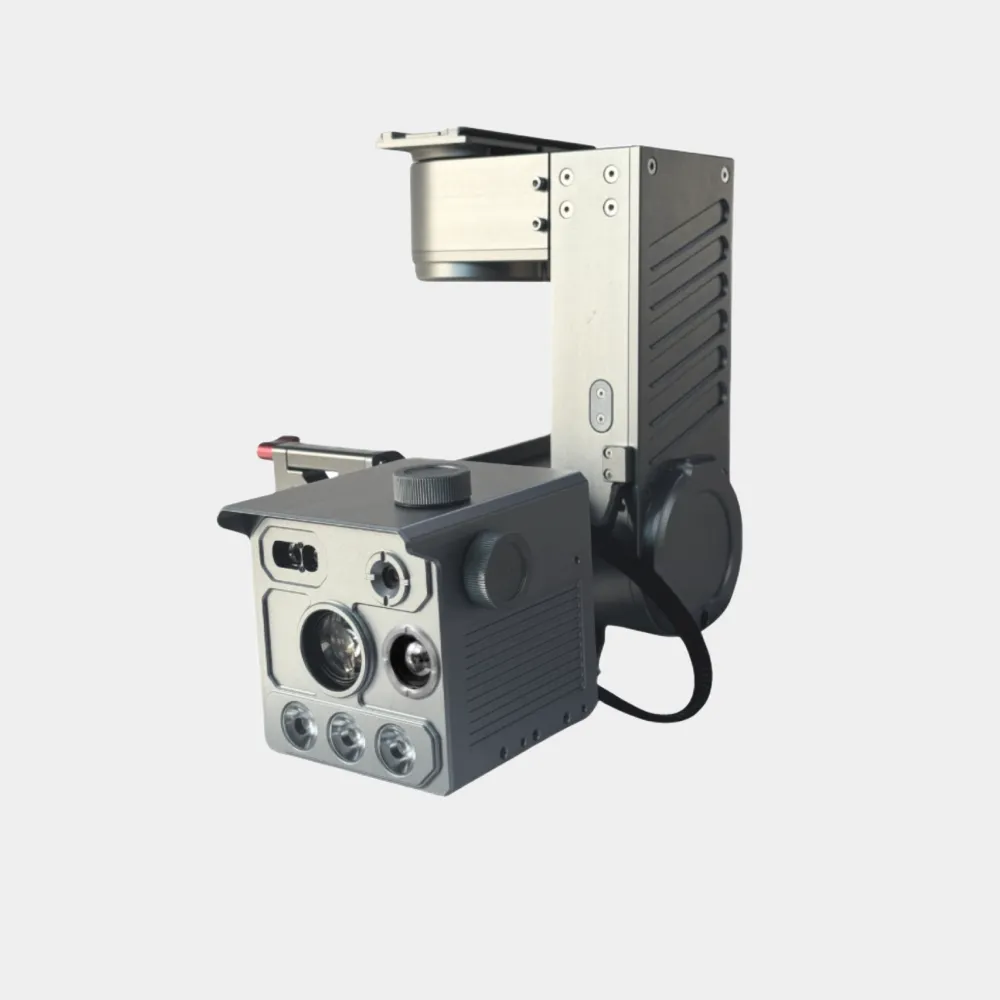

The Servo-Stabilized Infrared Controller is an integrated thermal infrared and visible-light observation payload for UAVs, unmanned vehicles and other unmanned platforms. It has dimensions of 360 x 300 x 320mm and a controller net weight of 5kg. The system operates on DC 24-60V input and supports network port and SBUS signal control. Its servo stabilization system provides dual-axis stabilization, heading and pitch linkage, pointing tracking and automatic self-locking at any angle. The observation system includes 4K visible-light imaging, 10x optical zoom, 40x comprehensive zoom, a 640 x 512 thermal infrared camera with a lens of at least 19mm, up to 1000m distance measurement and a 500m green-dot laser indicator.
Product Type
Servo-Stabilized Thermal Infrared Payload
Thermal Infrared Servo Stabilization
Stabilized Thermal Infrared Imaging

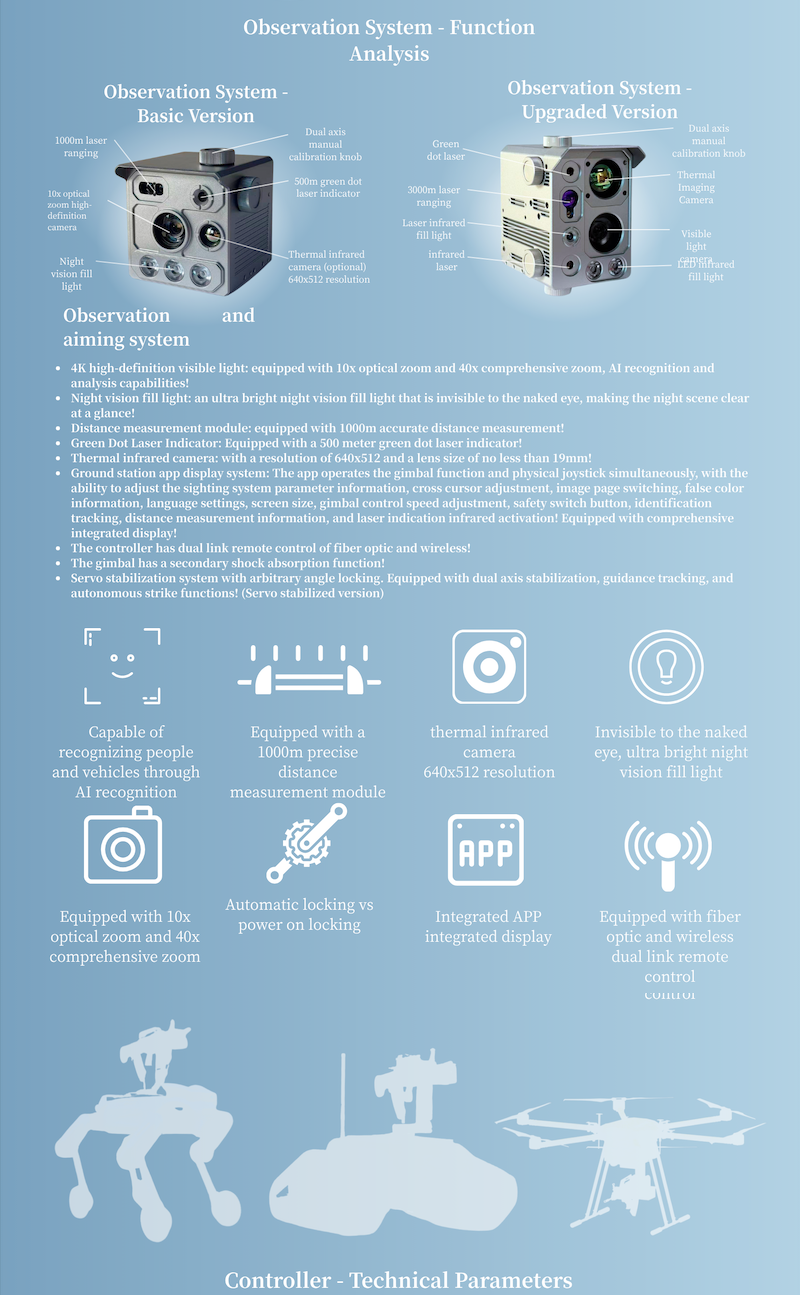

The servo-stabilized infrared payload combines visible-light and thermal infrared observation with a dual-axis stabilization system. The verified configuration includes 4K visible-light imaging, 10x optical zoom, 40x comprehensive zoom and a 640 x 512 thermal infrared camera with a lens of at least 19mm. The gimbal supports heading and pitch linkage, pointing tracking and automatic self-locking at any angle.

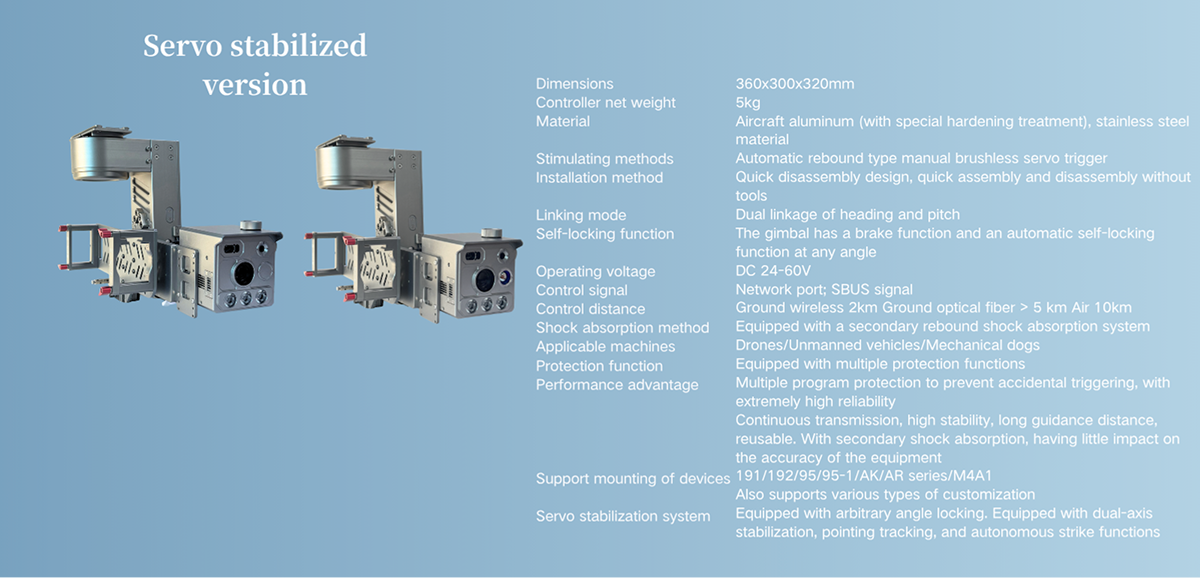

Technical Parameters
· Product Type: Servo-stabilized thermal infrared controller
· Application: UAVs, unmanned vehicles and other unmanned platforms
· Dimensions: 360 x 300 x 320mm
· Controller Net Weight: 5kg
· Material: Aircraft aluminum with special hardening treatment and stainless steel
· Working Voltage: DC 24-60V
· Control Signals: Network port and SBUS signal
· Stabilization: Dual-axis servo stabilization with heading and pitch linkage
· Self-Locking: Automatic self-locking at any angle
· Control Distance: Ground wireless 2km; ground optical fiber >5km; airborne 10km
· Visible-Light Imaging: 4K
· Optical Zoom: 10x optical zoom and 40x comprehensive zoom
· Thermal Infrared Imaging: 640 x 512 resolution
· Infrared Lens: Lens of at least 19mm
· Distance Measurement: Up to 1000m
· Green-Dot Laser Indicator: Up to 500m
· Installation: Quick-disassembly design without tools
· Shock Absorption: Secondary rebound shock absorption system
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Thermal Infrared Payload Features
· 4K high-definition visible-light imaging
· 10x optical zoom and 40x comprehensive zoom
· 640 x 512 thermal infrared camera
· Infrared lens of at least 19mm
· Up to 1000m distance measurement
· 500m green-dot laser indication
· DC 24-60V working voltage
· Network port and SBUS signal control
· Dual-axis servo stabilization and automatic self-locking
· Ground-station APP display and control functions
Packaging and Shipping
· Product packaging configuration: To be confirmed
· Mounting accessories and cable configuration: To be confirmed
· Ground-station APP and communication equipment configuration: To be confirmed
· Shipping dimensions and package weight: To be confirmed
· Please confirm the required visible-light and infrared configuration before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Configuration Notes
· Confirm that the host platform supports the DC 24-60V working voltage before integration.
· Confirm the required network or SBUS control method and matching communication equipment before installation.
· The 5kg controller net weight and 360 x 300 x 320mm dimensions must be included in the platform payload calculation.
· Confirm the actual infrared lens configuration, visible-light camera configuration and APP functions before ordering.
· Installation, calibration and initial operation should be completed by qualified technical personnel.
