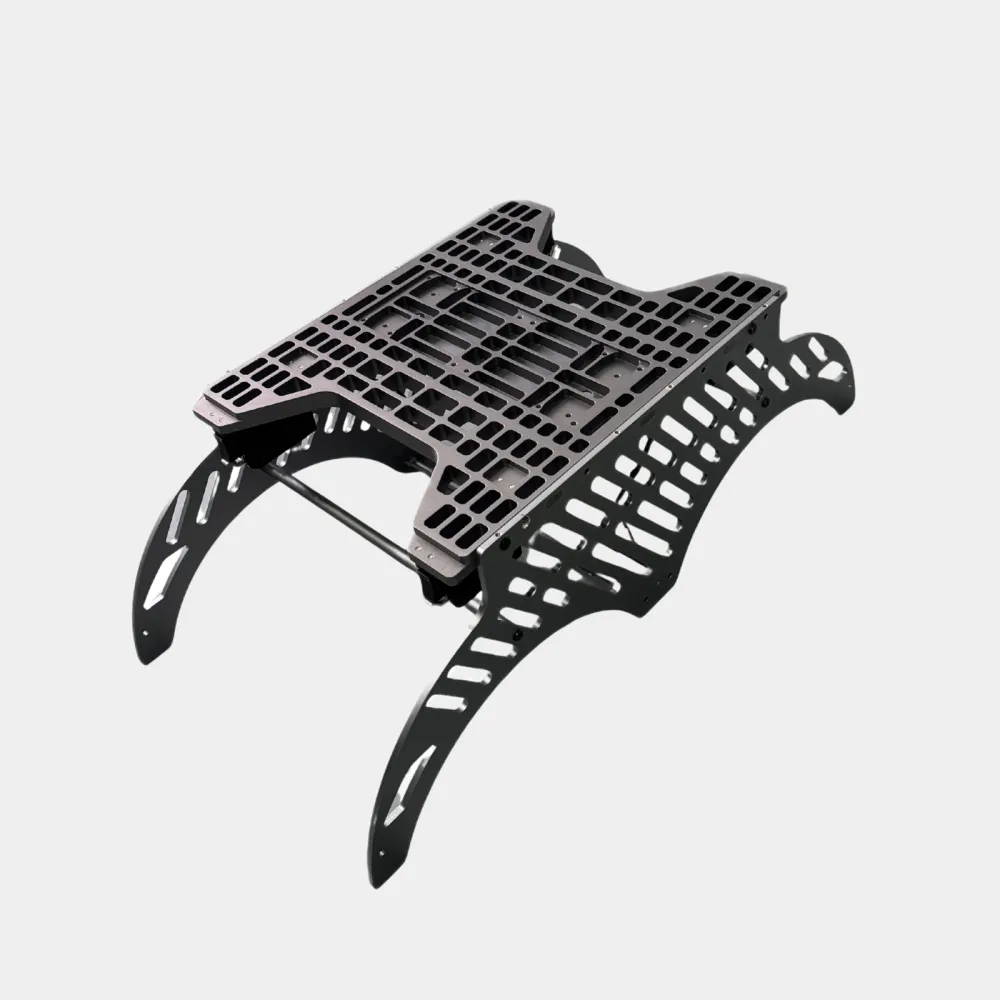

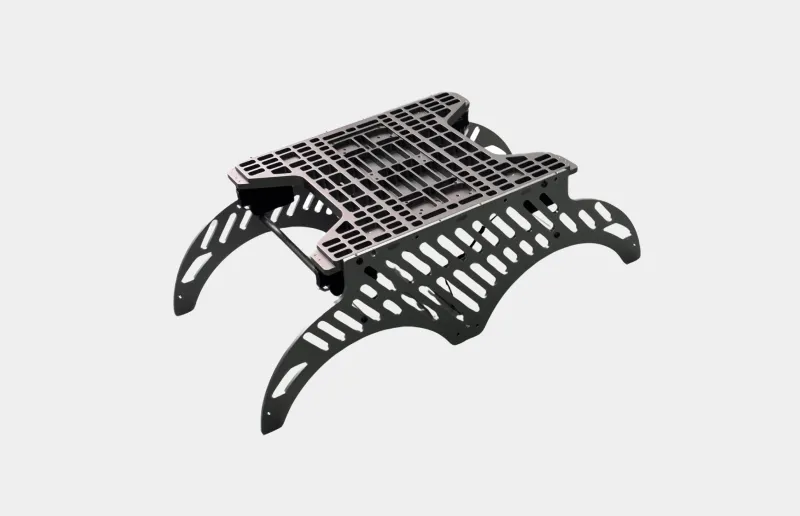

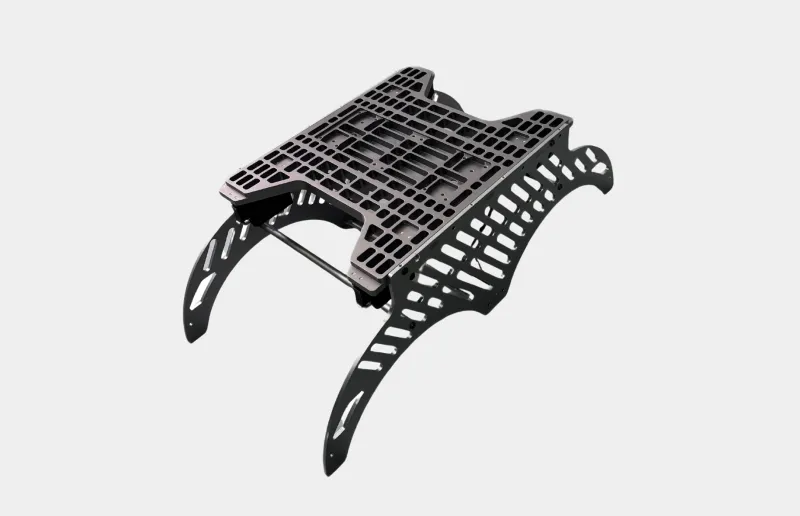

The UAV Fire Extinguisher Payload Release Mount is an aircraft-aluminum mounting system designed for compatible unmanned aerial vehicles used in aerial firefighting and emergency response. It measures 608 x 306 x 197 mm and has a net weight of 3.35 ± 0.5 kg. The mount supports a rated load of up to 60 kg, including the total weight of the installed fire suppression device. Its quick-disassembly structure supports efficient installation and maintenance, while IP54 protection helps it operate in outdoor environments with dust and water splashes. The system uses 12-80V working voltage, wireless flight-control triggering and SBUS control by default. Confirm the aircraft interface, payload capacity, control system and fire-safety requirements before integration.
Product Type
UAV Fire Extinguisher Payload Release Mount
UAV Firefighting Payload Integration
Lightweight Aircraft-Aluminum Structure

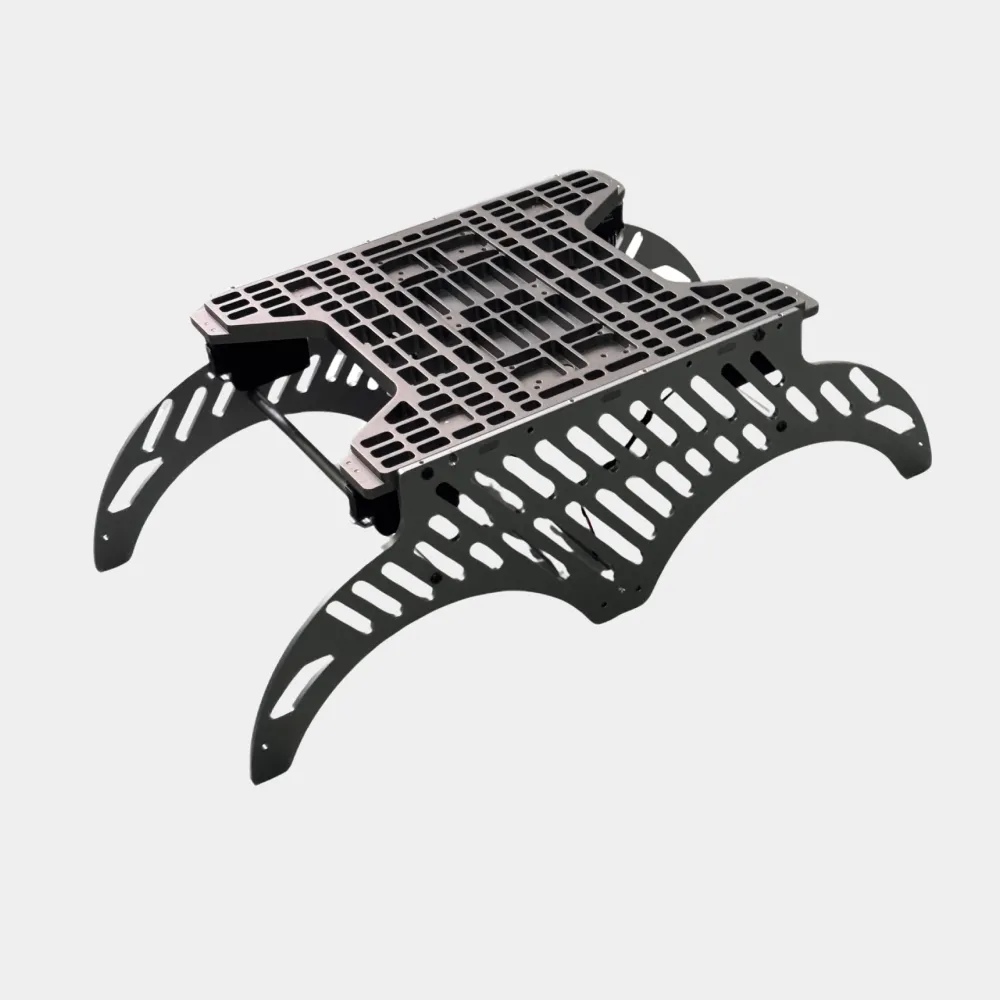

The UAV fire extinguisher payload release mount uses an aircraft-aluminum structure with a net weight of 3.35 ± 0.5 kg. Its quick-disassembly installation method is designed to simplify payload fitting and maintenance on compatible UAV platforms. The rated load is up to 60 kg, including the total weight of the installed fire suppression device. Confirm the aircraft payload limit before integration.
Outdoor-Ready Control Integration
The system supports 12-80V working voltage and SBUS control by default. Wireless triggering follows the compatible flight-control instructions, with a reported release response time of no more than 0.5 seconds and a synchronization difference of no more than 0.3 seconds between two released units. Confirm the control protocol, wiring and release logic before testing.

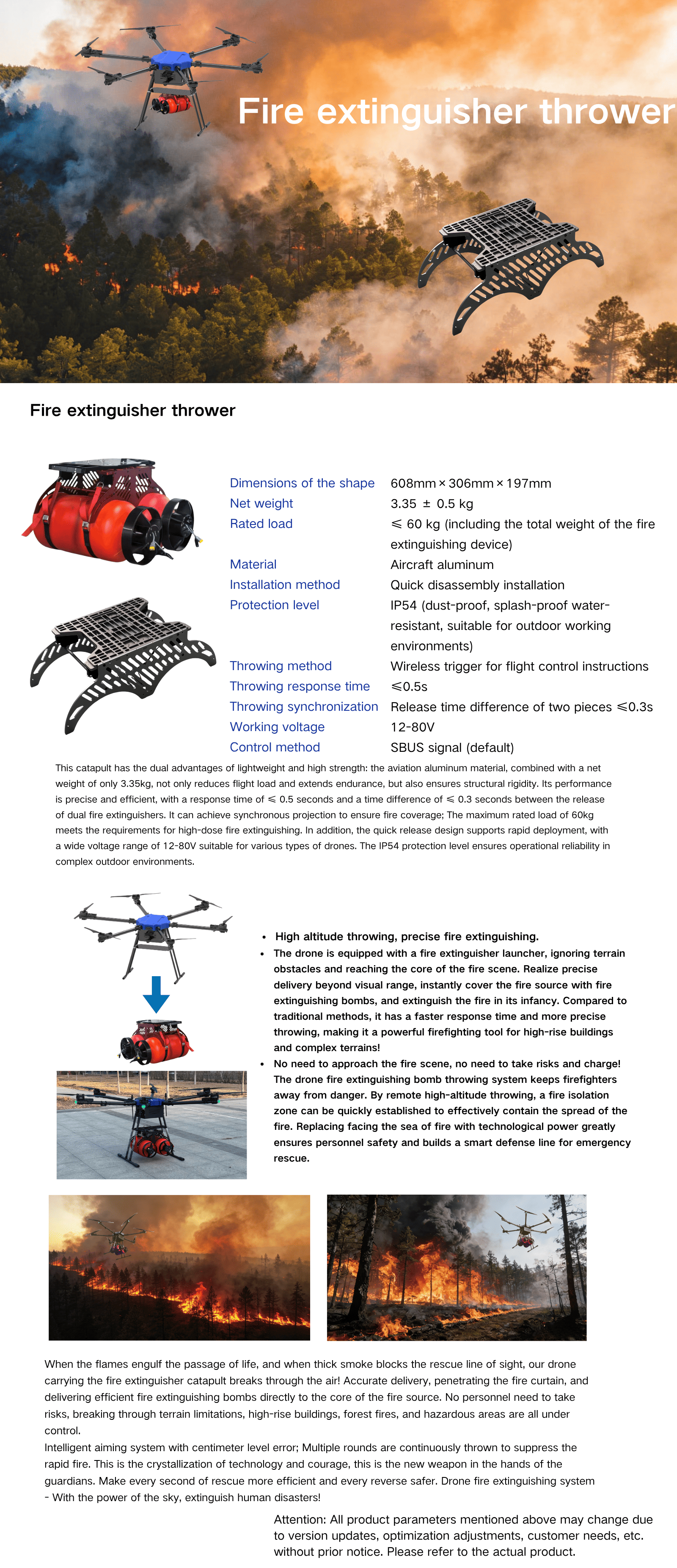

Technical Parameters
· Product Type: UAV fire extinguisher payload release mount
· External Dimensions: 608 x 306 x 197 mm
· Net Weight: 3.35 ± 0.5 kg
· Rated Load: ≤60 kg, including the total weight of the fire suppression device
· Material: Aircraft aluminum
· Installation Method: Quick-disassembly installation
· Protection Level: IP54, dust-resistant and splash-water-resistant
· Release Method: Wireless trigger based on flight-control instructions
· Release Response Time: ≤0.5s
· Release Synchronization Difference: ≤0.3s between two units
· Working Voltage: 12-80V
· Control Method: SBUS signal by default
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Firefighting Payload Release Integration
· Aircraft-aluminum UAV payload release mount
· External dimensions: 608 x 306 x 197 mm
· Net weight: 3.35 ± 0.5 kg
· Rated load: ≤60 kg including the installed fire suppression device
· IP54 protection for outdoor working environments
· Working voltage: 12-80V
· SBUS control by default
· Release response time: ≤0.5s
Packaging and Shipping
· Confirm the UAV mounting interface and payload configuration before quotation.
· Confirm whether the fire extinguisher payload is included or supplied separately.
· Confirm the final package contents, transport method and shipping requirements with RAYI before order placement.
· Fire suppression payloads may require additional transport, storage and regulatory checks.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Integration Notes
· Confirm the UAV payload capacity, mounting dimensions and center-of-gravity requirements before installation.
· The rated load includes the total weight of the installed fire suppression device; do not exceed the aircraft or mount limit.
· Confirm 12-80V power compatibility and SBUS control compatibility before wiring.
· IP54 protection does not mean the system can be immersed or exposed to severe weather without additional protection.
· Only trained and authorized personnel should install, test and operate the fire suppression payload release system.
· Conduct release tests in a controlled and legally approved area, away from people, property and unprotected equipment.
