The UAV Fire Extinguisher Payload is an aerial fire suppression device designed for compatible unmanned aircraft and emergency response operations. It is available in 5kg, 10kg and 25kg configurations, with water-based or dry-powder extinguishing agent options according to the selected model. The 5kg configuration has a 200mm length and 200mm maximum outer diameter. The 10kg and 25kg configurations use cylindrical bodies with a 265mm maximum outer diameter. The payload is made from PC and ABS composite impact-resistant material and supports a reported operating temperature range of -20°C to 55°C. Aircraft compatibility, payload capacity, release method and local fire-safety requirements must be confirmed before deployment.
Product Type
UAV Fire Extinguisher Payload for Aerial Fire Suppression
Aerial Fire Suppression Payload
Multiple Payload Capacities

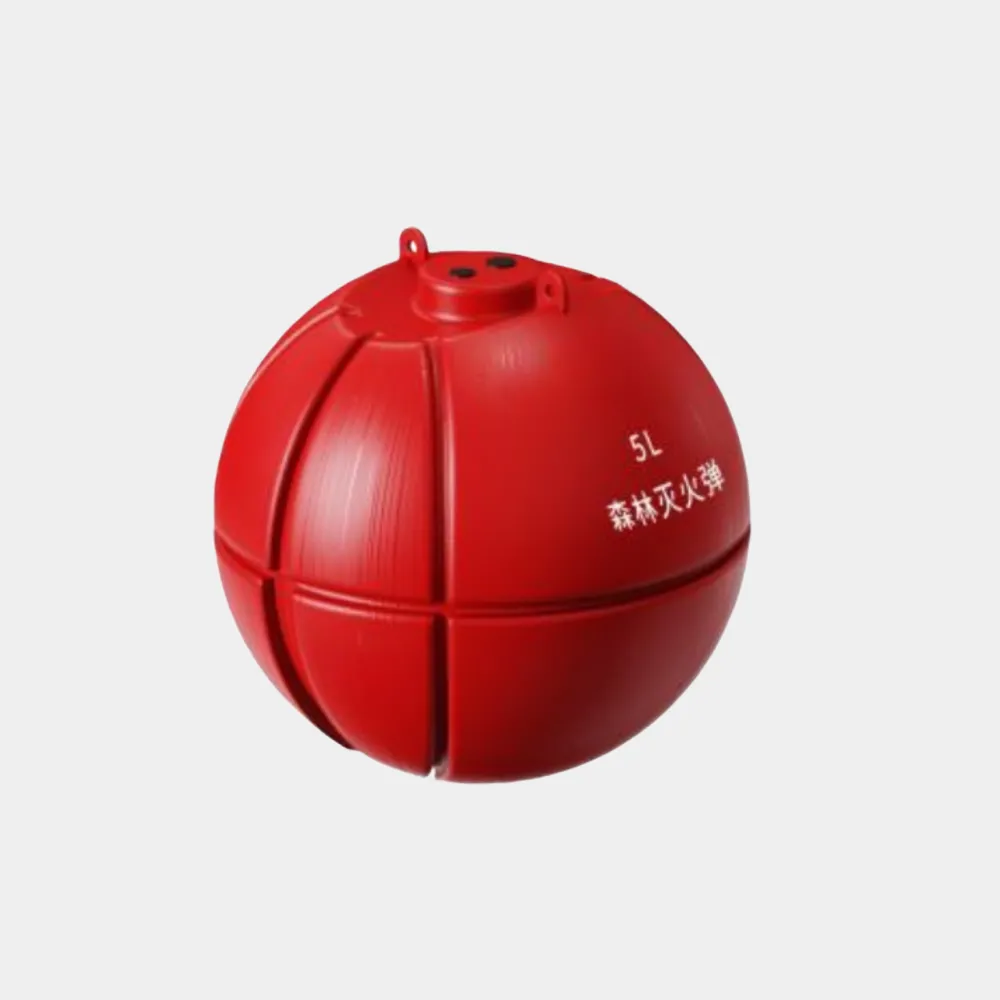

The UAV fire extinguisher payload is available in 5kg, 10kg and 25kg configurations for different aerial fire suppression requirements. The 5kg model uses a spherical body, while the 10kg and 25kg models use cylindrical bodies. Customers can select the suitable configuration according to the aircraft payload limit, target area and extinguishing-agent requirement.
Water-Based or Dry-Powder Filling
The fire suppression payload supports water-based and dry-powder filling options according to the selected configuration. The source specification lists S-100-AB water-based agent and micro-nano composite ultrafine dry powder as available agent types. Confirm the filling type, operating temperature, transport requirements and aircraft integration conditions before purchase and deployment.

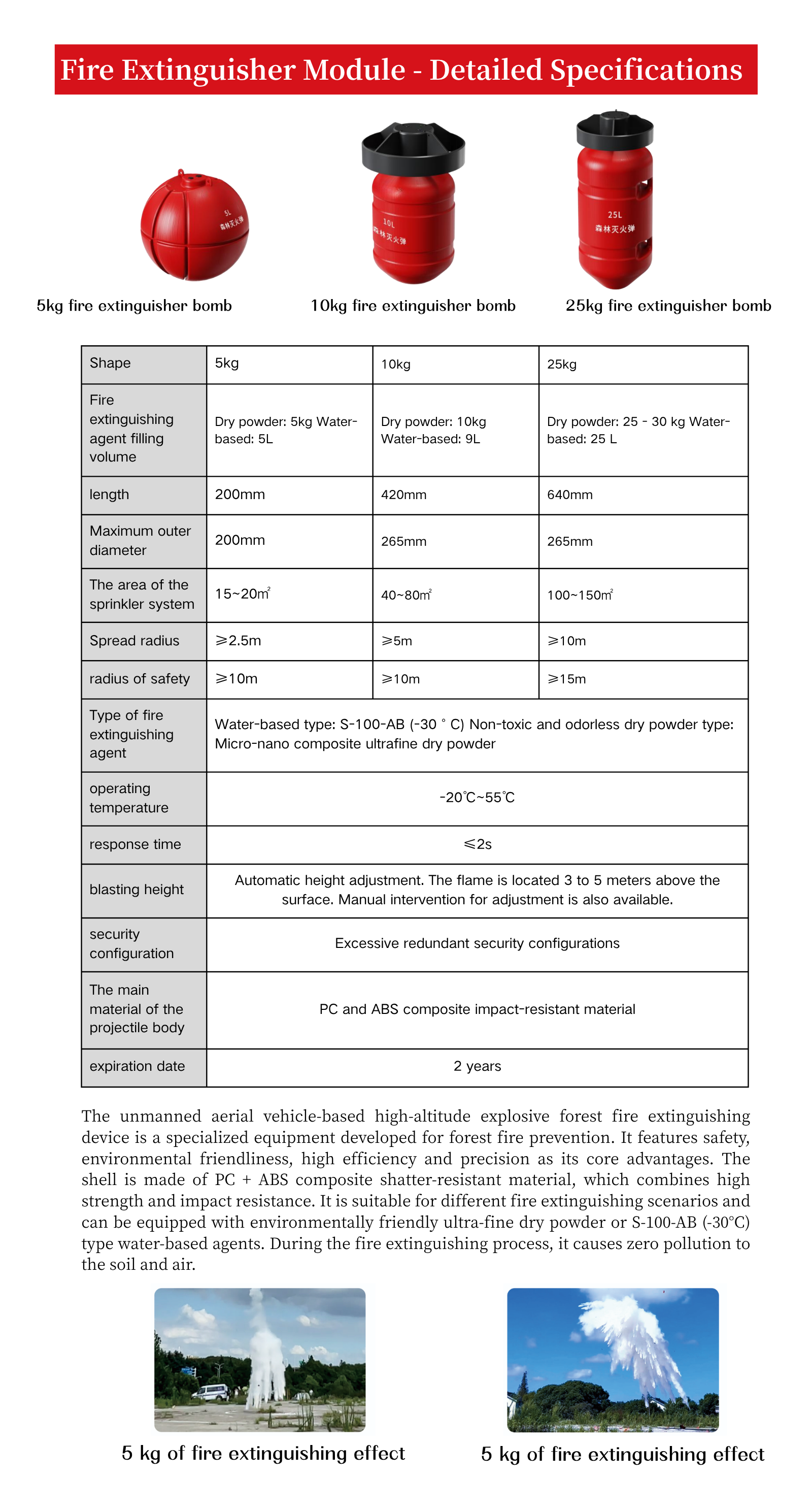

Technical Parameters
· Product Type: UAV fire extinguisher payload
· Available Configurations: 5kg, 10kg and 25kg
· 5kg Model Length: 200 mm
· 5kg Model Maximum Outer Diameter: 200 mm
· 10kg Model Length: 420 mm
· 10kg Model Maximum Outer Diameter: 265 mm
· 25kg Model Length: 640 mm
· 25kg Model Maximum Outer Diameter: 265 mm
· Filling Options: Water-based agent or ultrafine dry powder
· Water-Based Filling Volume: 5L for the 5kg model; 9L for the 10kg model; 25L for the 25kg model
· Dry-Powder Filling: 5kg, 10kg or 25-30kg according to model
· Recommended Suppression Area: 15-20 m², 40-80 m² or 100-150 m² according to model
· Spread Radius: ≥2.5m, ≥5m or ≥10m according to model
· Operating Temperature: -20°C to 55°C
· Response Time: ≤2s
· Main Body Material: PC and ABS composite impact-resistant material
· Reference Service Life: 2 years
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Fire Suppression Payload Options
· Available in 5kg, 10kg and 25kg configurations
· Water-based or ultrafine dry-powder filling options
· Recommended suppression area depends on the selected model
· Operating temperature: -20°C to 55°C
· Response time: ≤2s according to the source specification
· PC and ABS composite impact-resistant body
· Suitable for compatible UAV fire suppression and emergency response systems
Packaging and Shipping
· Confirm the selected 5kg, 10kg or 25kg configuration before quotation.
· Confirm the extinguishing-agent type, filling condition and transport classification before shipment.
· The product has a stated reference service life of 2 years; confirm the actual production date and storage requirements before order placement.
· Final package contents, transport method and shipping requirements should be confirmed with RAYI.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Fire-Safety Notes
· Confirm the UAV payload capacity, mounting method and release system compatibility before integration.
· Select the extinguishing-agent type according to the fire class, operating environment and local fire-safety requirements.
· Do not use the payload outside the approved operating temperature, storage or transport conditions.
· Only trained and authorized personnel should handle, transport, install and deploy the fire extinguisher payload.
· Conduct deployment tests in a controlled and legally approved area, away from people, property and unprotected equipment.
· Confirm all aviation, dangerous-goods transport and emergency-response regulations before shipment and operation.
