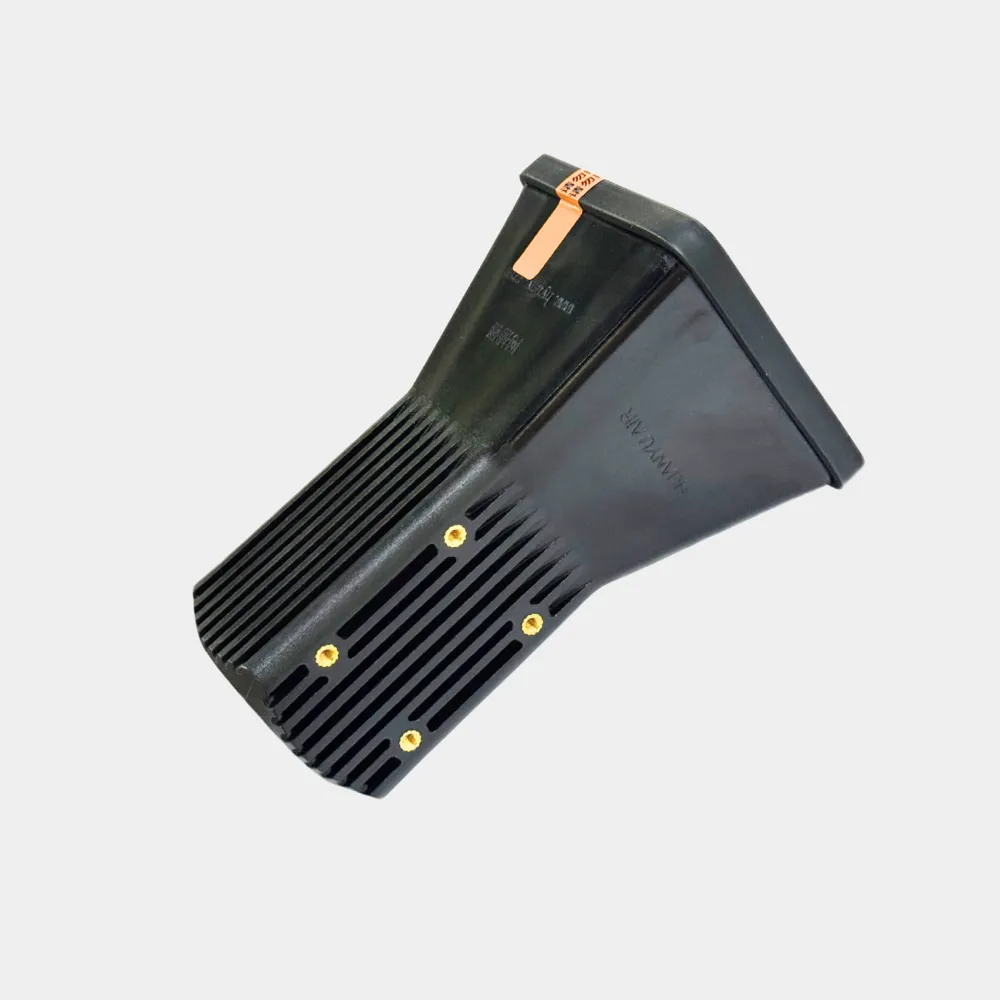

The UAV Net Capture Payload is a controlled physical-capture system for compatible unmanned aerial vehicles, unmanned platforms and robotic systems. It uses a high-strength nylon net with a 20cm mesh size and supports an effective capture distance of 10-20m according to the source specification. The net area can be configured as 3.3 x 3.3m or 5 x 5m, depending on the selected net option. The system supports PWM signal and switching power-supply control, with an electronic non-pressure storage drive design. Multiple mounting options are available, including handheld, twin-bracket, gimbal-stabilized and multi-level configurations. Platform compatibility, capture area, control method and local operating regulations should be confirmed before ordering.
Product Type
UAV Net Capture Payload for Controlled Drone Recovery
Controlled UAV Net Capture
Multi-Platform Capture Integration

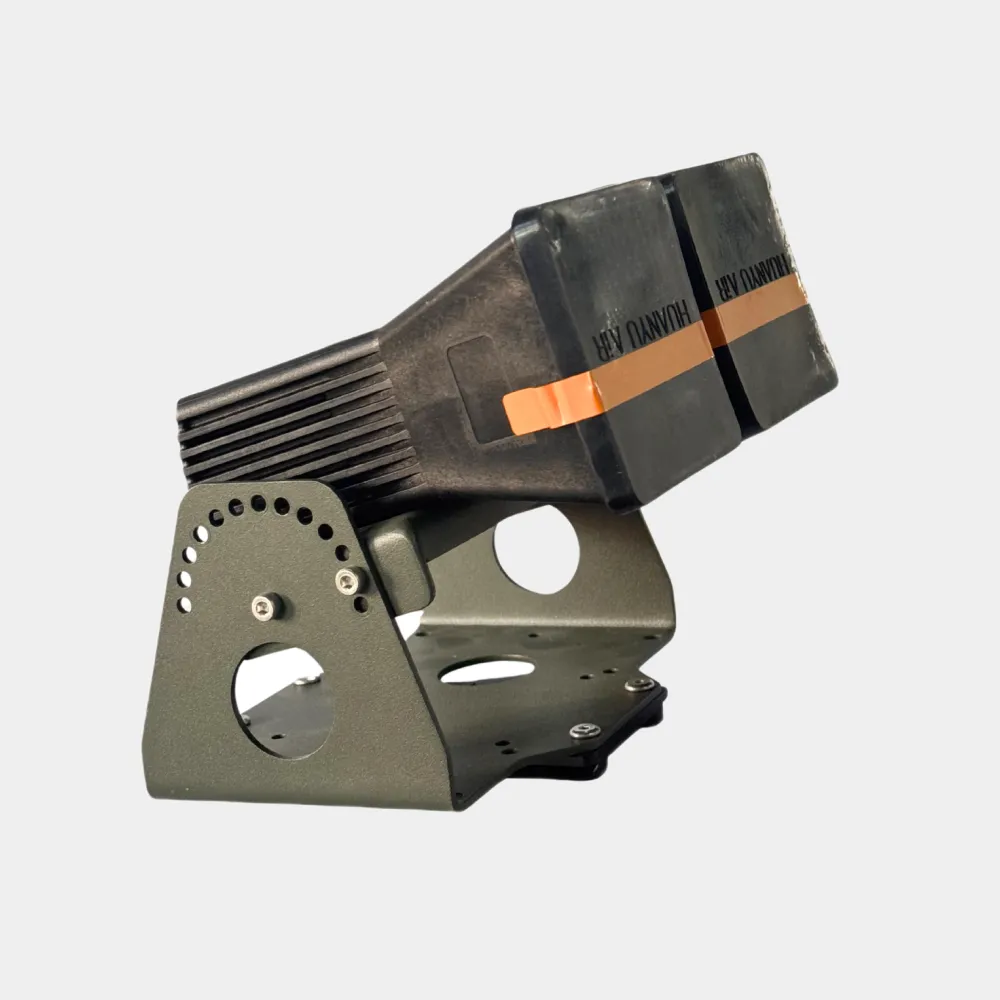

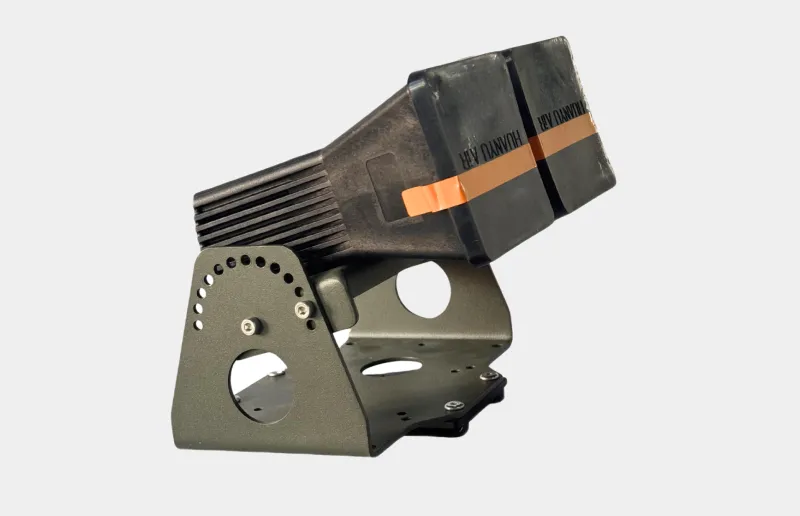

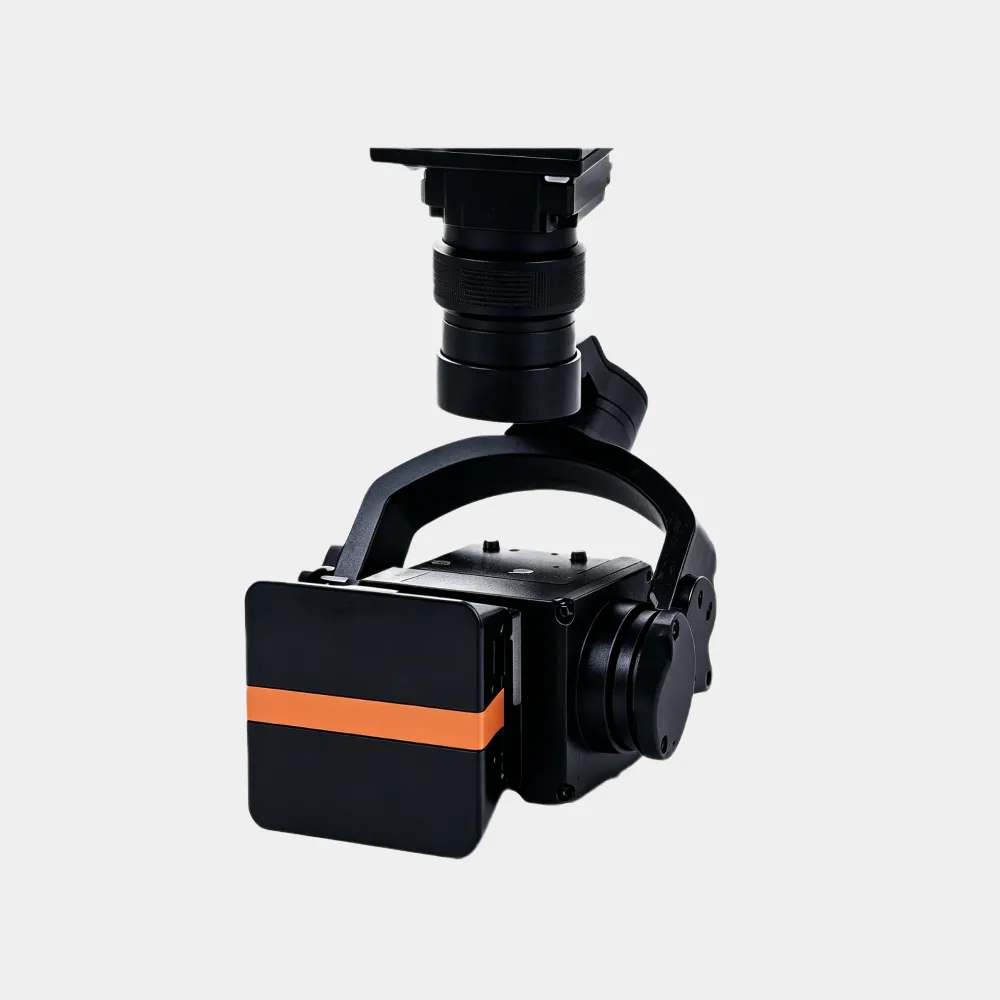

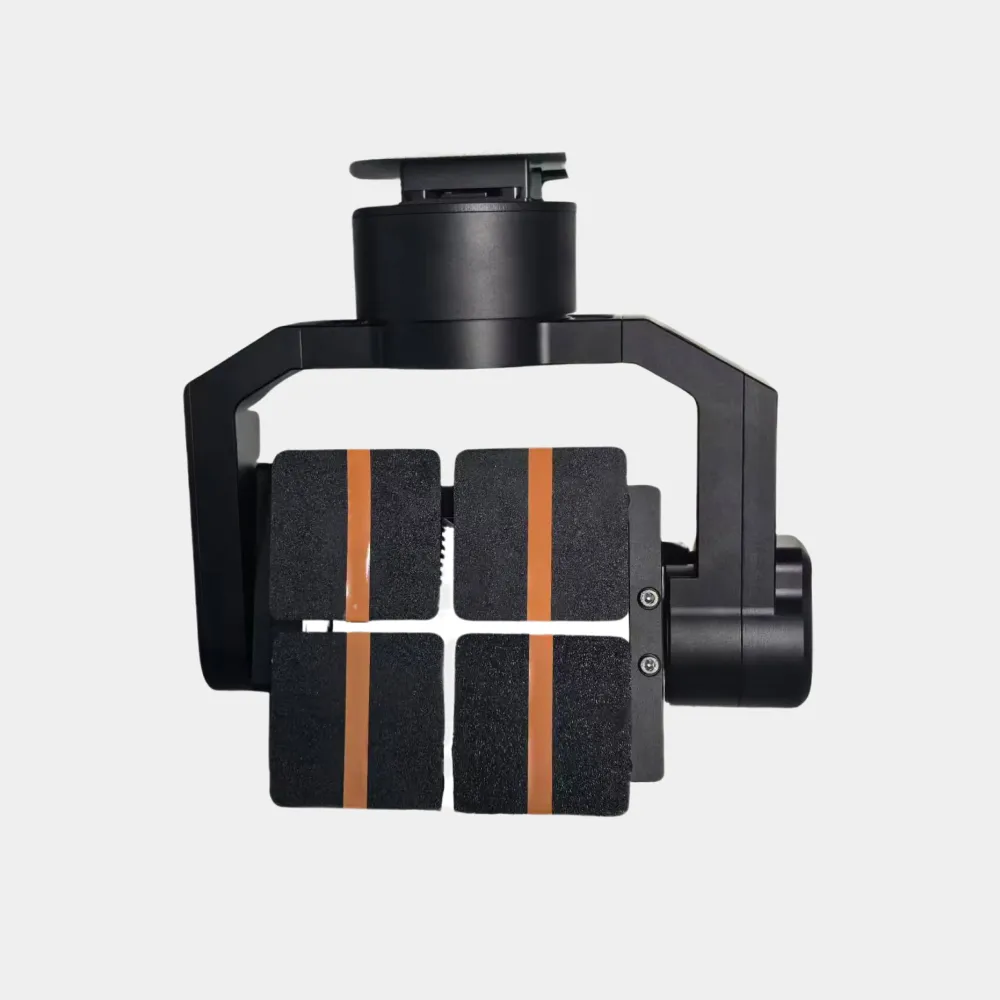

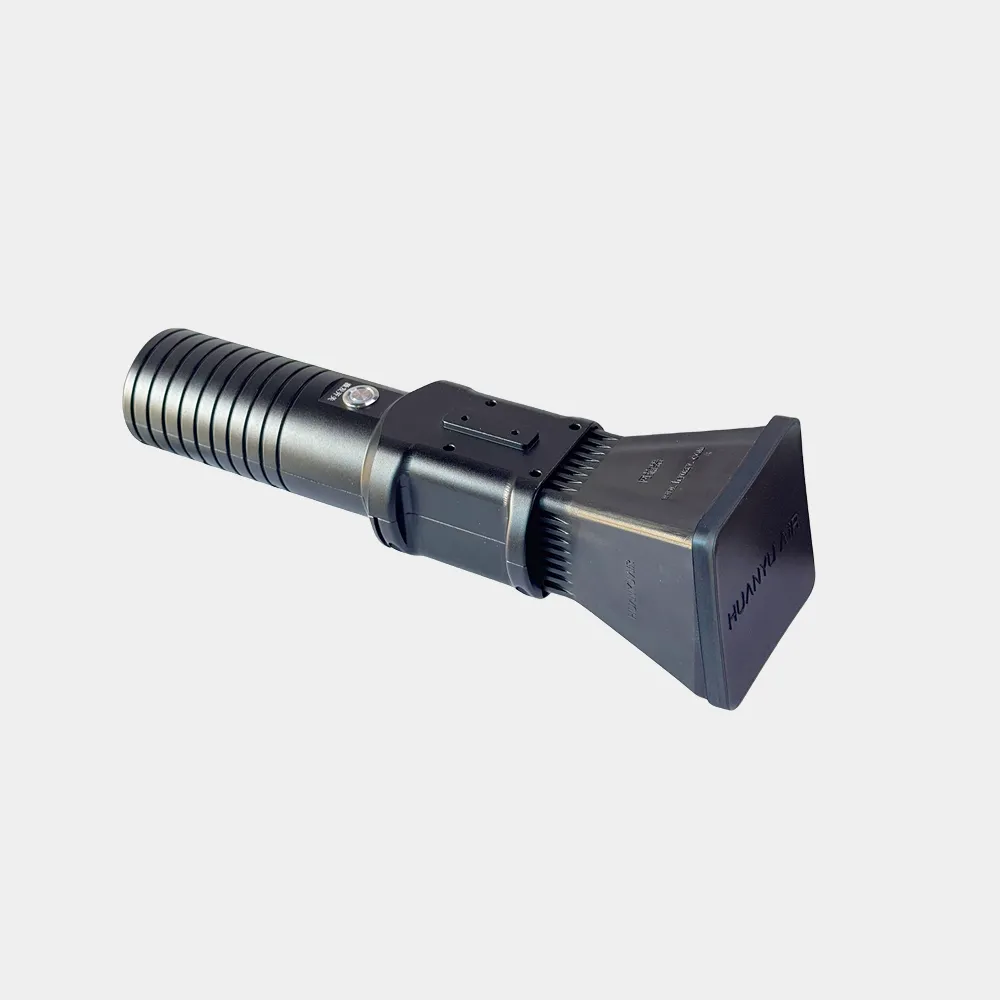

The UAV net capture payload supports different mounting configurations for compatible drones, unmanned vehicles and robotic platforms. Handheld, twin-bracket, gimbal-stabilized and multi-level mounting options are shown in the source materials. Select the mounting configuration according to the aircraft structure, center of gravity, control interface and intended recovery workflow.
Nylon Net for Controlled Recovery
The system uses a high-strength nylon net with a 20cm mesh size. The source specification lists an effective capture distance of 10-20m and optional net areas of 3.3 x 3.3m or 5 x 5m. PWM and switching power-supply control are supported. Confirm the net configuration, launch direction, aircraft control logic and recovery area before operation.

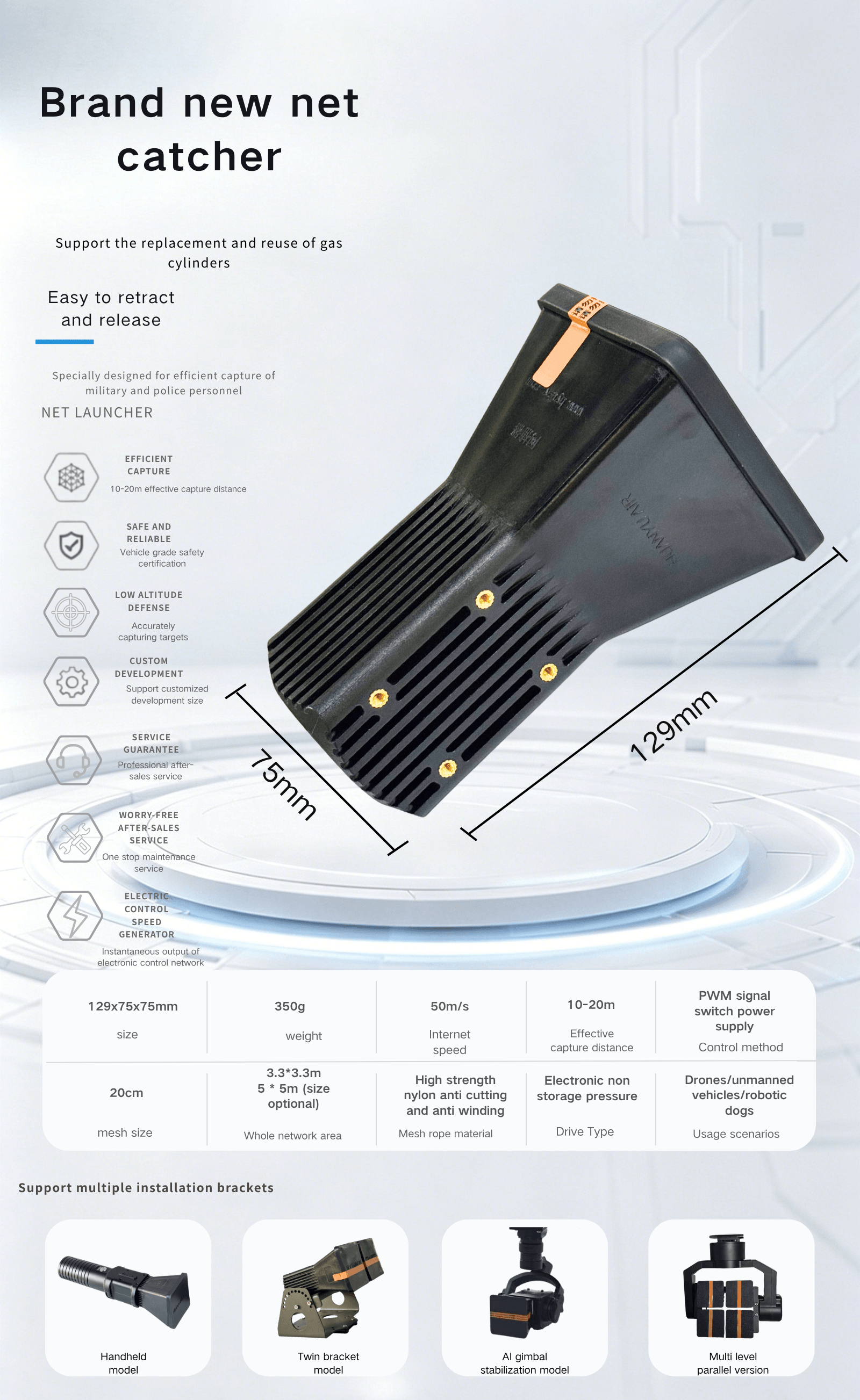

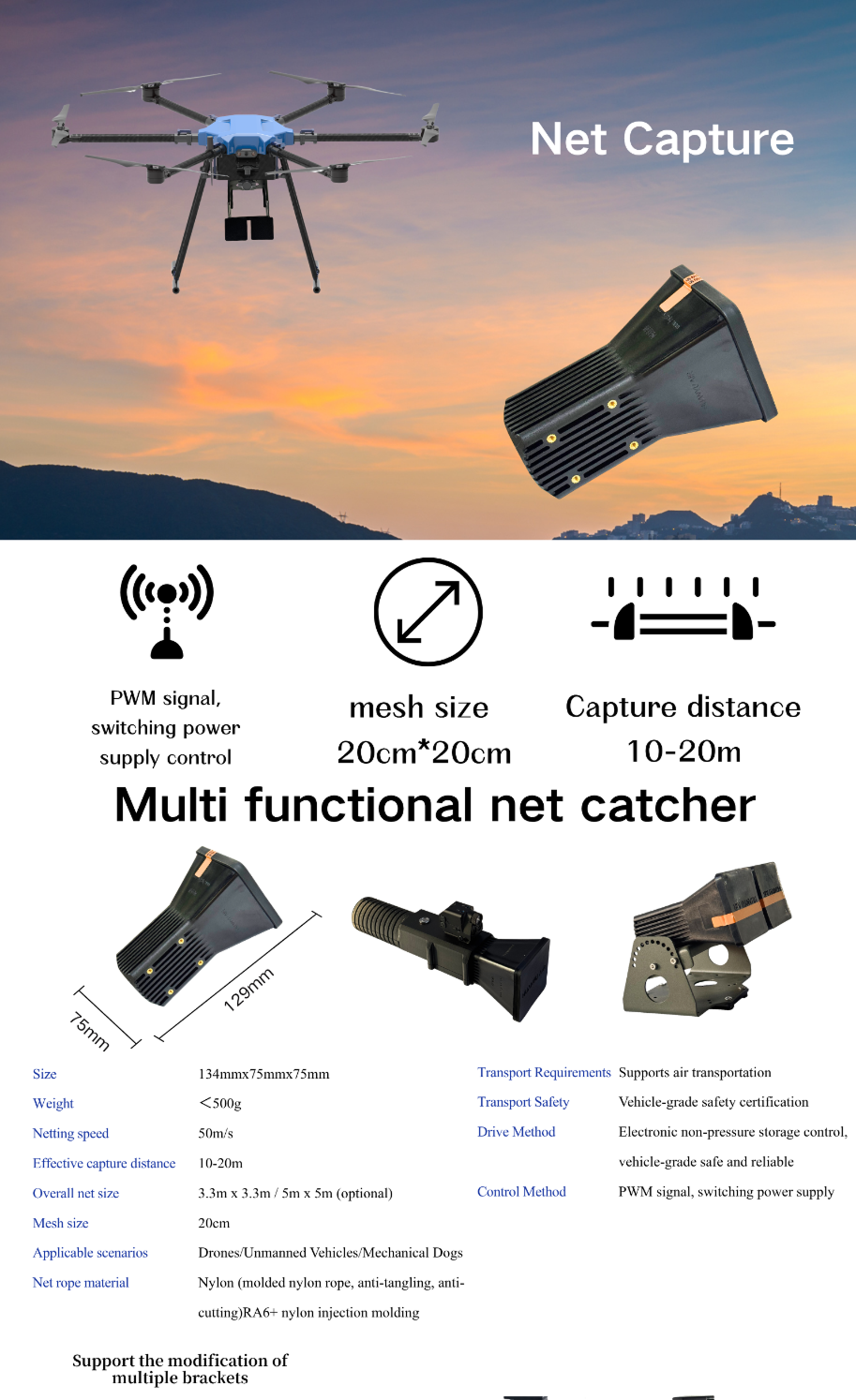

Technical Parameters
· Product Type: UAV net capture payload
· Net Rope Material: High-strength nylon
· Mesh Size: 20 cm
· Effective Capture Distance: 10-20 m
· Optional Net Area: 3.3 x 3.3 m or 5 x 5 m
· Netting Speed: 50 m/s
· Control Method: PWM signal and switching power-supply control
· Drive Type: Electronic non-pressure storage control
· Applicable Platforms: Drones, unmanned vehicles and robotic systems
· Mounting Options: Handheld, twin-bracket, gimbal-stabilized and multi-level configurations
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Flexible Net Capture Configuration
· UAV net capture payload for controlled drone recovery
· High-strength nylon net material
· Mesh size: 20 cm
· Effective capture distance: 10-20 m
· Netting speed: 50 m/s
· Optional net area: 3.3 x 3.3 m or 5 x 5 m
· PWM and switching power-supply control
· Multiple mounting configurations available
Packaging and Shipping
· Confirm the selected net area, mounting configuration and control method before quotation.
· Confirm whether the product includes the net, mounting bracket, control components or only the launcher body.
· Final package contents, transport method and shipping requirements should be confirmed with RAYI.
· Storage, transport and operation should follow applicable local safety and aviation regulations.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Operation Notes
· Confirm the UAV payload capacity, mounting interface and center-of-gravity requirements before installation.
· Confirm PWM and switching power-supply control compatibility before wiring and system testing.
· Use only in controlled, authorized areas with suitable recovery space and clear airspace.
· Keep people, manned aircraft and unrelated equipment outside the capture and net-deployment area.
· Confirm the selected net size and capture distance before operation; actual performance depends on platform speed, target movement and environmental conditions.
· Only trained and authorized personnel should install, test and operate the UAV net capture payload.
