The UAV Window Breaker Rescue Payload is a controlled emergency-access tool for compatible unmanned aerial vehicles, ground robots and other approved rescue platforms. It uses an aircraft-aluminum and stainless-steel structure with a four-point positioning installation method and optional quick installation. The module measures 238 x 164 x 90 mm and has a net weight of 1.8 kg. It supports DC 24-60V working voltage and PWM, SBUS or TTL control. The source specification lists a recommended breaking distance of 1-15 m, laser indication distance of 10-50 m and compatibility with standard tempered glass. It is intended for authorized rescue, firefighting and emergency-access operations. Confirm the aircraft interface, control system and operating environment before integration.
Product Type
UAV Window Breaker Rescue Payload
Controlled Emergency Window Access
Lightweight Four-Point Installation

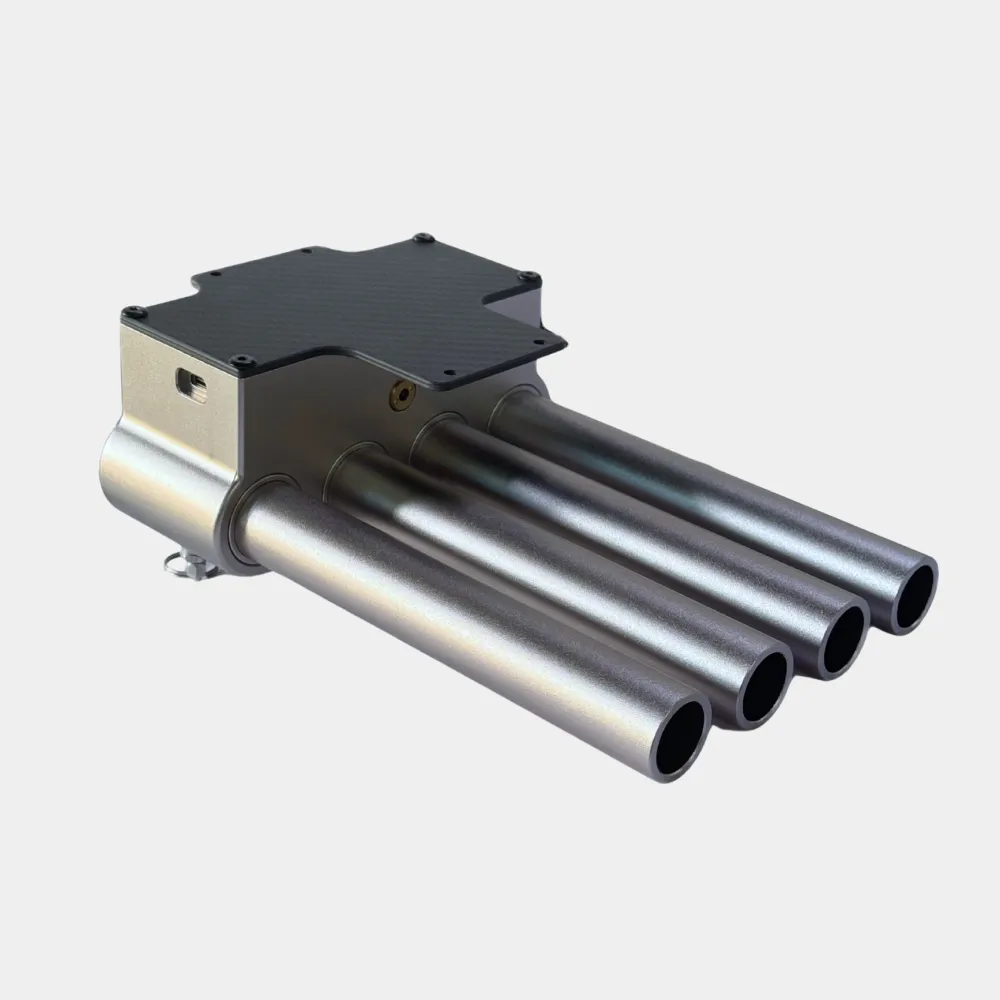

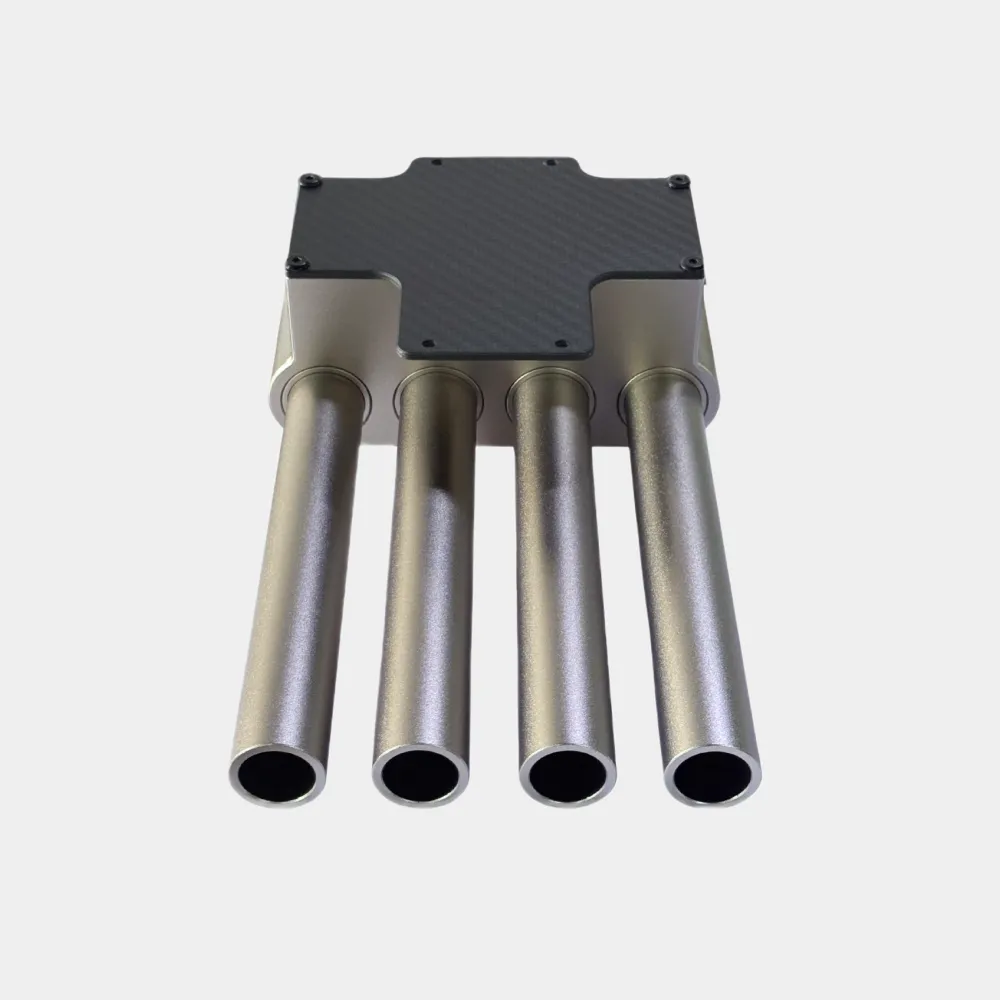

The UAV window breaker payload uses aircraft aluminum and stainless steel for a compact rescue-access system. Its four-point positioning structure supports installation on compatible unmanned aircraft and robotic platforms, while the optional quick-install design helps simplify equipment preparation. The module measures 238 x 164 x 90 mm and weighs 1.8 kg. Confirm the mounting interface and platform payload limit before installation.
Remote Control for Emergency Access
The system supports DC 24-60V input and PWM, SBUS or TTL control for integration with compatible aircraft or robotic control systems. The source specification lists a recommended breaking distance of 1-15 m and laser indication distance of 10-50 m. Use only on approved standard tempered-glass targets in controlled rescue or emergency-response operations.

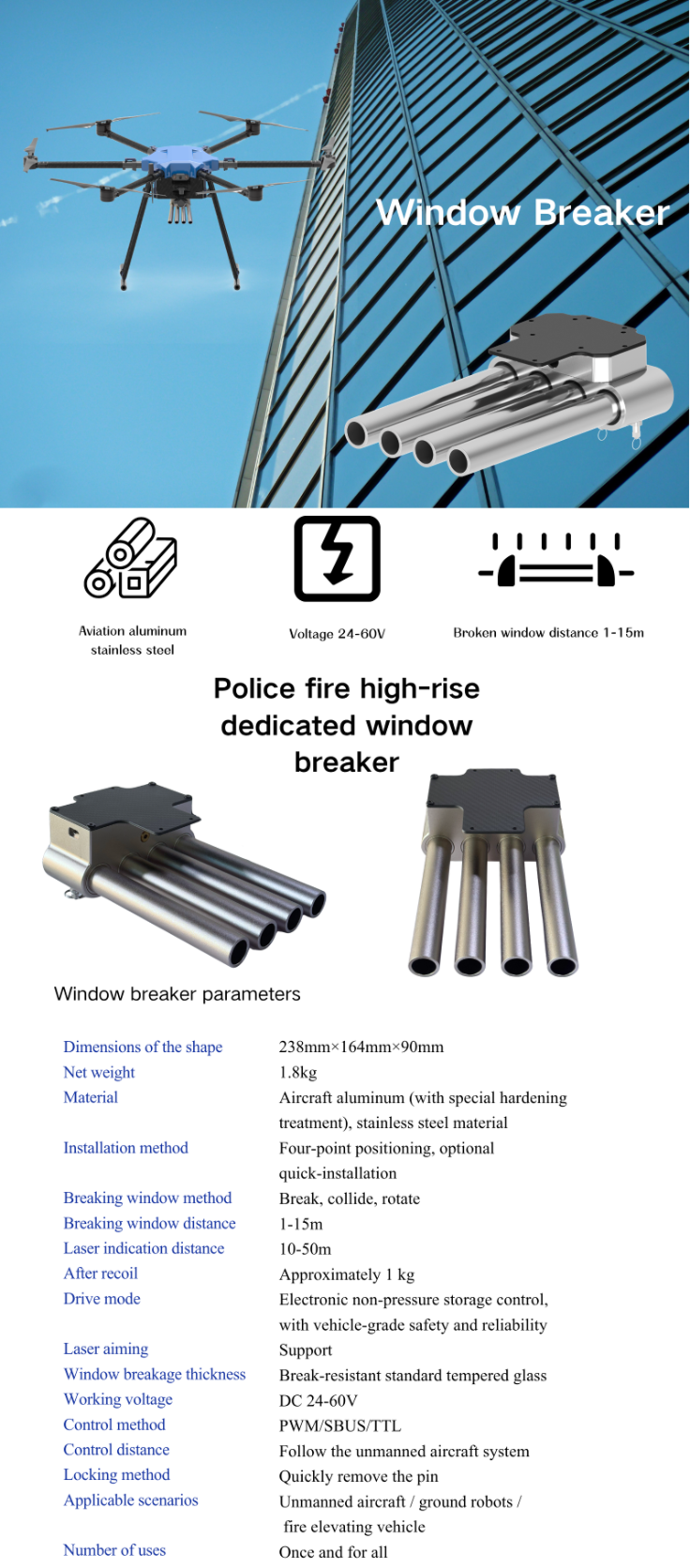

Technical Parameters
· Product Type: UAV window breaker rescue payload
· External Dimensions: 238 x 164 x 90 mm
· Net Weight: 1.8 kg
· Material: Aircraft aluminum with hardening treatment and stainless steel
· Installation Method: Four-point positioning with optional quick installation
· Breaking Method: Break, collide and rotate
· Recommended Breaking Distance: 1-15 m
· Laser Indication Distance: 10-50 m
· Working Voltage: DC 24-60V
· Control Method: PWM, SBUS and TTL
· Drive Mode: Electronic non-pressure storage control
· Target Material: Standard tempered glass
· Locking Method: Quick pin removal
· Applicable Platforms: Unmanned aircraft, ground robots and approved rescue vehicles
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Emergency Window Access System
· Compact UAV window breaker rescue payload
· Dimensions: 238 x 164 x 90 mm
· Net weight: 1.8 kg
· Aircraft aluminum and stainless-steel structure
· Four-point positioning with optional quick installation
· Working voltage: DC 24-60V
· PWM, SBUS and TTL control support
· Recommended breaking distance: 1-15 m
Packaging and Shipping
· Confirm the target platform, mounting interface and control method before quotation.

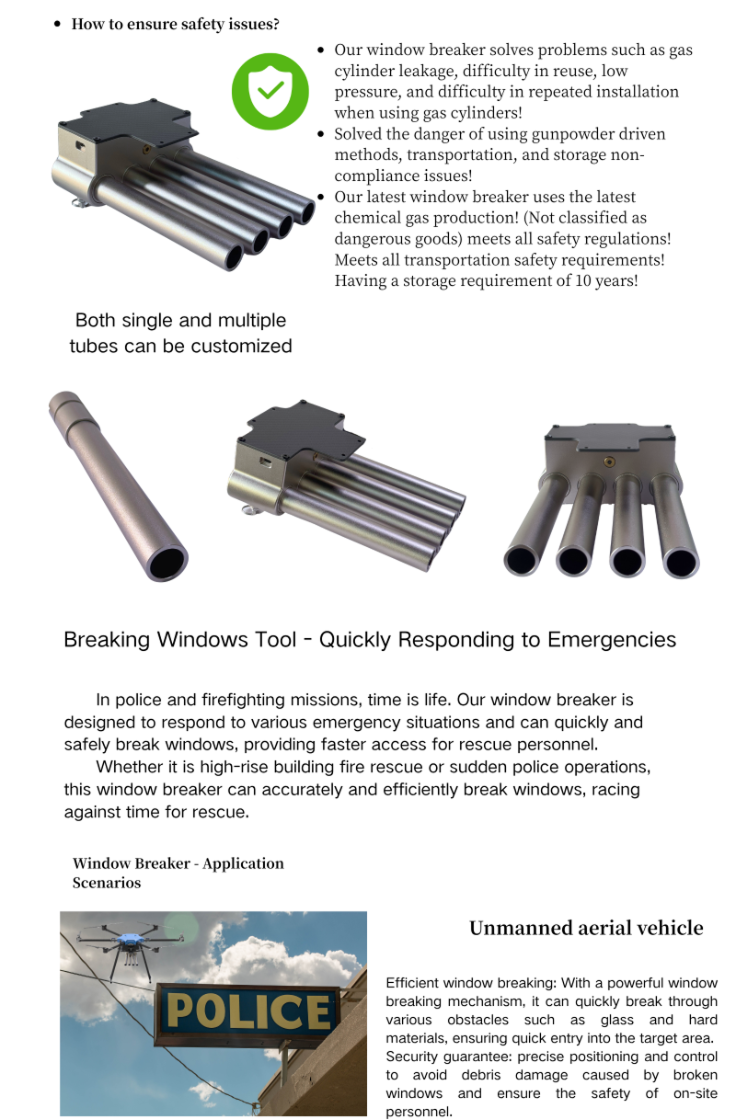

· Confirm whether the product is supplied as a complete multi-tube assembly or with customized tube configuration.
· Final package contents, transport method and shipping requirements should be confirmed with RAYI.
· The product should be transported, stored and operated by trained and authorized personnel.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Rescue-Operation Notes
· Confirm the UAV or robotic-platform payload capacity, mounting interface and center of gravity before installation.
· Confirm DC 24-60V power compatibility and PWM, SBUS or TTL control compatibility before wiring.
· Use only on approved and legally authorized tempered-glass targets in controlled rescue or emergency-response operations.
· Keep people and unprotected equipment outside the operating area during aiming, testing and window-breaking operations.
· Do not rely on the product for every glass type; confirm the target material and thickness before deployment.
· Only trained personnel should install, test and operate the UAV window breaker rescue payload.
