AeroMax AM30 Kit System-100V

AeroMax AM30 Kit System-100V

MAD AeroMax AM30 Kit is an integrated high-voltage UAV propulsion system kit, designed to deliver powerful, reliable, and highly efficient flight power for industrial-grade UAVs used in professional surveying and mapping, logistics and transportation, firefighting and rescue, as well as specialized operations. This kit has been meticulously optimized to ensure exceptional performance even under demanding conditions.

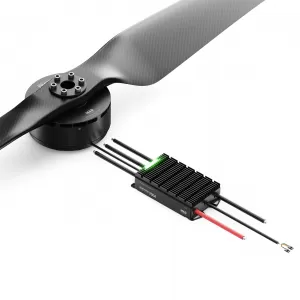

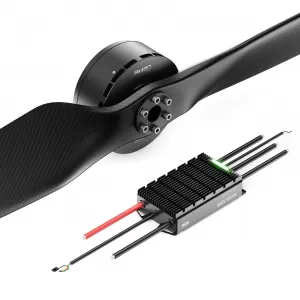

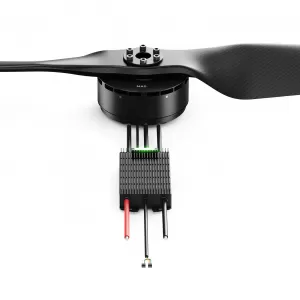

  • AM30 Prower Kit

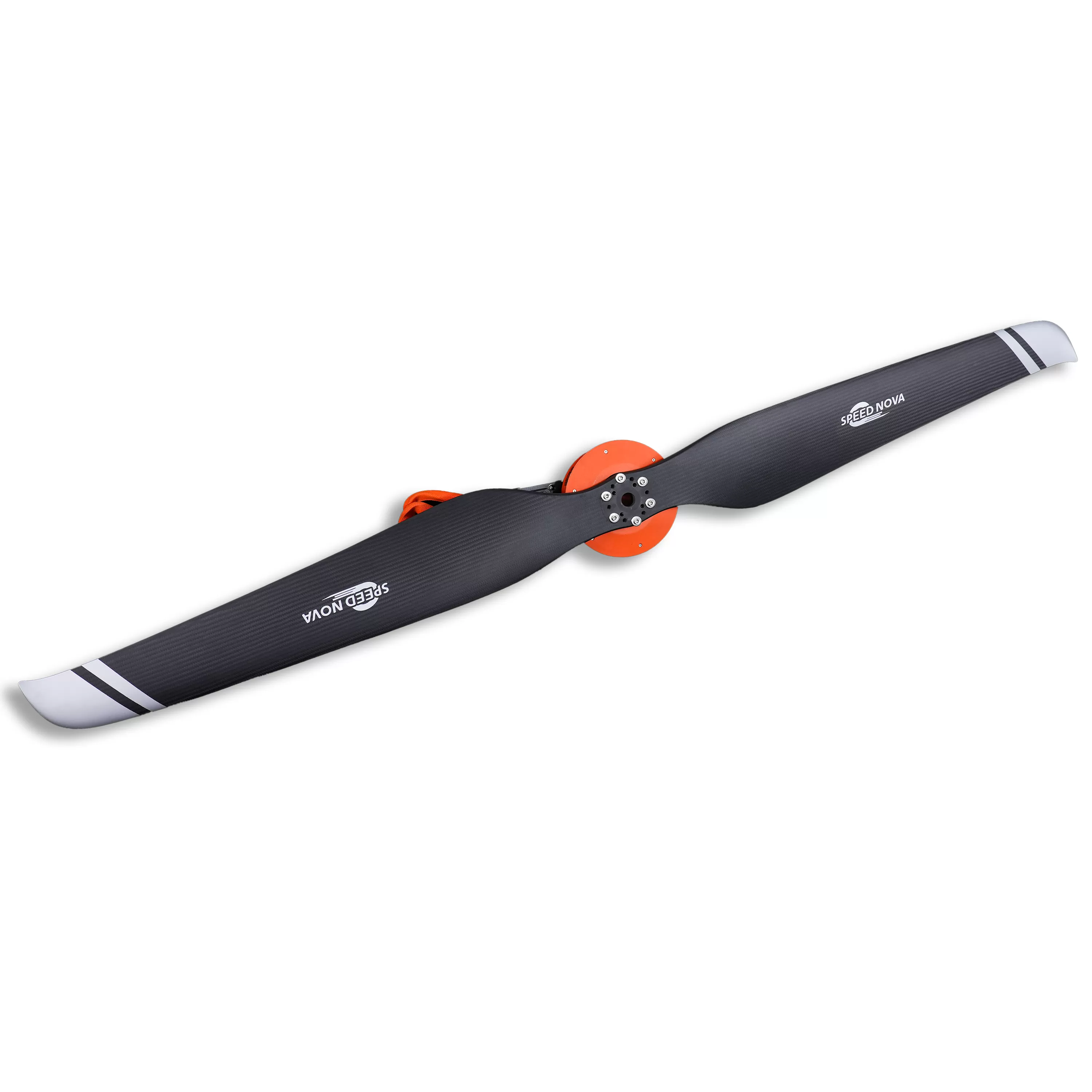

    with RAYI 52X19 in Propellers

Pruduct Description

动力套参数 Combo specification

产品型号 / Model   AM30-Kit

单轴推荐拉力 / Recommended takeoff weight per rotor  30kg

最大拉力 / Max Thrust  69.4 kg

推荐拉力力效 / Efficiency of recommended takeoff weight  7.2 gf/W

适配锂电池 / Lithium compatible  24S(Lipo)

使用环境温度 / Operating temperature  -20~50℃

动力套重量 / Weight  4000±100g

防护等级 / IP Degree  IP45

线号 | 电源线 / Wire number | Power wire Wire  8AWG / 170 mm

信号线 / Signal Wire  6pin/460 mm

Product Description

AeroMax AM30 Kit System-100V

AeroMax AM30 Kit System-100V

AeroMax AM30 Kit System-100V

Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

AeroMax AM30 Kit System-100V

If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
