Power Your Drone with Precision
Power Your Drone with Precision
Ultra-Fast and Smooth ESC Response

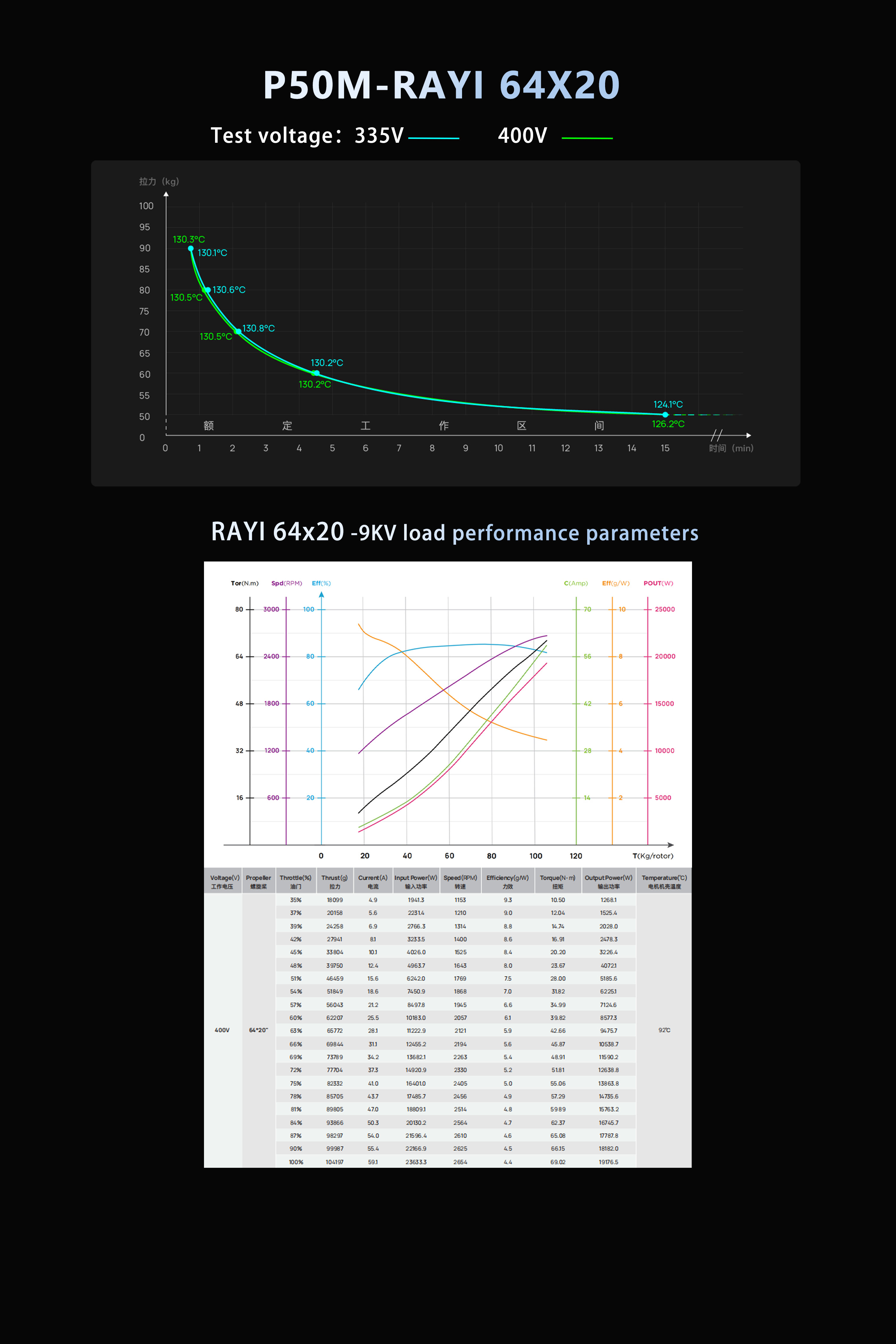

Technical Specifications & Thrust Data

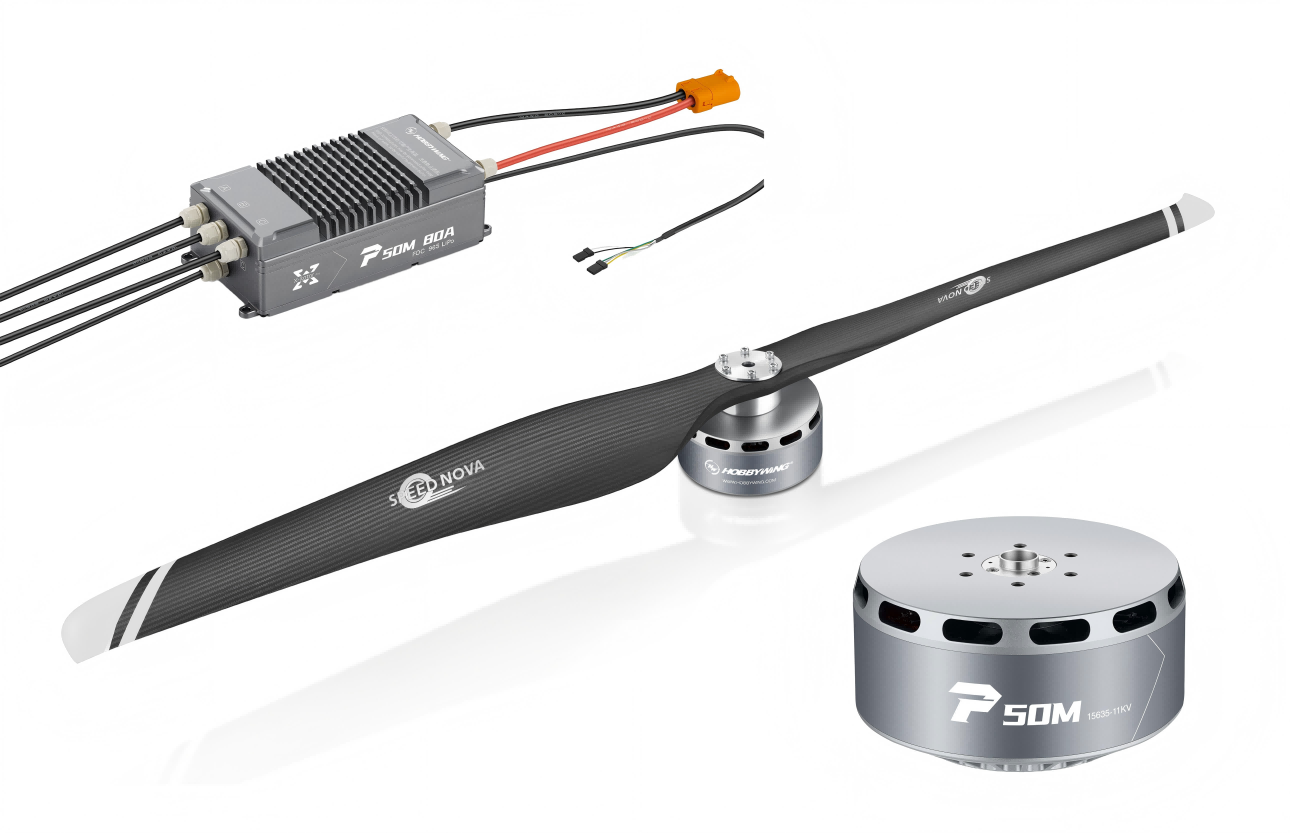

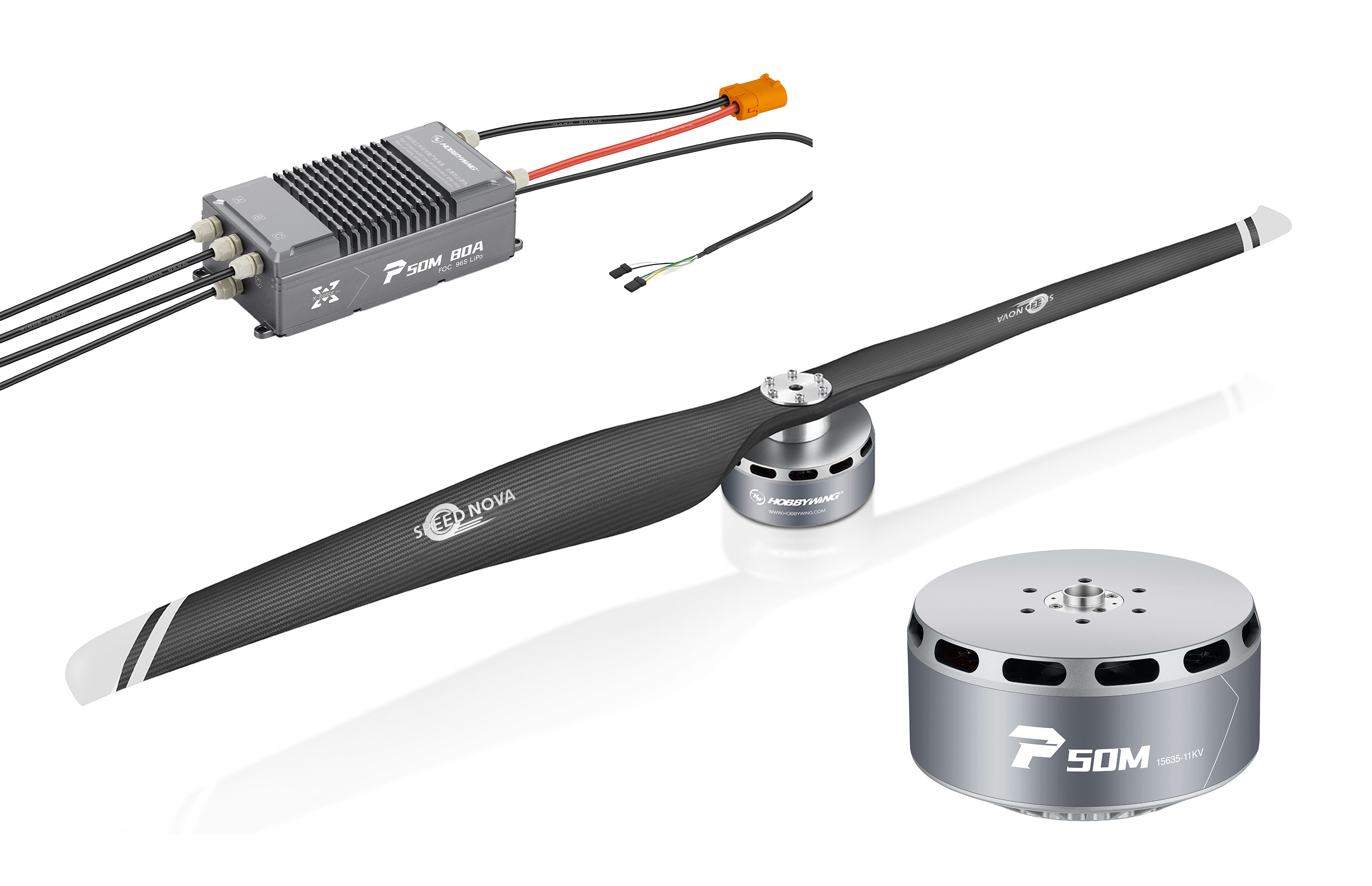

P50M P50M high-voltage brushless motor
compatible with RAYI 57x19 64x20 carbon fiber propeller
Pruduct Description

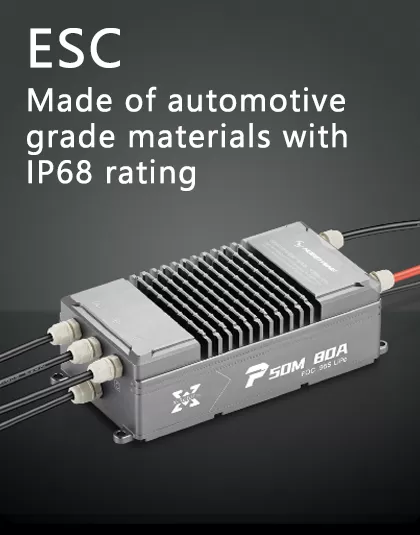

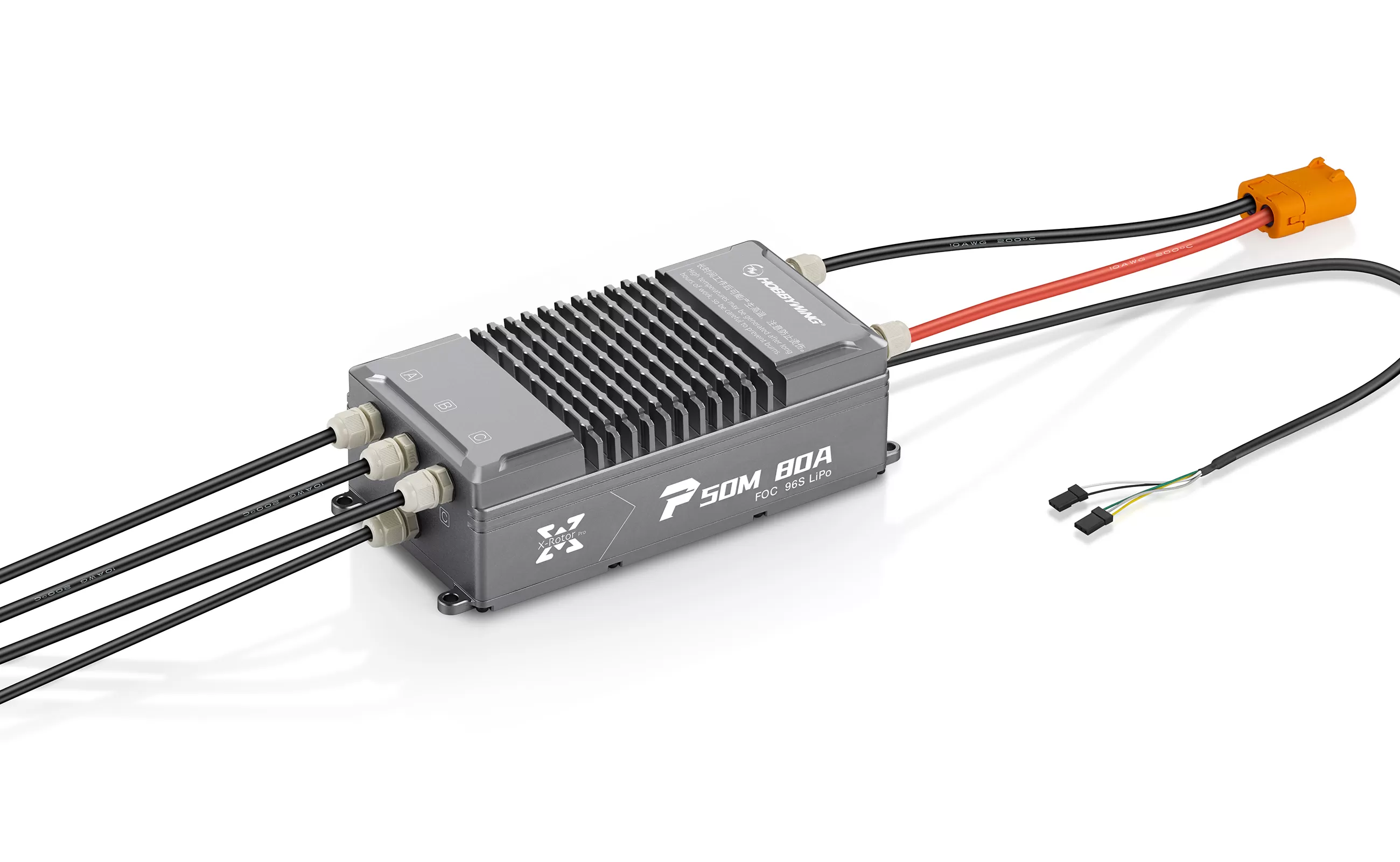

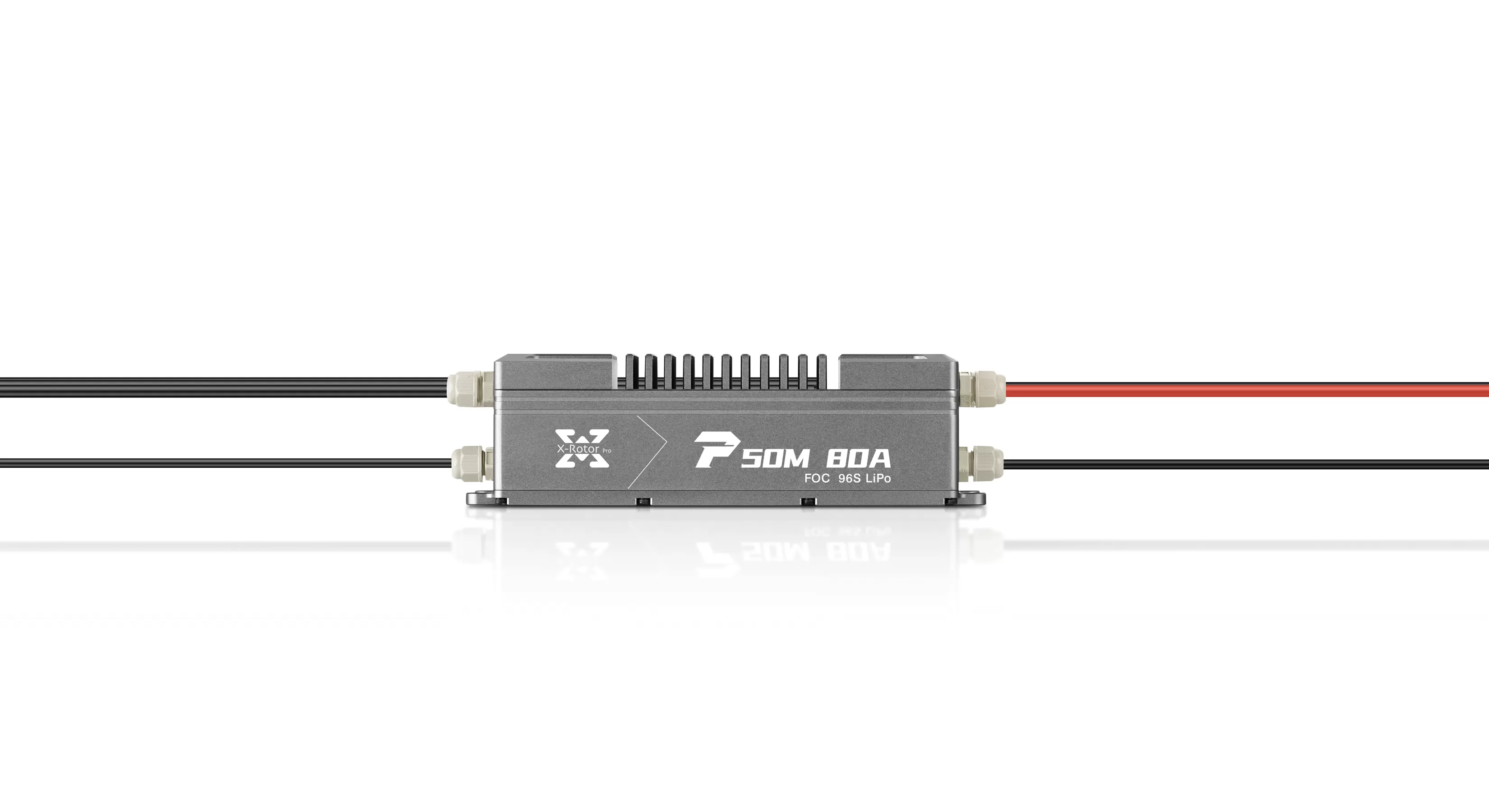

ESC：Using automotive grade materials to produce IP68 waterproof rating
| Product Model | 80A-FOC |
| Contact Method | UAVCAN / RS485 |

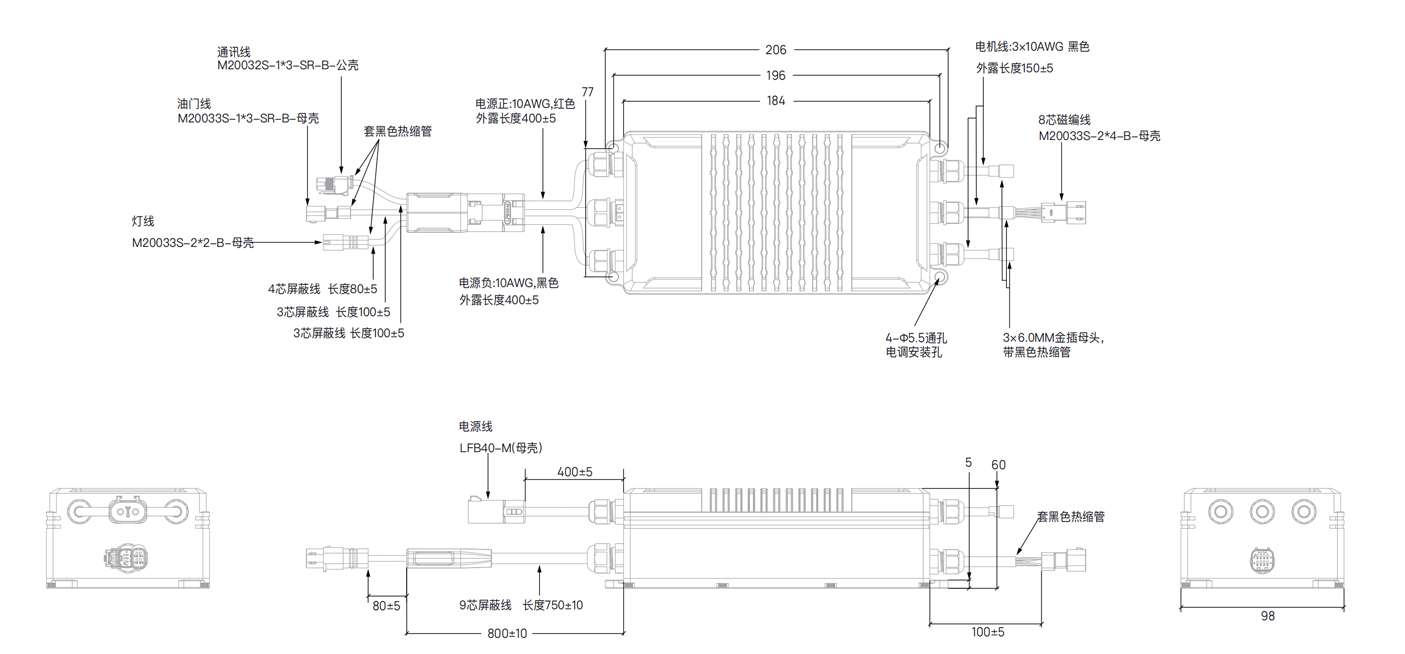

| Electric tuning size | 225.6*98*60mm |
| Weight (including thread) | 1200g |
| Maximum current | 80A（3s） |
| Continuous current | 40A |
| Rated input power of ESC | 12KW |
| Protection grade | IP67 |
| Dual throttle | CAN+RS485 / CAN+PWM / RS485+PWM |
| PWM pulse width (calibration not supported) | 1100~1940μs |
| black box | 2~48h |

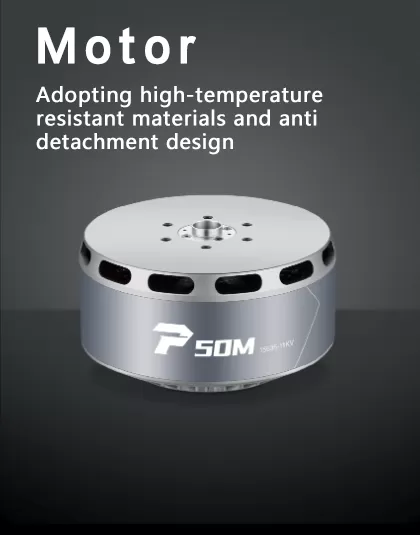

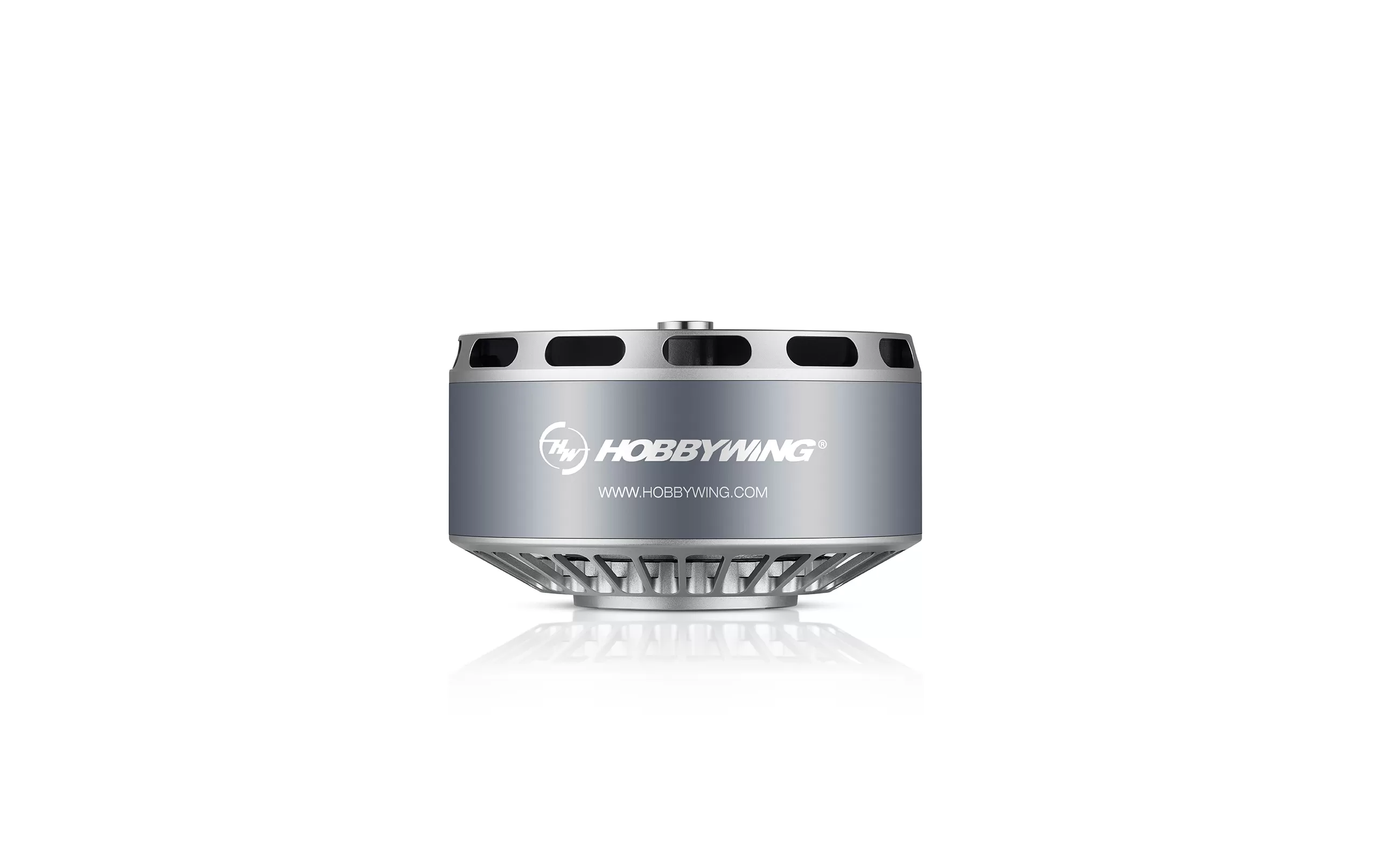

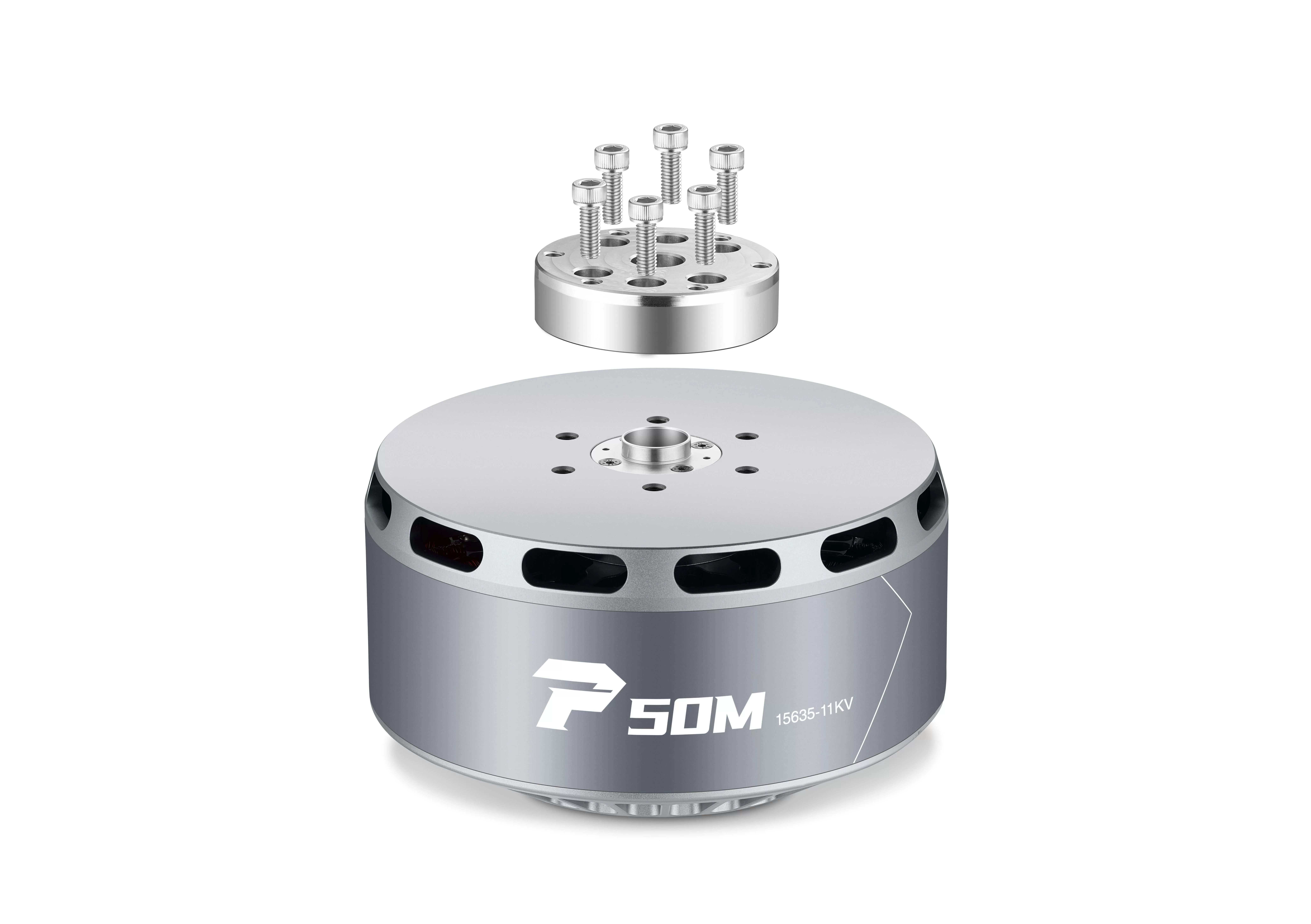

P50M Motor
| 产品型号 | 15635 |
| KV值 | 9KV / 11 KV |
| 电机外直径 | Φ167.1*H100.5mm |
| 槽极数 | 36N 42P |
| 防尘防水等级 | IPX5 |
| 电机重量(含线) | 4250±30g |
| 电机温度信号 | 标配 |
| 电机位置传感器信号 | 标配 |

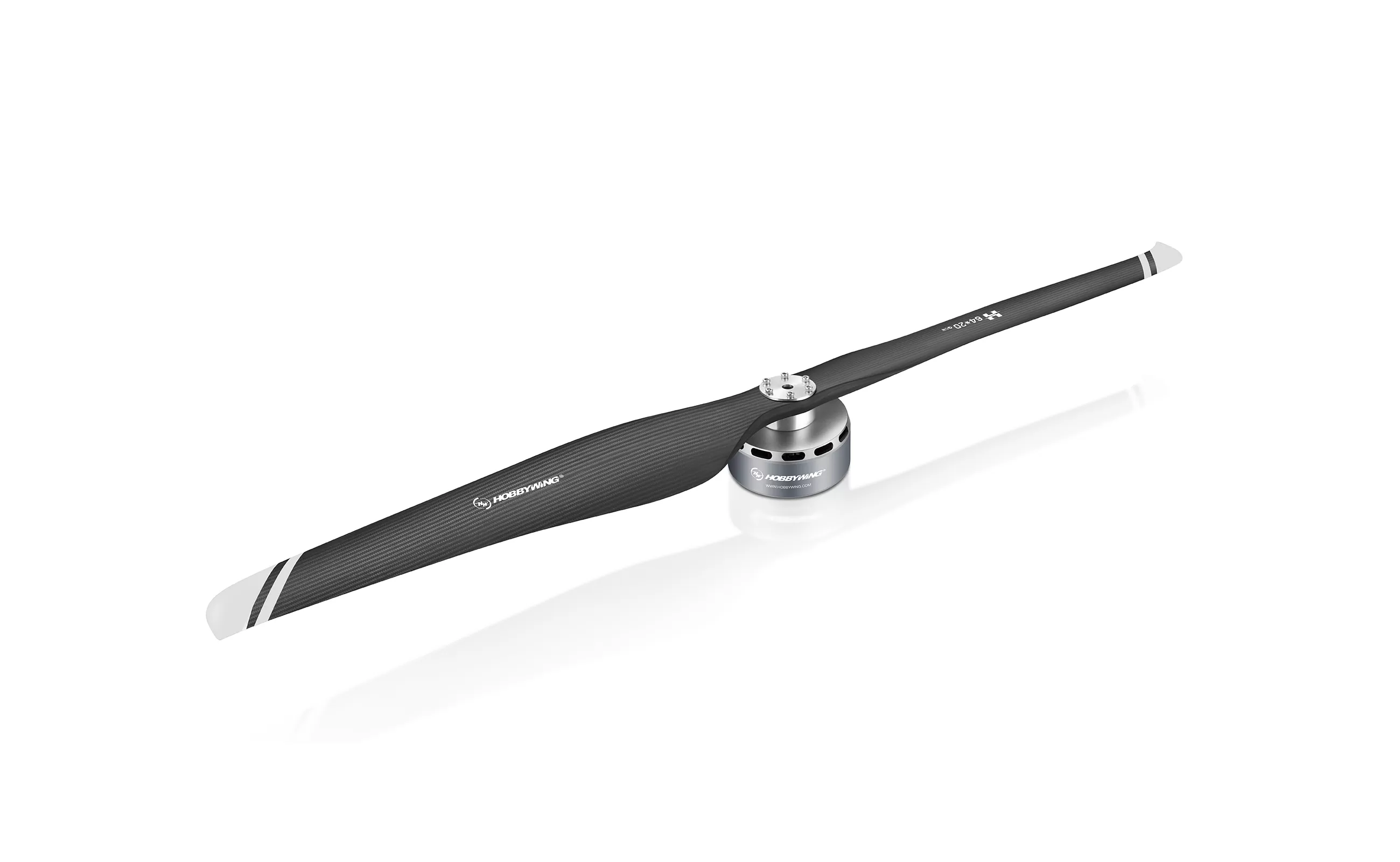

RAYI CF prop with drone

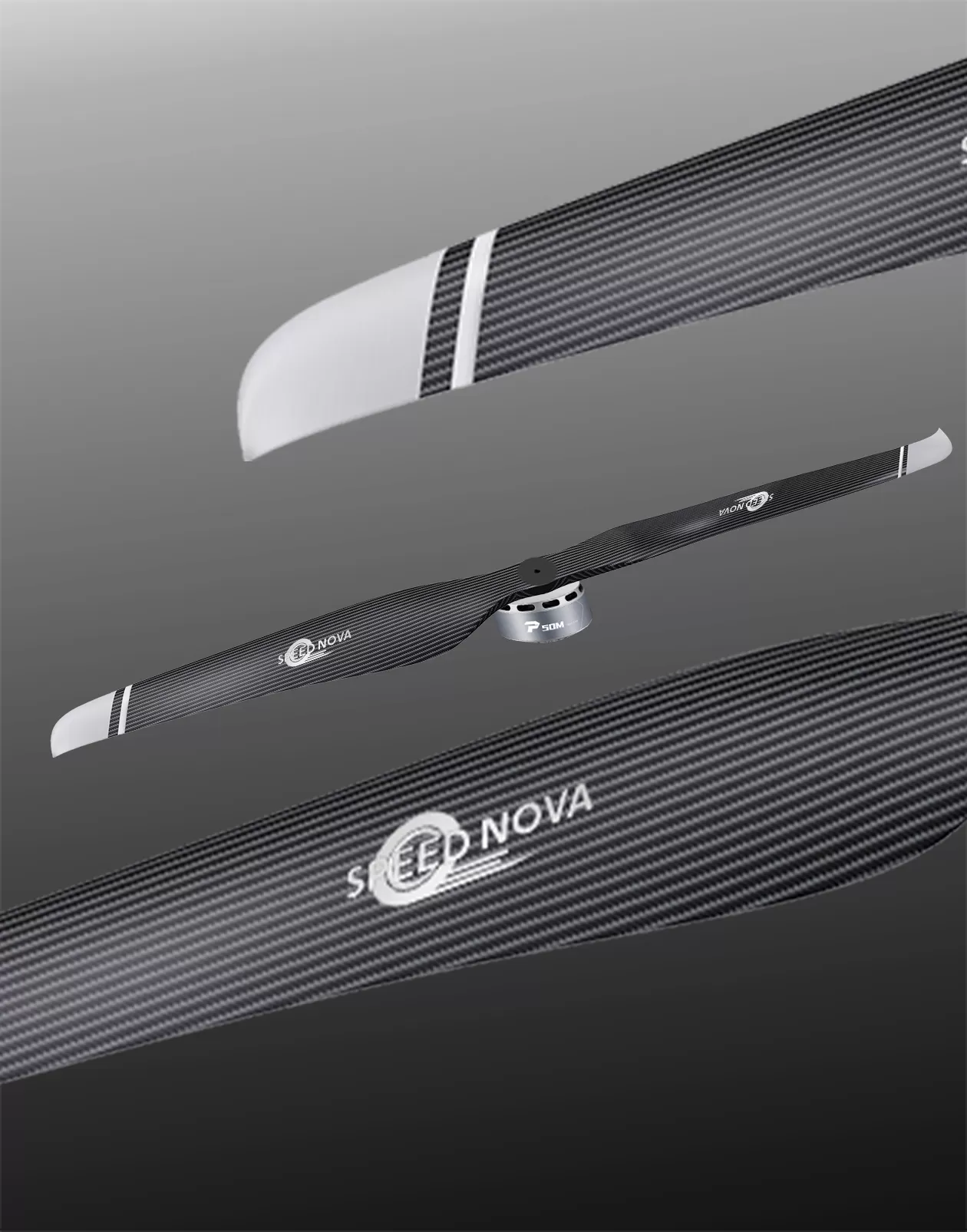

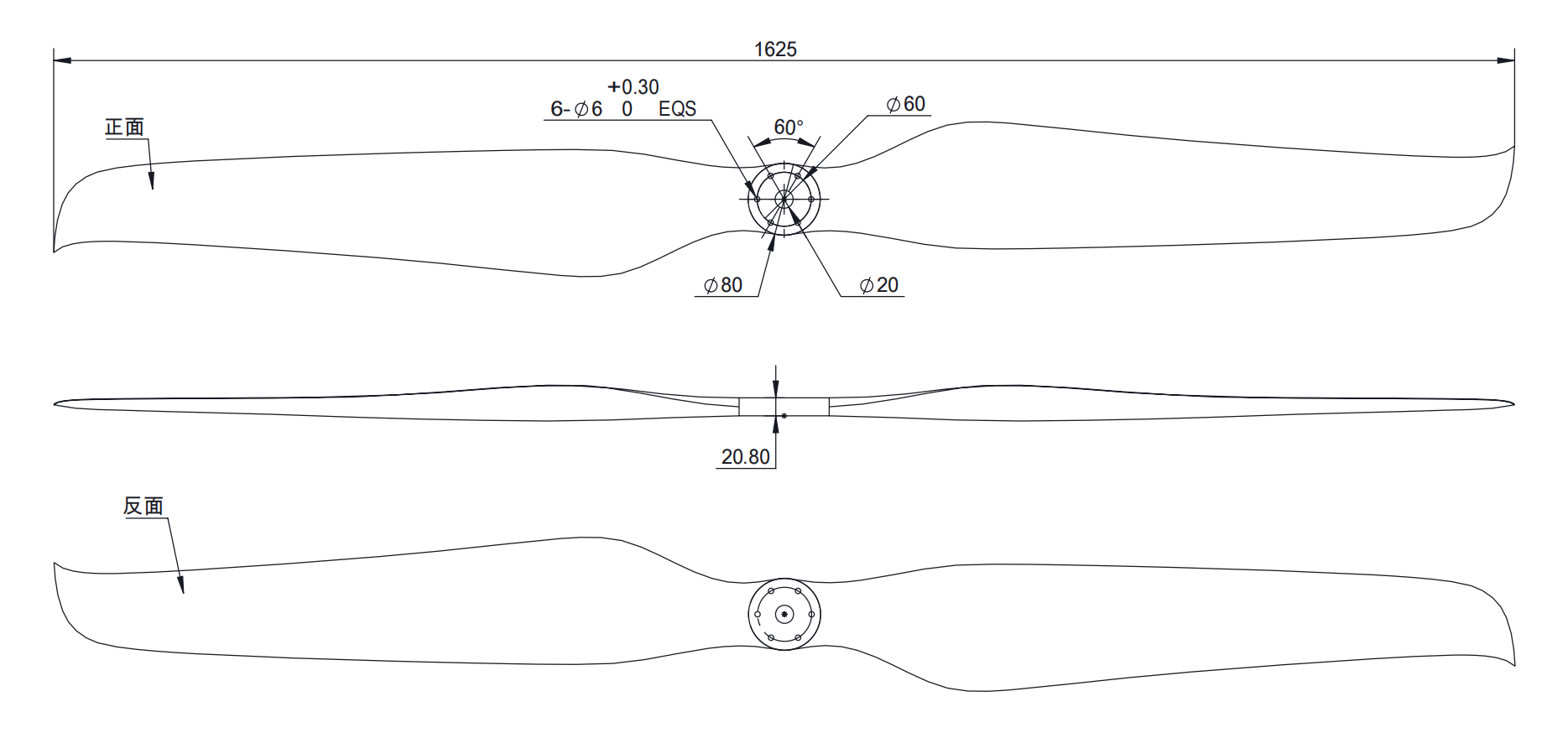

RAYI carbon fiber propeller
| 产品型号 | IIKE-64X20Y/IIKE-57X19Y |
| 单支重量 | 860g / 785g |
| 主要材质 | CF Fixed wing propeller |
| 安装尺寸 | D60-6*M6， D20 |
Pruduct Description
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Packaging & Shipping
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
