MAD M90C60 EEE Rotor

Designed for professional aerial photography, mapping, surveying, and exploration requiring long endurance, operating at 100S voltage.

Features maximum hollow-out design for ultra-light weight and rapid heat dissipation.

Incorporates a unique motor core design with 36N42P multi-slot and multi-pole configuration.

Utilizes 6061-T6 aviation aluminum alloy for higher strength, providing enhanced safety assurance.

Simulated magnetic flux density and magnetic containment ensure low energy consumption and high motor efficiency.

Equipped with durable, high-quality imported SKF bearings for more stable rotation and better impact resistance.

Employs high-performance, high-temperature resistant arc-shaped magnets, boosting performance by 5%

M96C60EEE

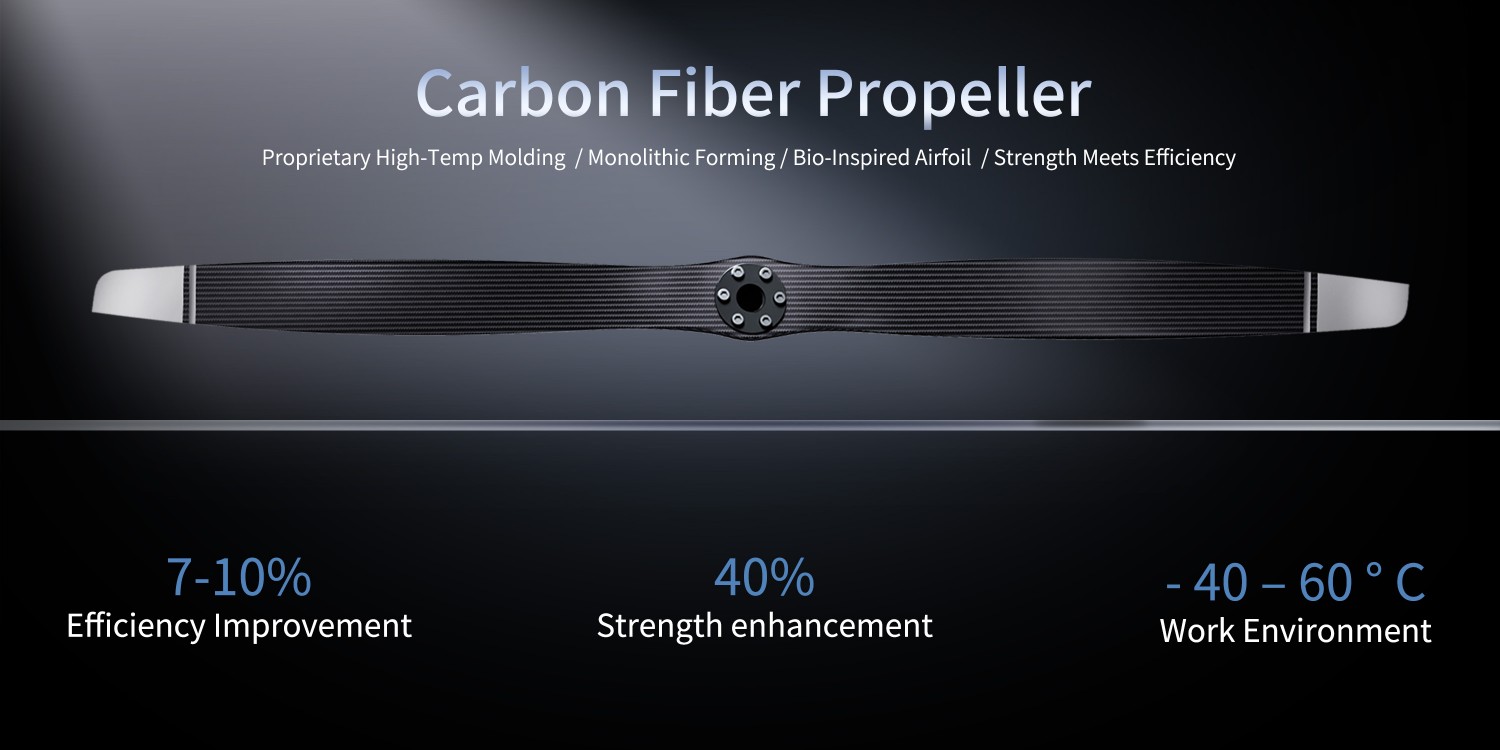

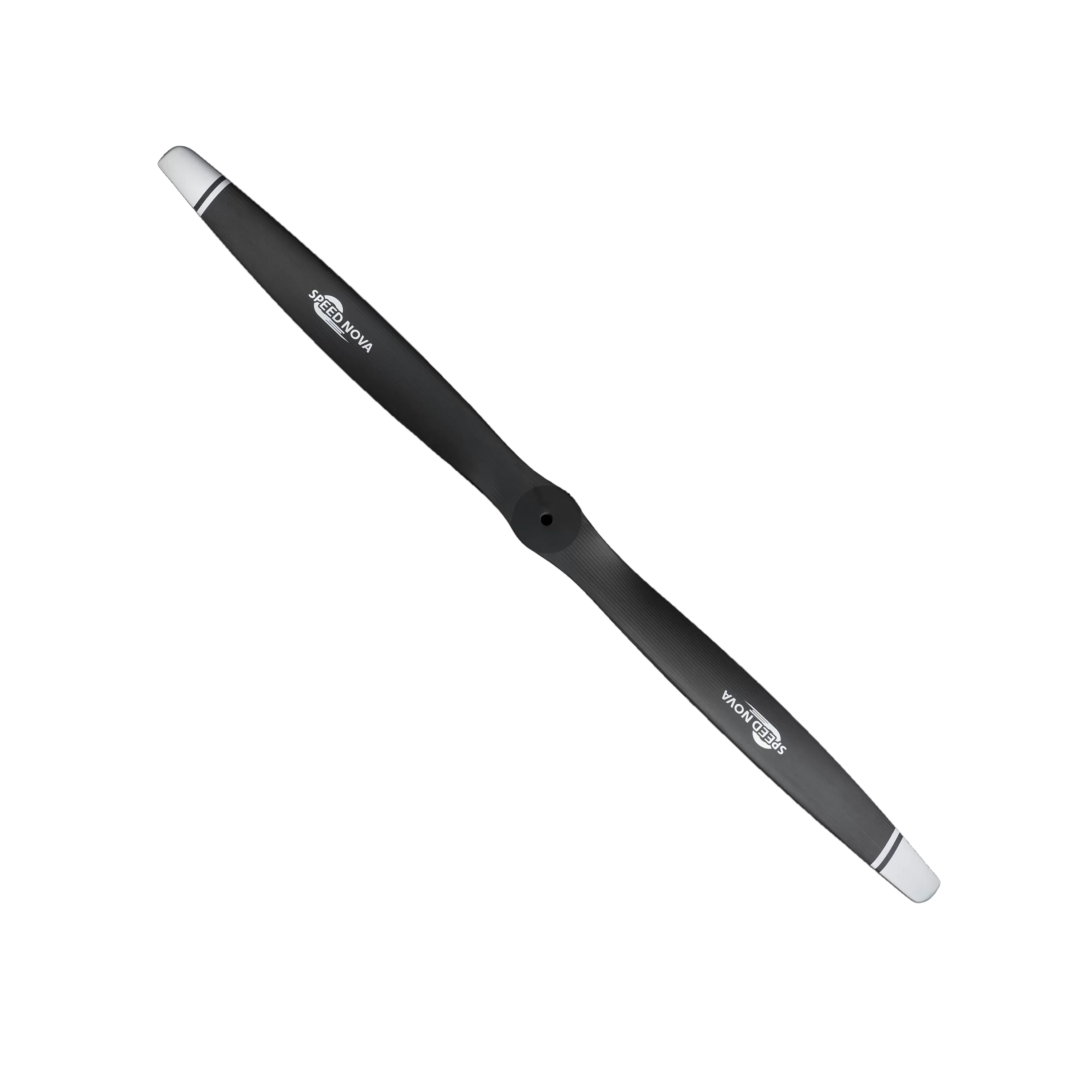

RAYI 72 in CF PROP

Inquire Now

If You have any Questions, Please Contact Us

Fill in the Demand Form

Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.

电机型号	MAD M90C60 EEE V1.0	极对数	21
定子铁芯	台湾 / 表面防锈处理	漆包线等级	220°C

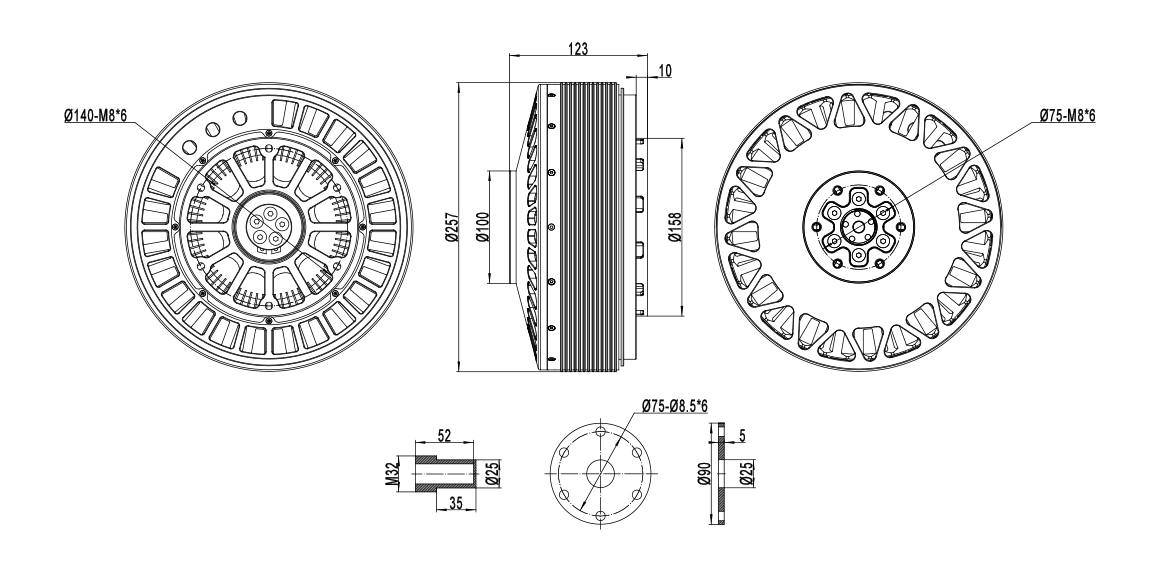

电机尺寸	D:257 × 123 mm	磁铁等级	180°C
防护等级	防雨	出线规格	250 mm (漆包线）
离心散热设计	自主散热	转子动平衡	≤20 mg
螺旋桨安装孔位	D:75 M8×6	电机动平衡	≤30 mg
轴径	IN: 35 mm	电机安装孔位	D:140 M8×6
轴承	SKF 6007ZZ *2	线圈耐压	1000 V

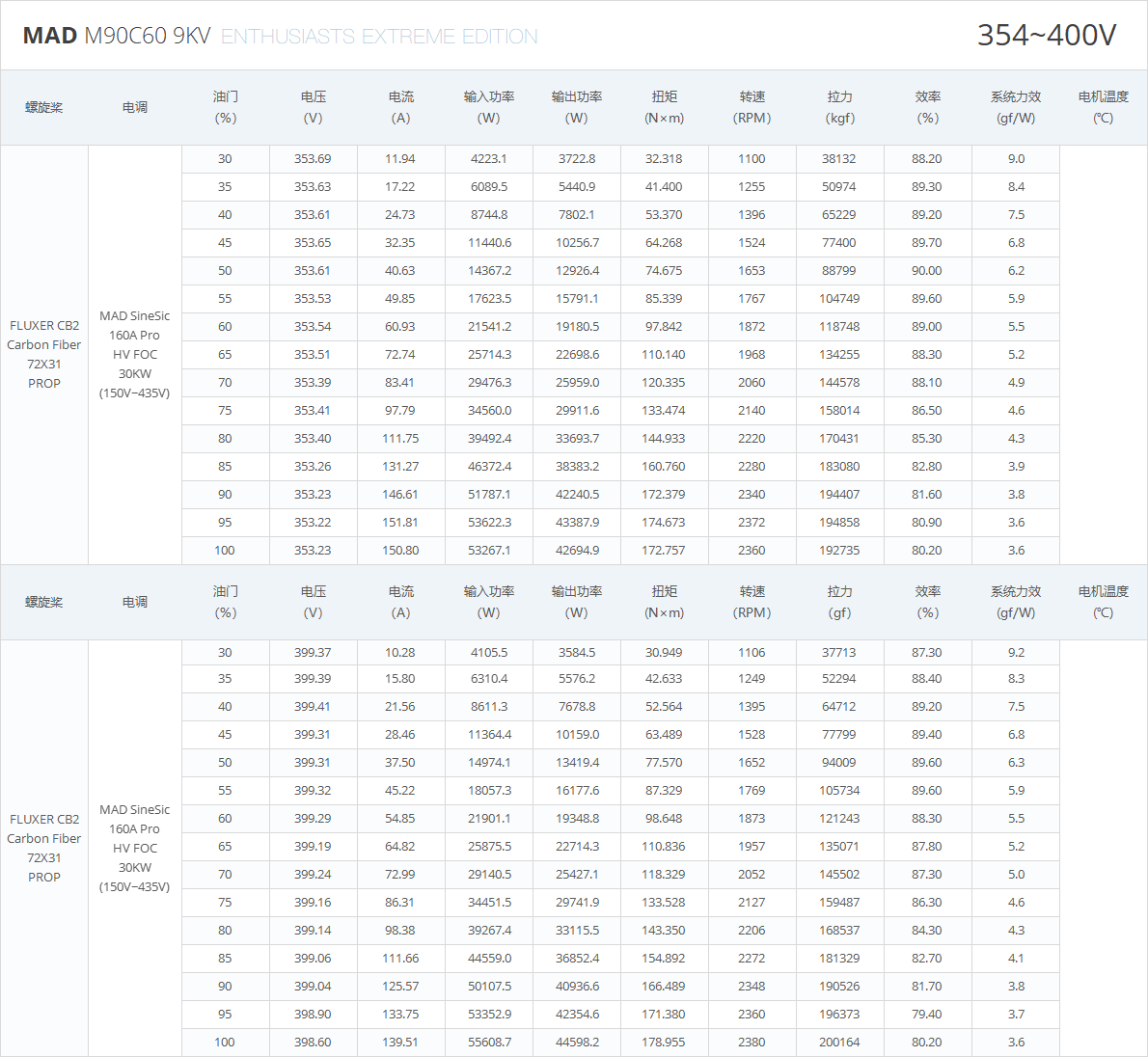

KV值			9 KV
工作额定电压			354~400V
空载电流			1.44A / 40V
相间内阻			40.5mΩ
电机重量			12.7 kg
盒装重量			-
最大电流			150.8 A
最大功率			55.6 KW
最大拉力			200.1 kg
最大扭矩			178.9 Nm
电调推荐			SineSic Pro 160A 30KW (150V~435V)

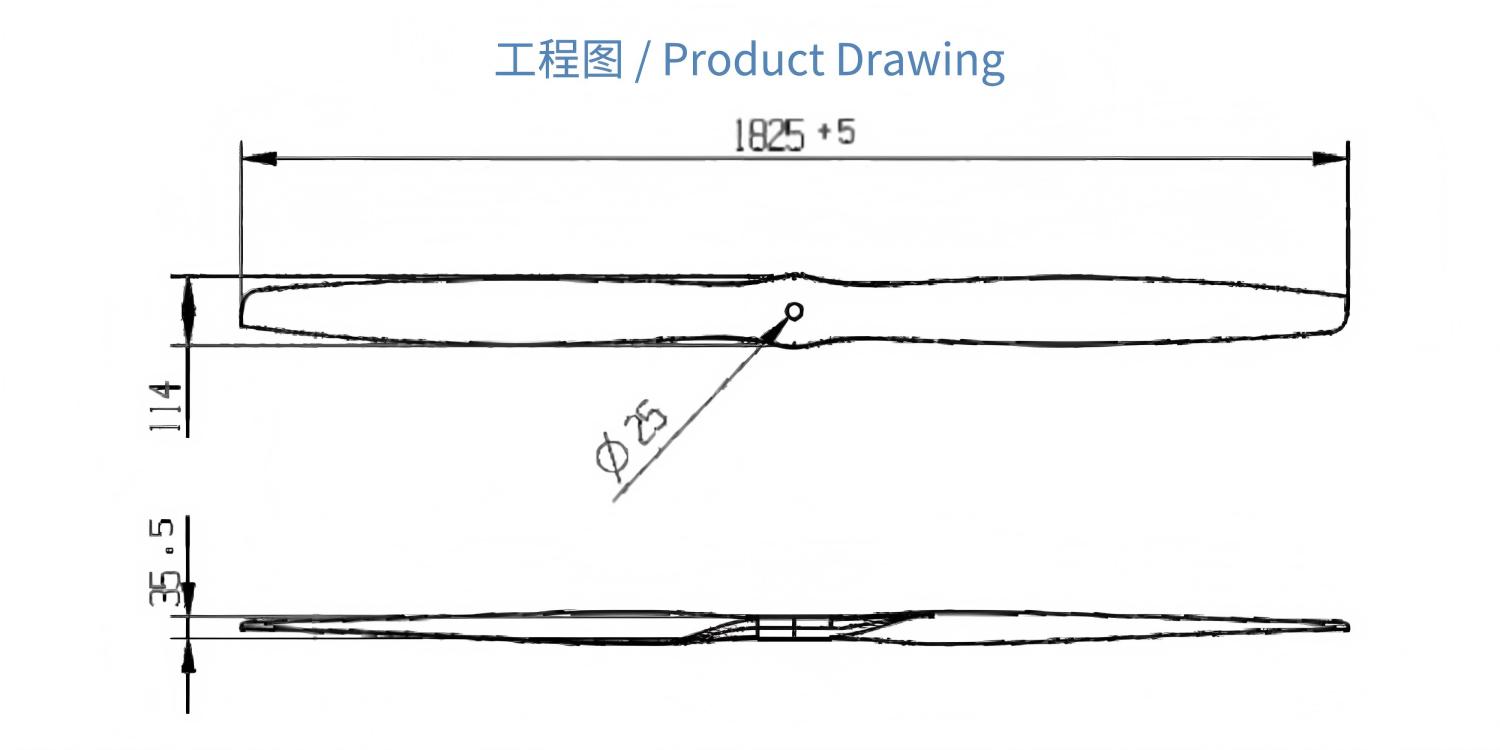

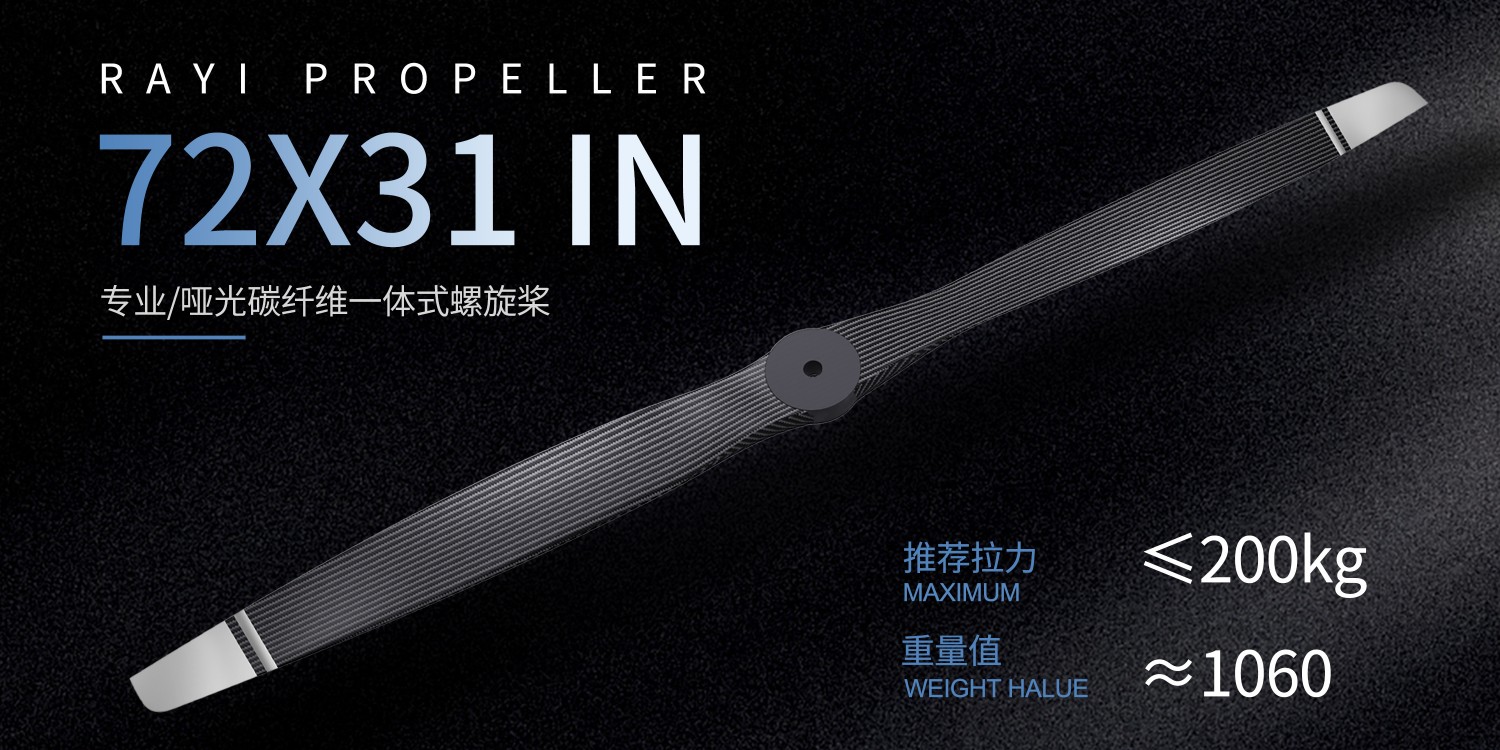

螺旋桨推荐			RAYI 72x31in
单机起飞重量推荐			70kg ~ 100kg
整机起飞重量推荐			400V-72”/ 4轴360kg, 6轴540kg, 8轴720kg
