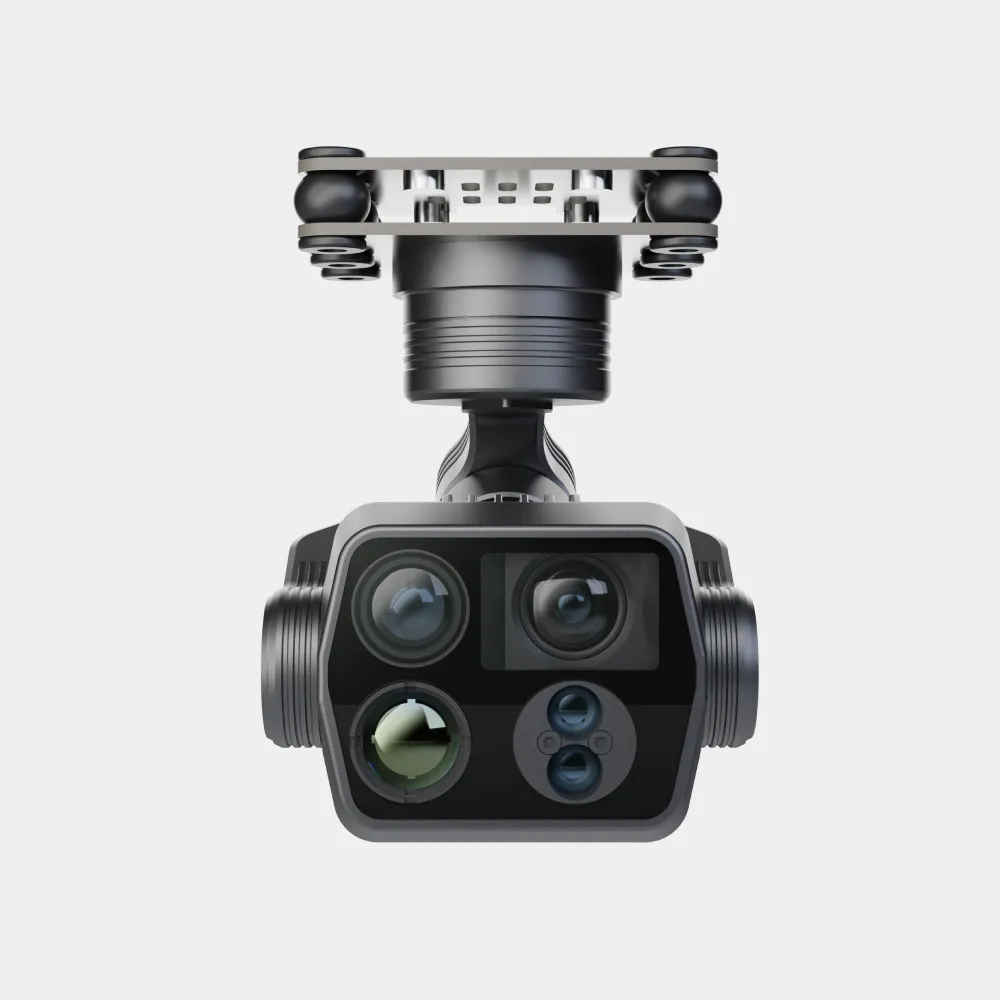

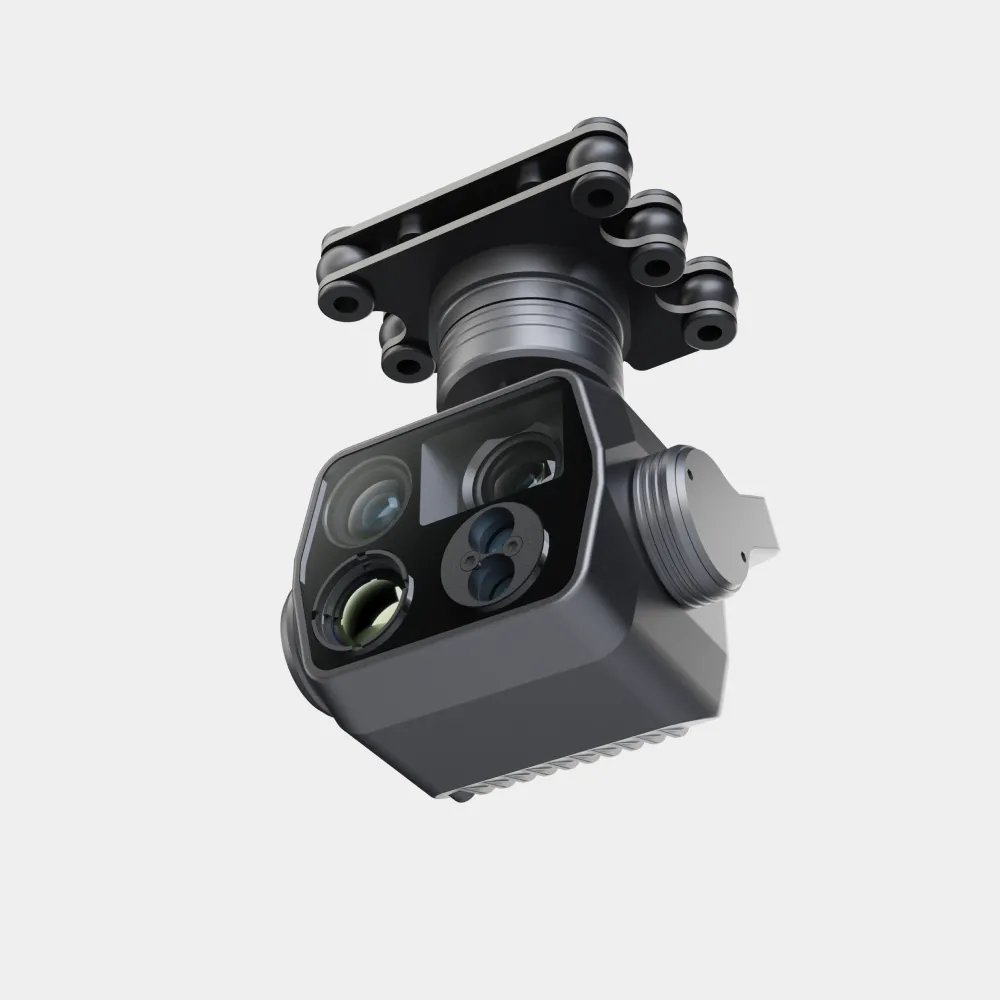

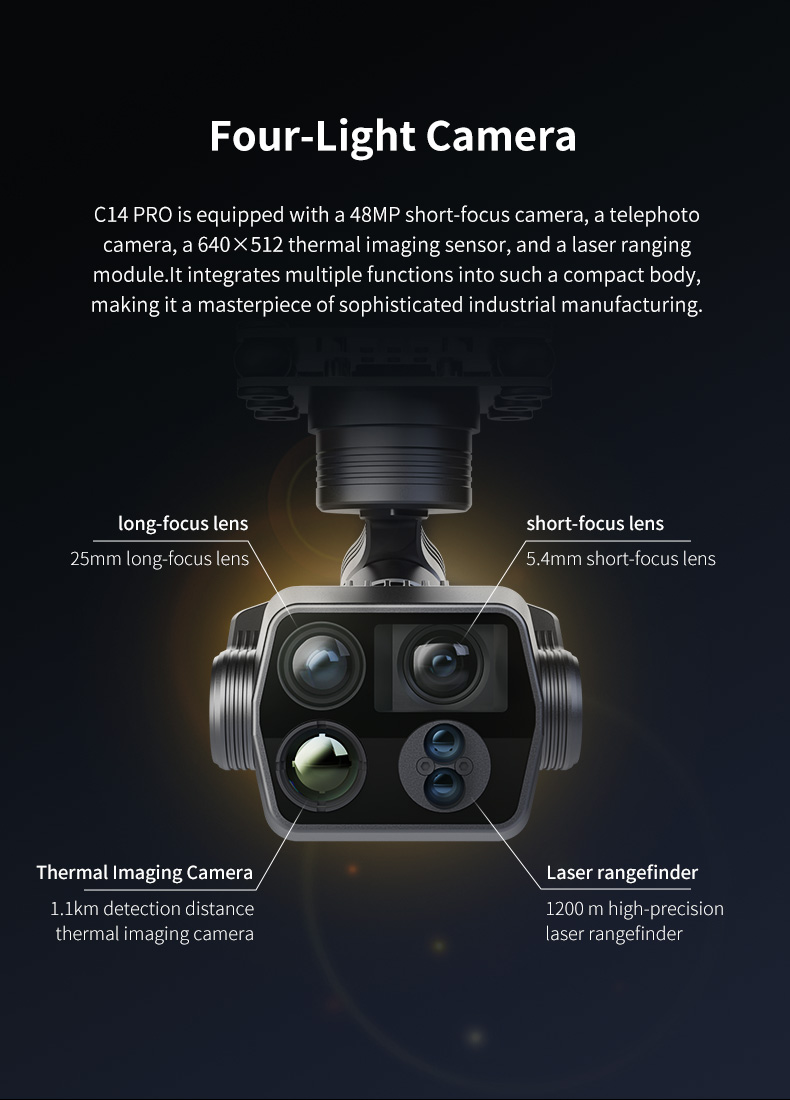

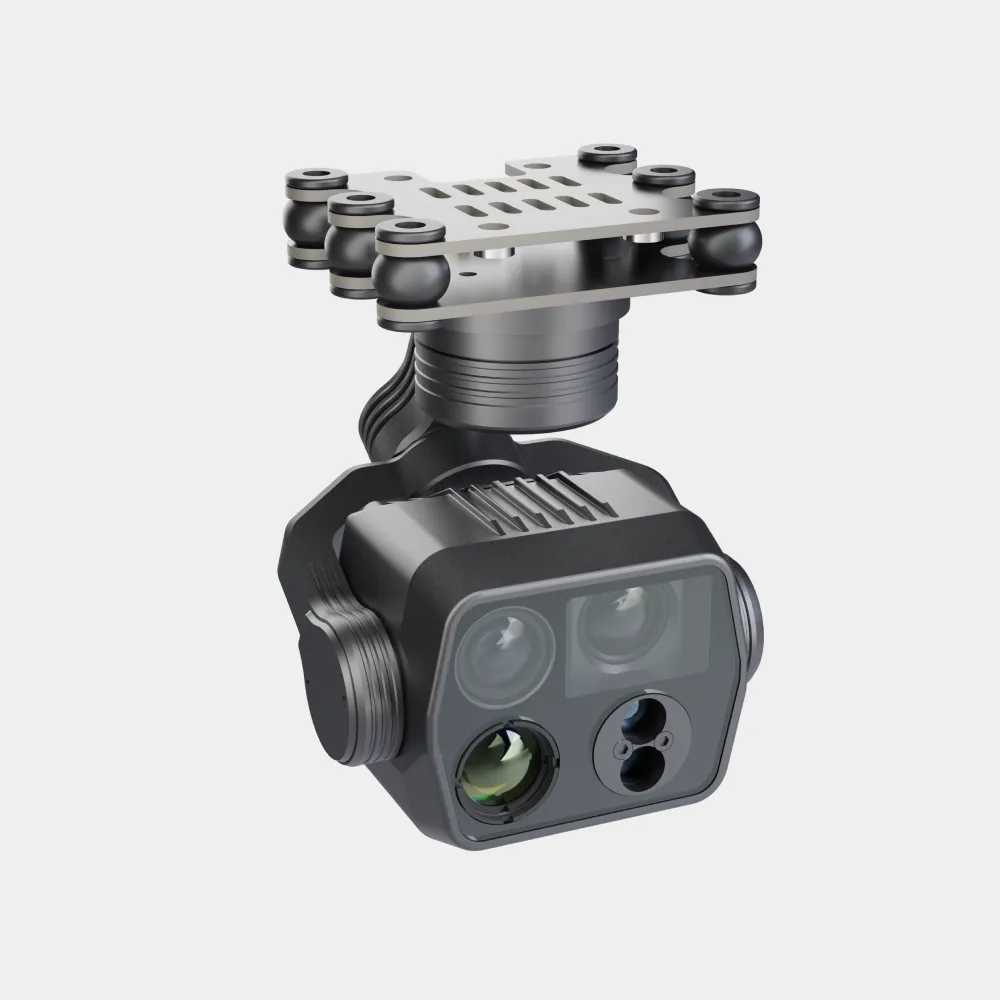

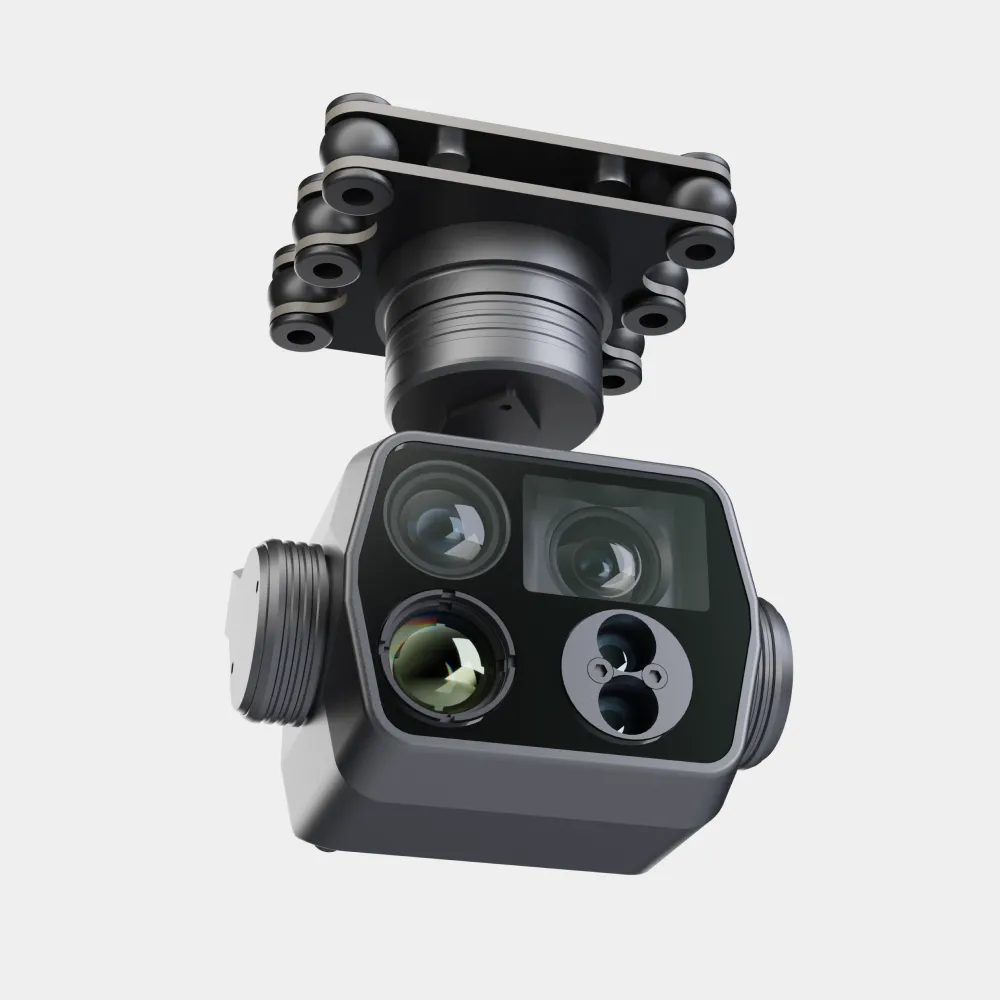

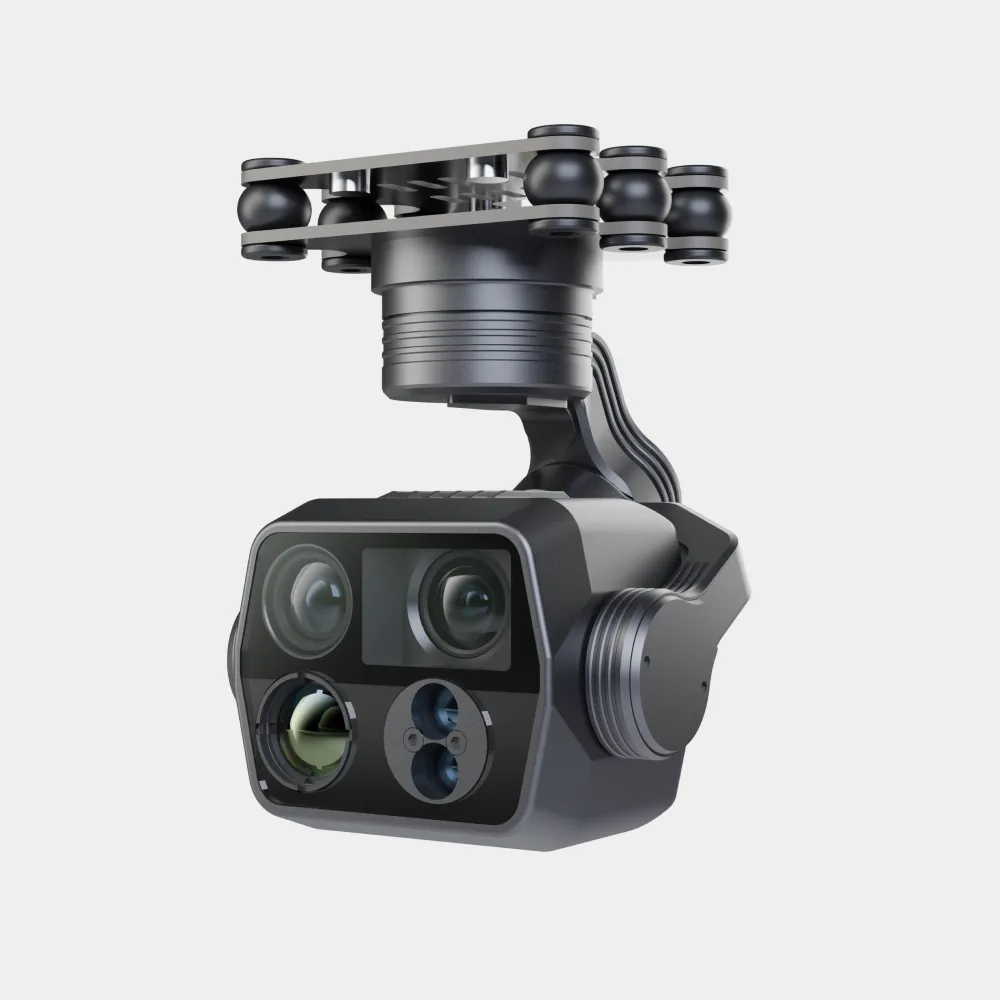

Skydroid C14PRO is a compact four-light three-axis mechanically stabilized gimbal camera designed for UAV payload applications. It integrates a 48MP visible-light camera, short-focus and long-focus lenses, a 640 × 512 thermal imaging camera and a laser ranging module. The visible-light camera supports 100x hybrid zoom, 4K video recording and 8K photography. The thermal camera provides 30Hz imaging with a listed detection range of up to 1.1 km, while the laser ranging module supports a listed range of 0.1–1200 m. The gimbal uses Ethernet for video output and control, supports RTSP and UDP, and operates from 15–80V. Its lightweight 210g body supports top-mounted and inverted-mounted installation for compatible UAV platforms.
Four-Light Stabilized Gimbal
For UAV Imaging, Thermal Observation and Laser Ranging
Compact Multi-Sensor UAV Imaging Payload
Multi-Sensor Imaging System
Skydroid C14PRO combines visible-light imaging, thermal imaging and laser ranging in a compact UAV payload. The 48MP visible-light camera supports 100x hybrid zoom, 3840 × 2160 video recording and 8000 × 6000 photography. The 640 × 512 thermal camera supports 30Hz imaging and a listed detection range of up to 1.1 km. This combination supports daytime observation, thermal inspection and target measurement from compatible UAV platforms.
Stable UAV Payload Integration

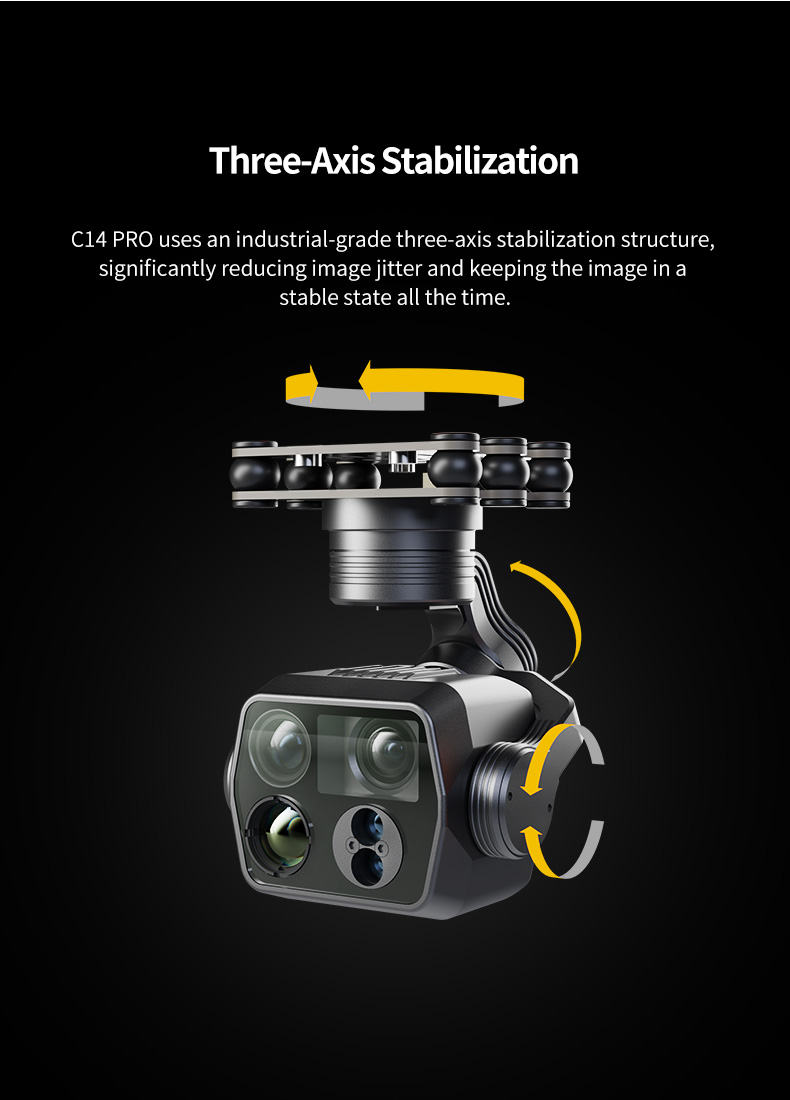

The C14PRO uses three-axis mechanical stabilization to reduce angular vibration during hovering and flight. It supports RTSP video output, UDP control, Ethernet connection, top-mounted installation and inverted-mounted installation. The gimbal operates from 15–80V and weighs 210g. Before installation, users should confirm the UAV power supply, Ethernet interface, mounting orientation and available payload capacity.

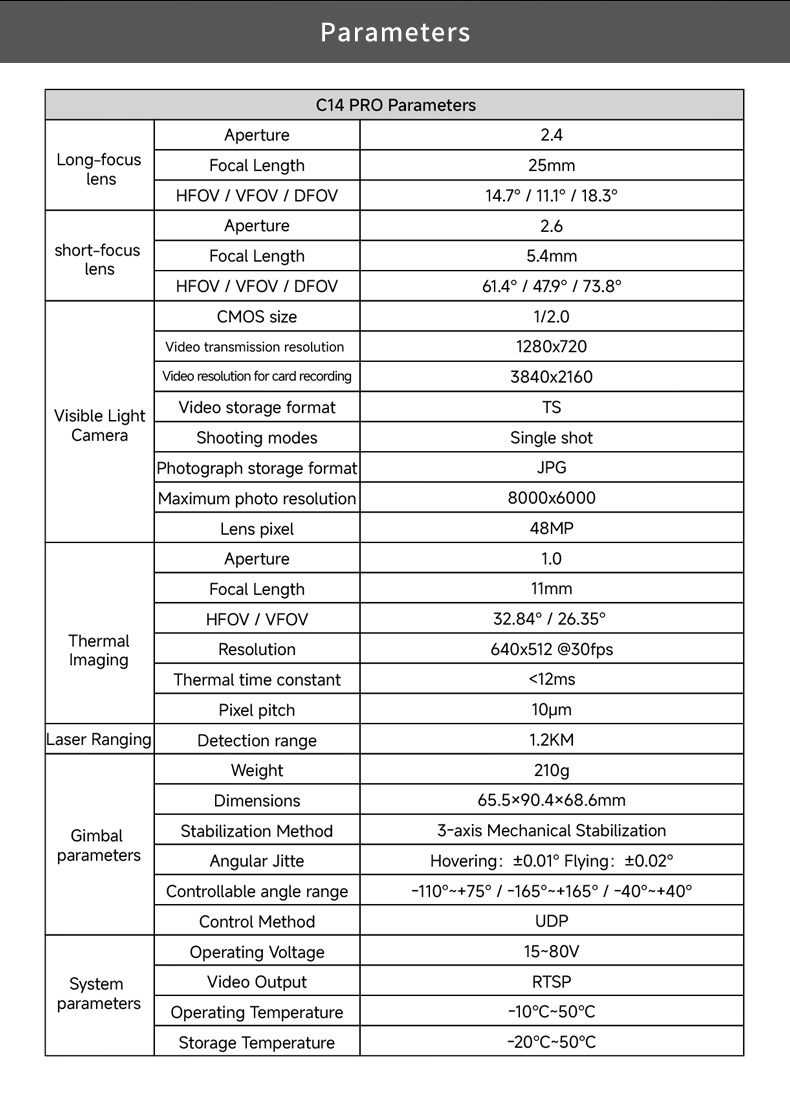

Technical Parameters
· Product Type: Four-light three-axis stabilized gimbal camera
· Visible-Light Camera: 48MP
· Thermal Imaging Resolution: 640 × 512
· Laser Ranging Range: 0.1–1200 m
· Laser Ranging Accuracy: ±0.5 m at distances up to 100 m
· Hybrid Zoom: 100x
· Video Recording Resolution: 3840 × 2160
· Gimbal Stabilization: Three-axis mechanical stabilization
· Operating Voltage: 15–80V

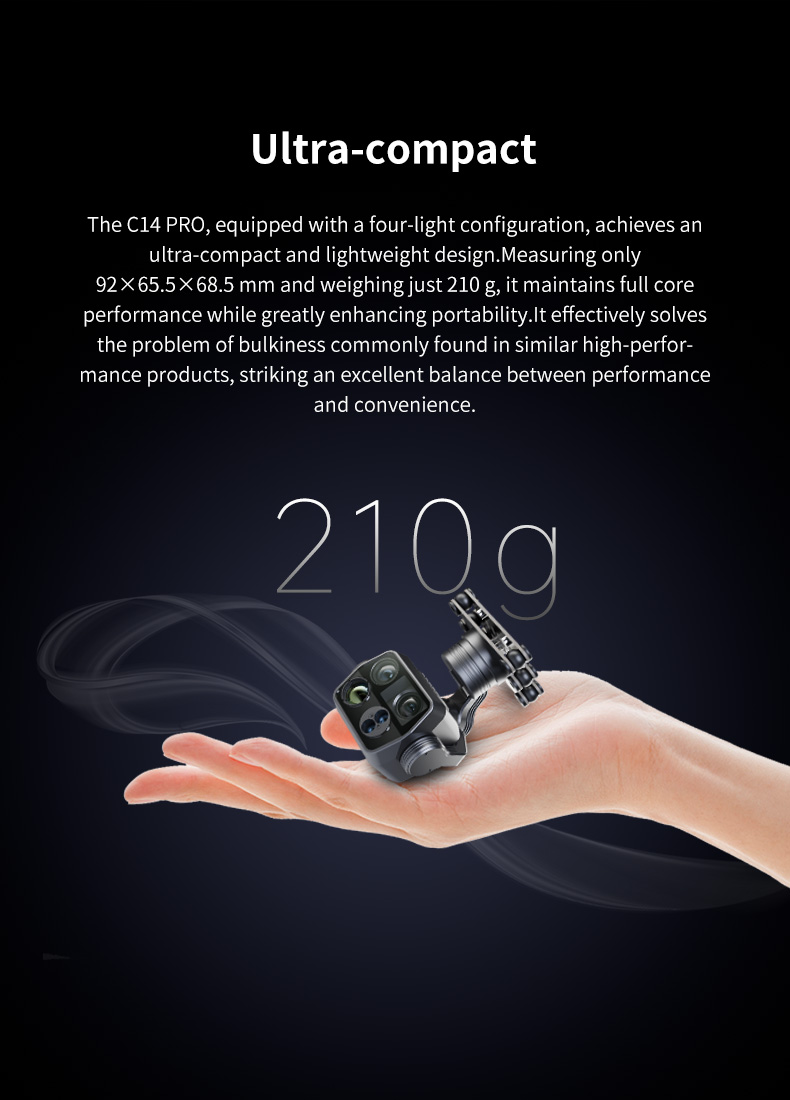

· Weight: 210g
· Dimensions: 65.5 × 68.57 × 92 mm
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Core Payload Functions
· 48MP visible-light camera with 100x hybrid zoom
· 4K video recording and 8K photography support
· 640 × 512 thermal imaging camera
· 30Hz thermal imaging frame rate
· Listed thermal detection range up to 1.1 km
· Laser ranging from 0.1–1200 m
· Three-axis mechanical stabilization
· RTSP video output and UDP control
Package Contents
· C14PRO gimbal camera main body × 1
· Gimbal fixing screws M2.5 × 6 × 4
· Ethernet port power cable × 1
· MicroSD memory card × 1
· Card reader × 1
· Aircraft integration, shipping terms and delivery time: To be confirmed
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes
· Confirm that the UAV power supply is compatible with the 15–80V operating voltage range.
· Confirm the Ethernet connection, video transmission system and UDP control interface before installation.
· Select the correct top-mounted or inverted-mounted mode before powering on the gimbal.
· Do not disassemble, modify or add external equipment to the gimbal without technical confirmation.
· Do not connect or disconnect cables while the equipment is powered.
· Avoid direct exposure of the camera and thermal sensor to the sun or other high-intensity radiation sources.
· Confirm the available UAV payload capacity, mounting holes and vibration isolation structure before purchase.
