RAYI 15x10 CF Electric Fixed Wing PROP
RAYI 15x10 CF Electric Fixed Wing PROP

RAYI 15x10 CF Electric Fixed Wing PROP

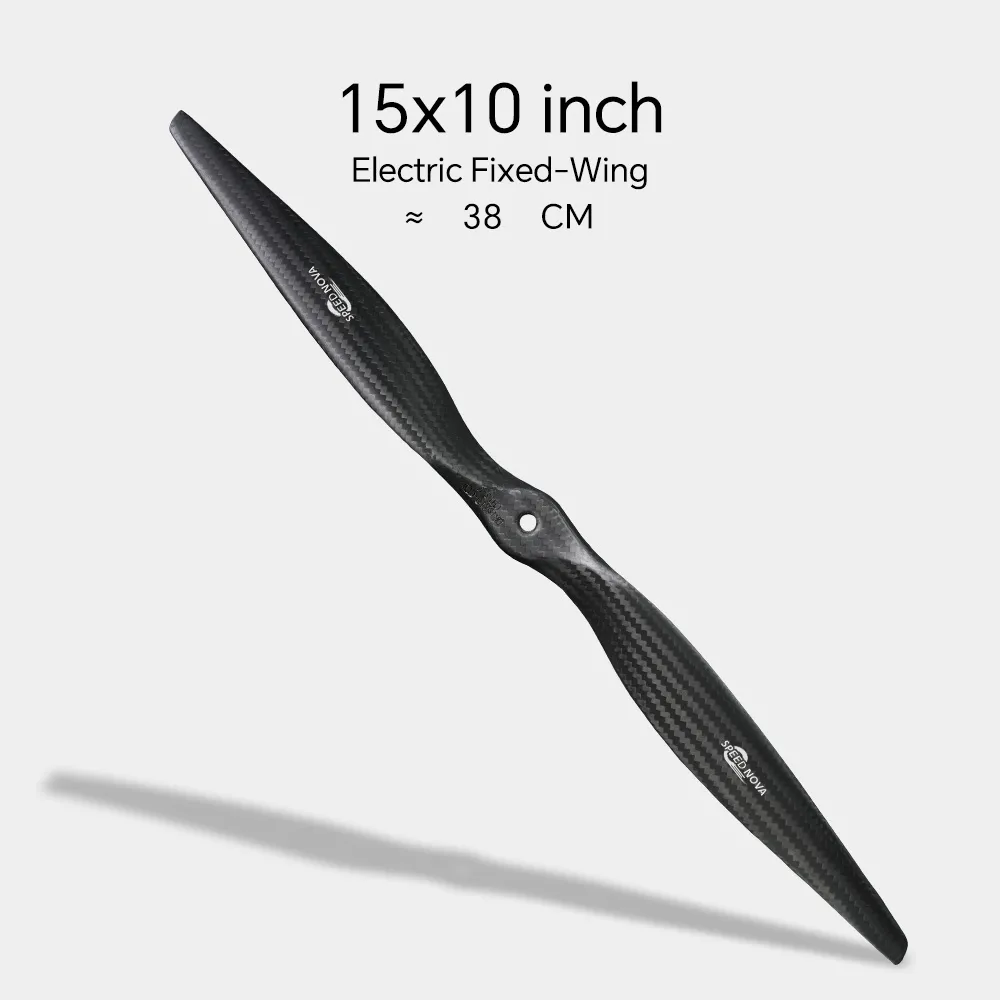

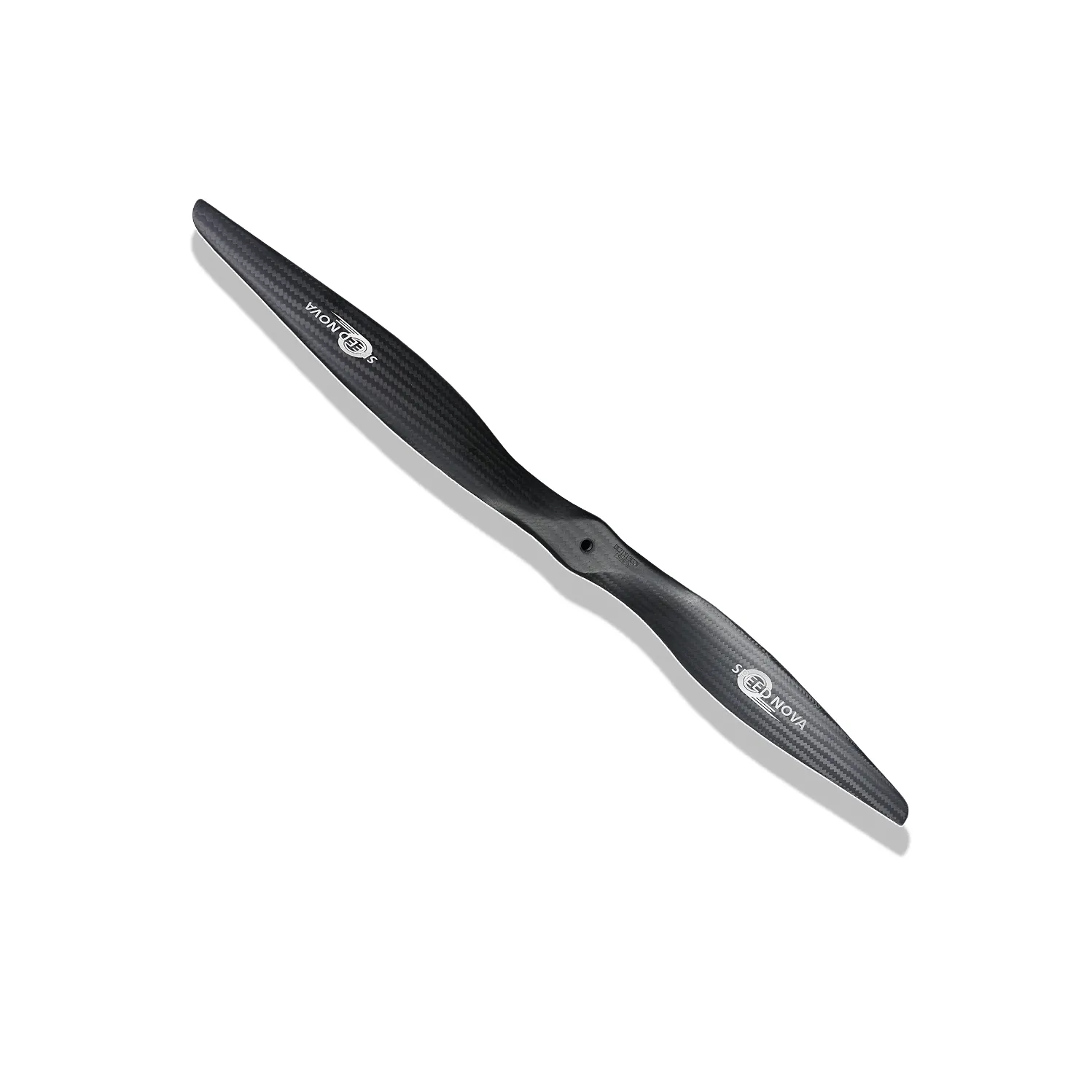

15x10 Carbon Fiber Electric Fixed-Wing Propeller


Designed for electric fixed-wing UAV and VTOL platforms requiring lightweight structure, efficient thrust output and reliable flight performance.

Key Features


· High-strength carbon fiber construction
· Efficient aerodynamic design
· Suitable for electric power systems
· Custom size and pitch available


  • 15x10 inch

    Electric Fixed-Wing

Inquire Now

Technical Specifications


Model: 15x10

Diameter: 15 inch

Pitch: 10 inch

Material: Carbon Fiber Composite

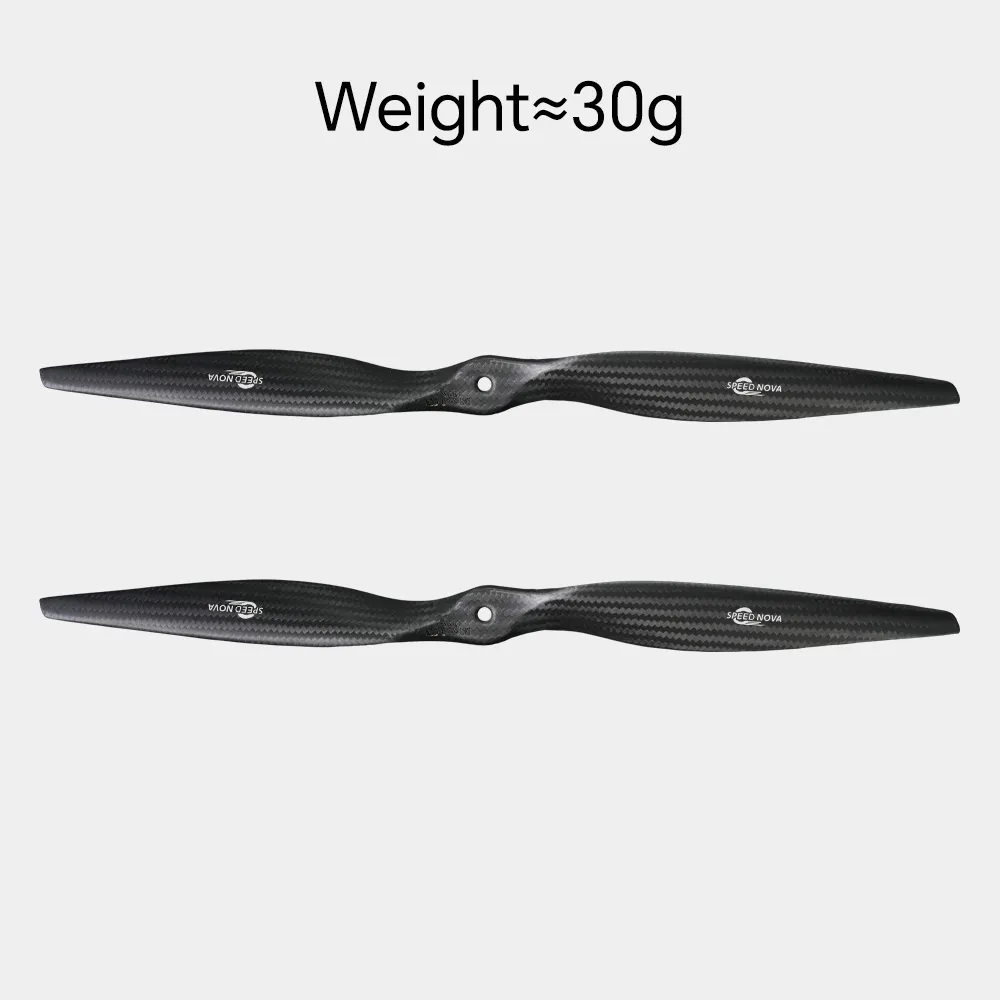

Net Weight: Approx. 30 g

Application: Fixed-Wing UAV / VTOL UAV

Safe RPM: ≤ 8500 r/min

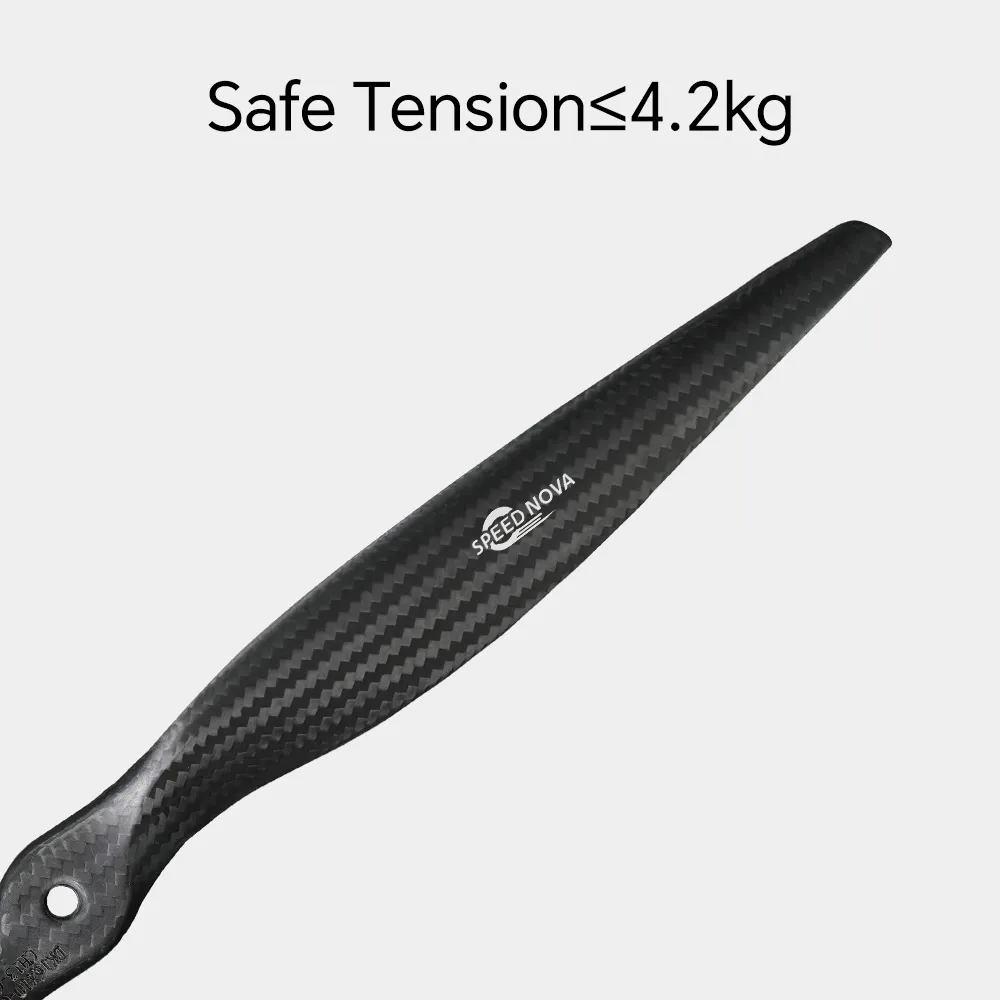

Safe Thrust: ≤ 4.2 kg

Customization: OEM and ODM available

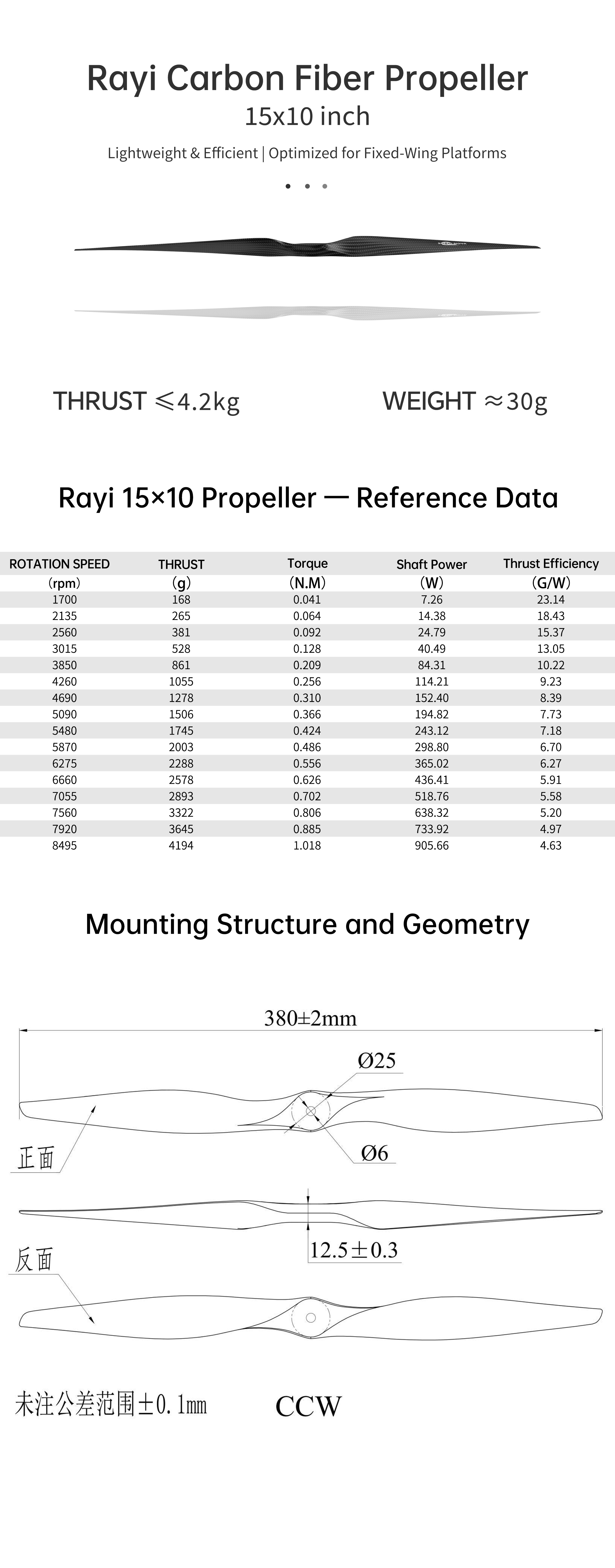

Detailed test data and mounting drawings are available upon request.
