RAYI 19x12 Carbon Fiber Electric Fixed-Wing Propeller
RAYI 19x12 Carbon Fiber Electric Fixed-Wing Propeller

RAYI 19x12 Carbon Fiber Electric Fixed-Wing Propeller

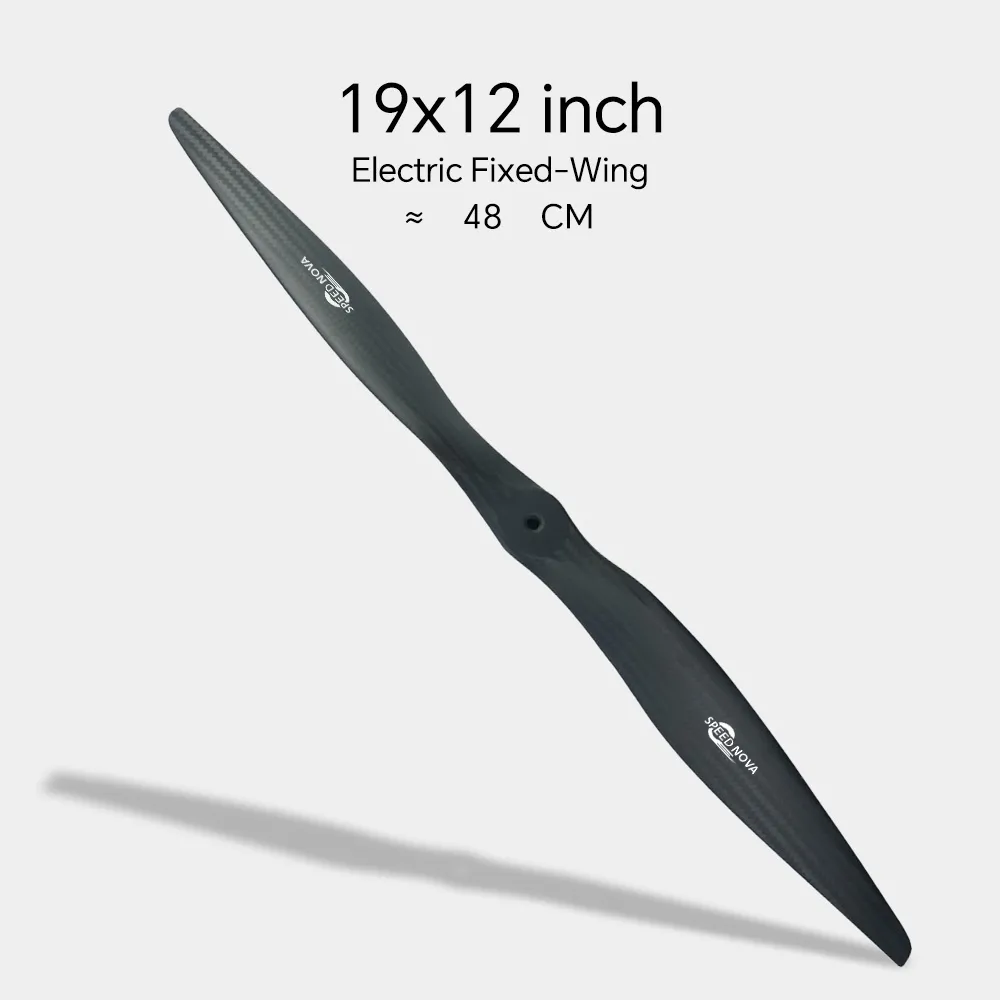

19x12 Carbon Fiber Electric Fixed-Wing Propeller


Designed for electric fixed-wing UAV and VTOL platforms requiring lightweight structure, efficient thrust output and reliable flight performance.

Key Features


· High-strength carbon fiber construction
· Efficient aerodynamic design
· Suitable for electric power systems
· Custom size and pitch available


  • 19x12 inch

    Electric Fixed-Wing

Inquire Now

Technical Specifications


Model: 19x12
Diameter: 19 inch
Pitch: 12 inch
Material: Carbon Fiber Composite

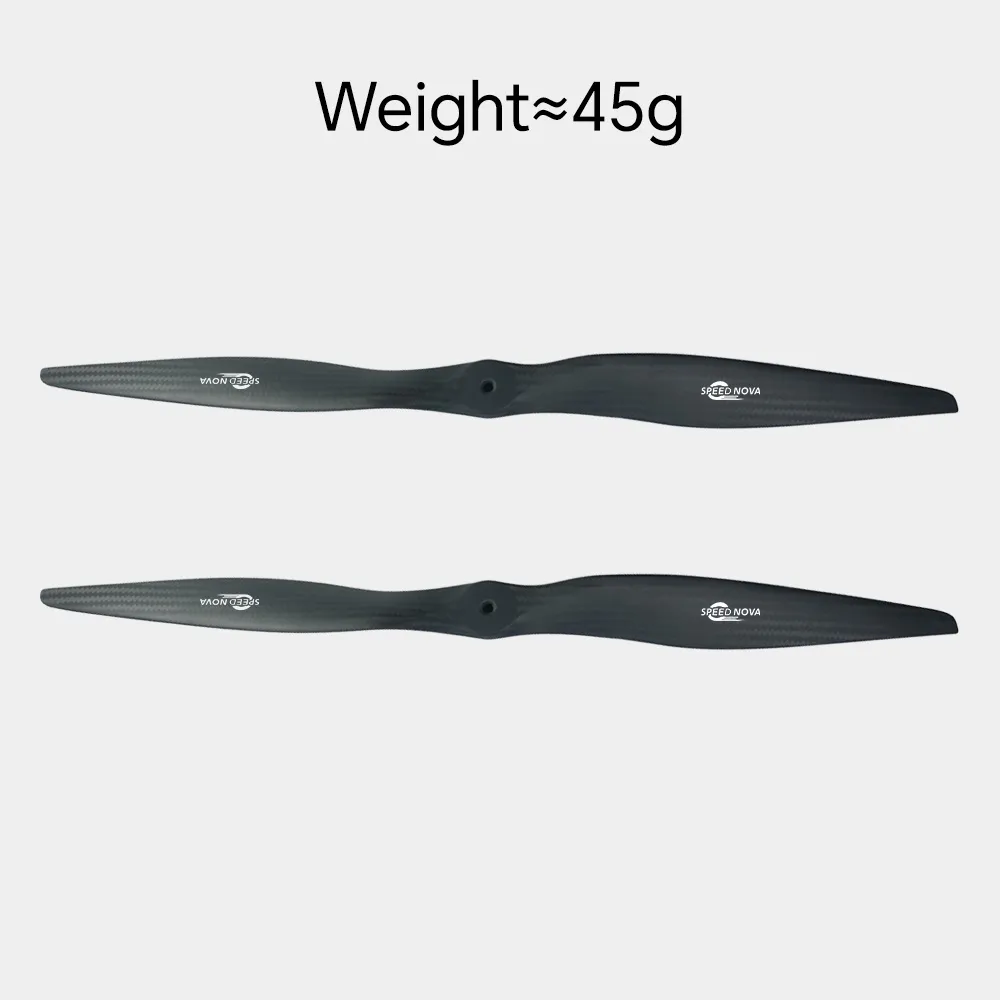

Net Weight: Approx. 45 g
Application: Electric Fixed-Wing UAV / VTOL UAV
Safe RPM: ≤ 8000 r/min

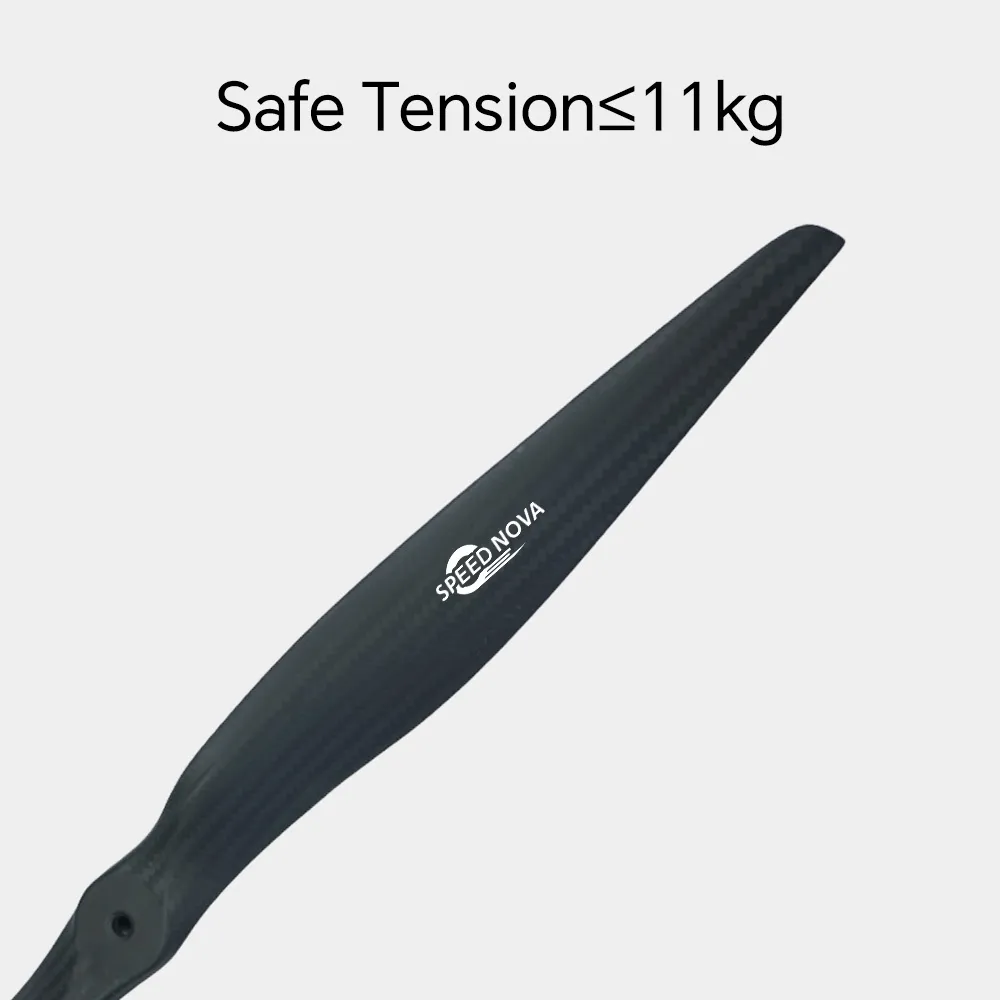

Safe Thrust: ≤ 11 kg
Customization: OEM and ODM available

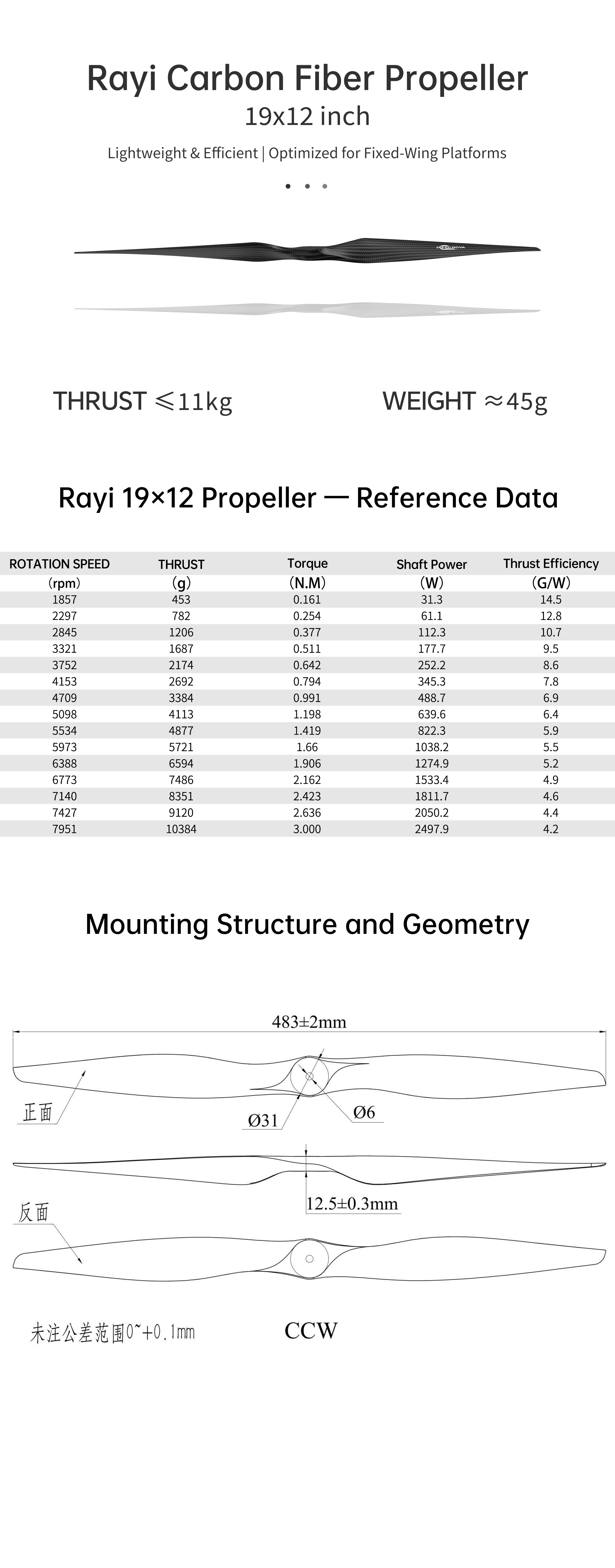

Detailed test data and mounting drawings are available upon request.
