RAYI 20x13 Carbon Fiber Electric Fixed-Wing Propeller
RAYI 20x13 Carbon Fiber Electric Fixed-Wing Propeller

RAYI 20x13 Carbon Fiber Electric Fixed-Wing Propeller

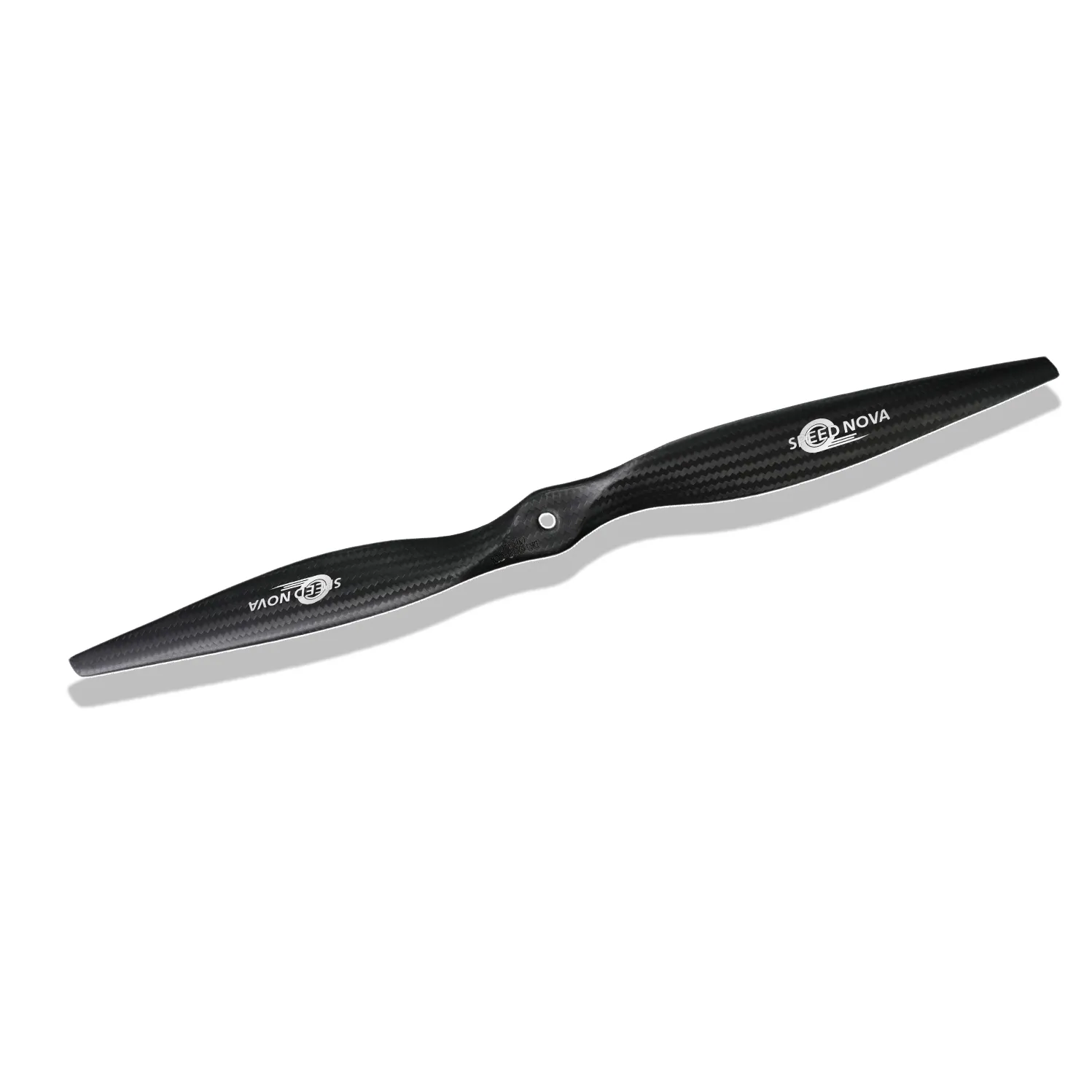

20x13 Carbon Fiber Electric Fixed-Wing Propeller


Designed for electric fixed-wing UAV and VTOL platforms requiring lightweight structure, efficient thrust output and reliable flight performance.

Key Features


· High-strength carbon fiber construction
· Efficient aerodynamic design
· Suitable for electric power systems
· Custom size and pitch available


  • 20x13 inch

    Electric Fixed-Wing

Inquire Now

Technical Specifications


Model: 20x13

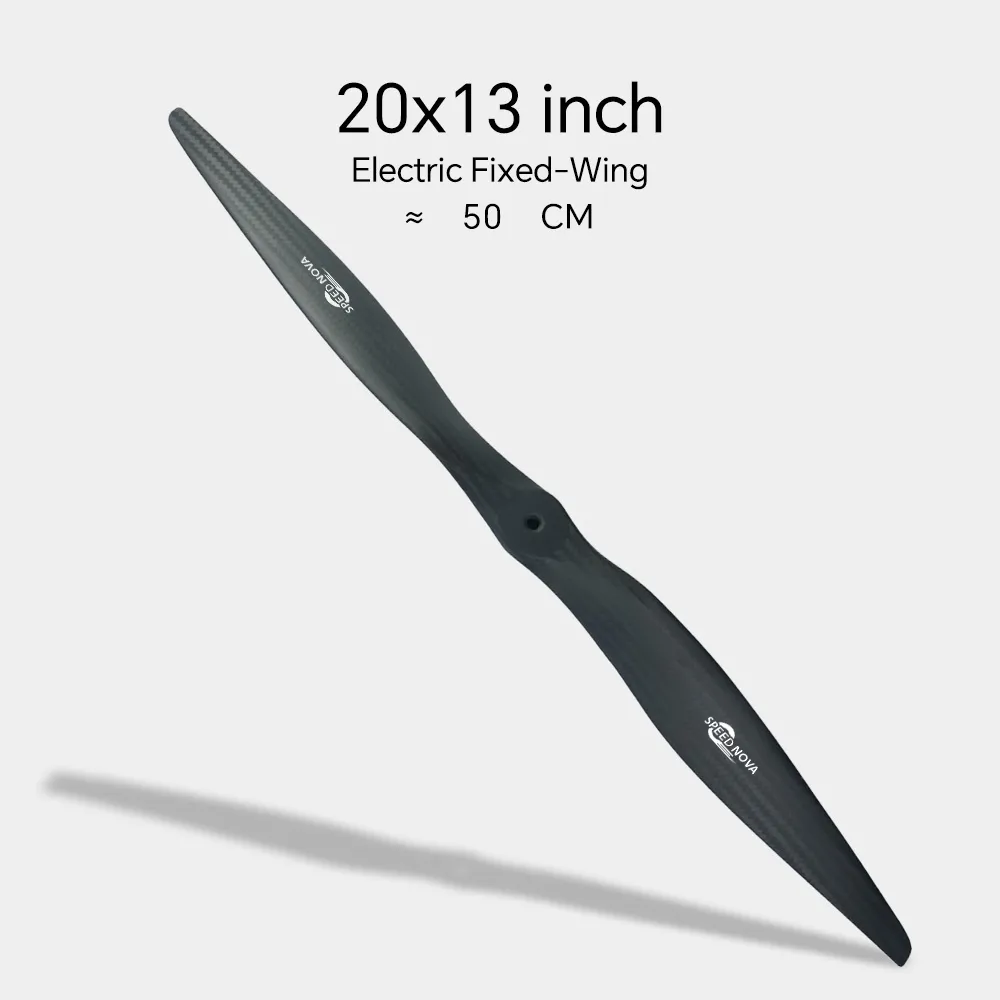

Diameter: 20 inch
Pitch: 13 inch
Material: Carbon Fiber Composite

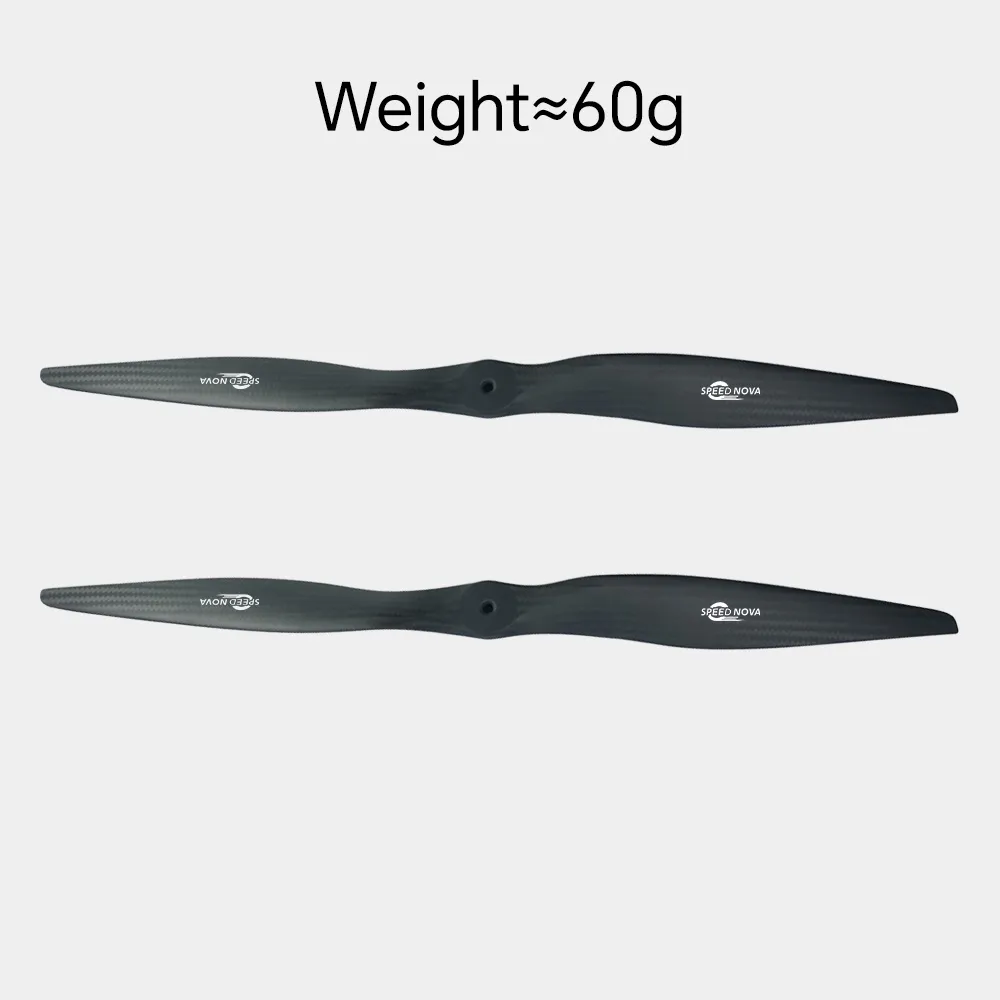

Net Weight: Approx. 60 g
Application: Electric Fixed-Wing UAV / VTOL UAV
Safe RPM: ≤ 7500 r/min

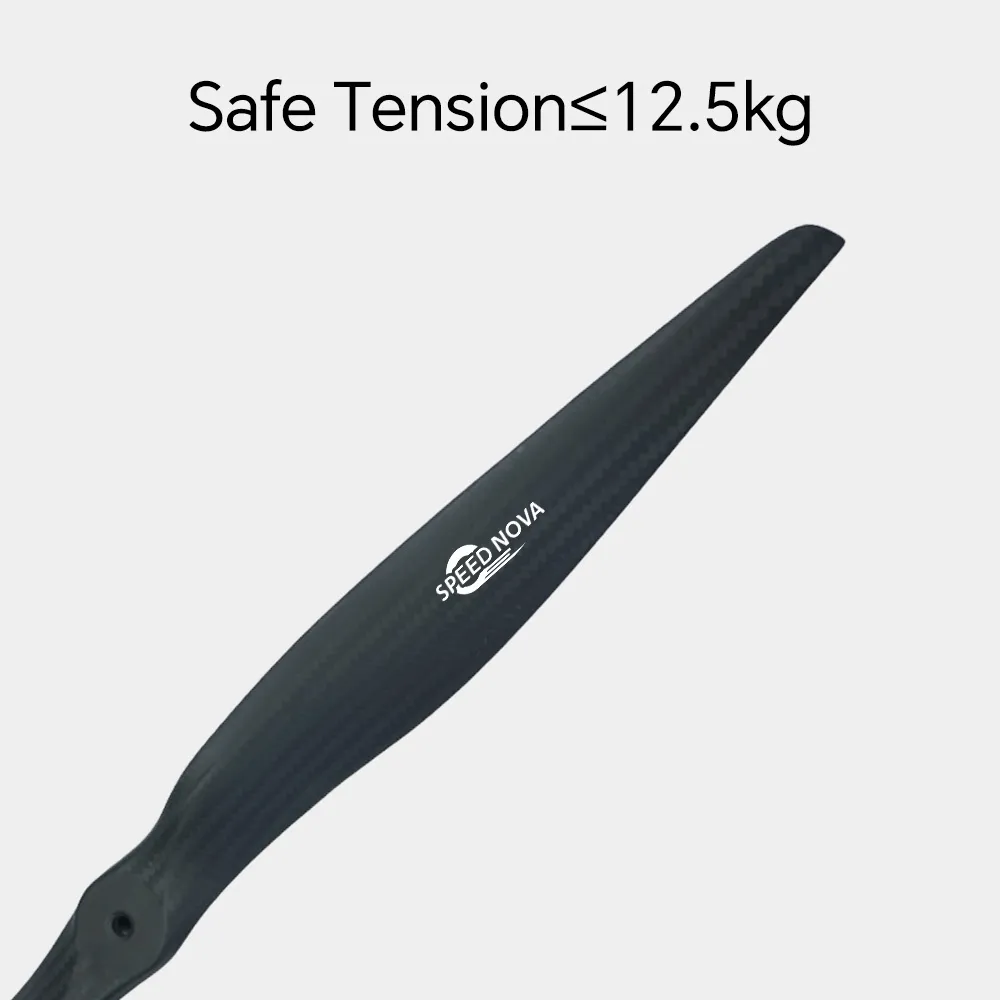

Safe Thrust: ≤ 12.5 kg
Customization: OEM and ODM available

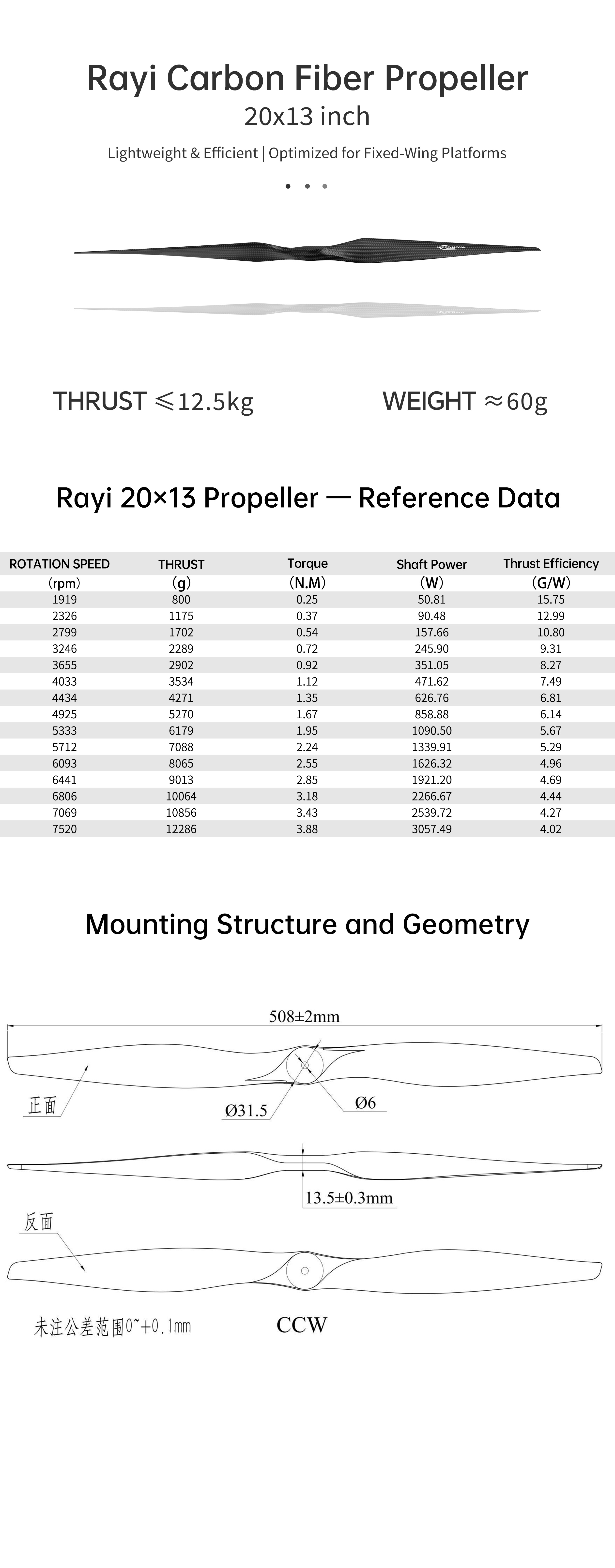

Detailed test data and mounting drawings are available upon request.
