Single net weight: 13.4g
Installation method: Screw fixation
Applicable models: Multi rotor
Thrust Limitation: ≤7500r/min
Optimum RPM: ≤1000g
Working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
Foldable type 12*4 inch
Ultra light High strength High efficiency Custom propeller
Product Description
Specification

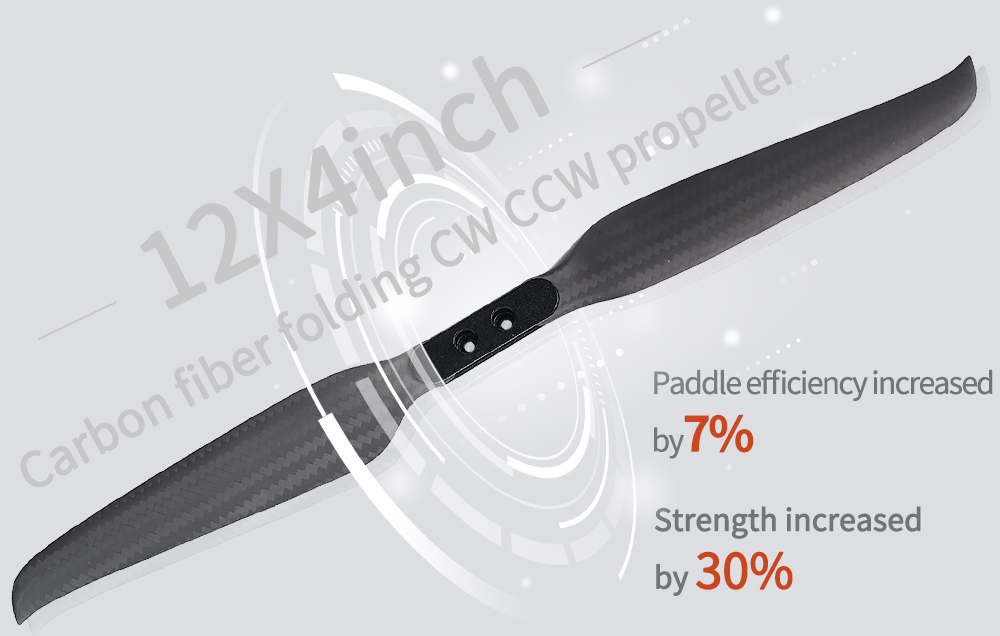

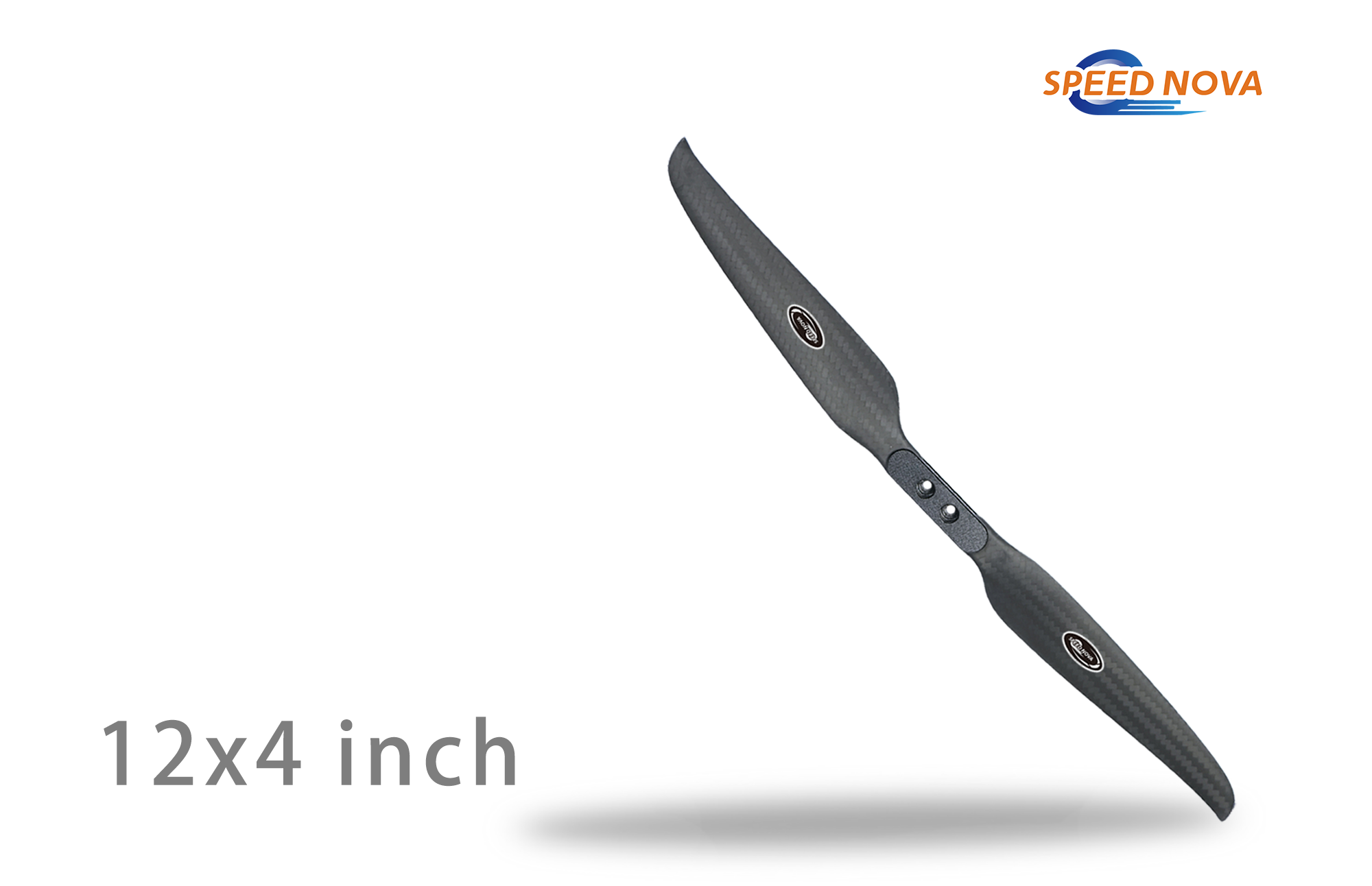

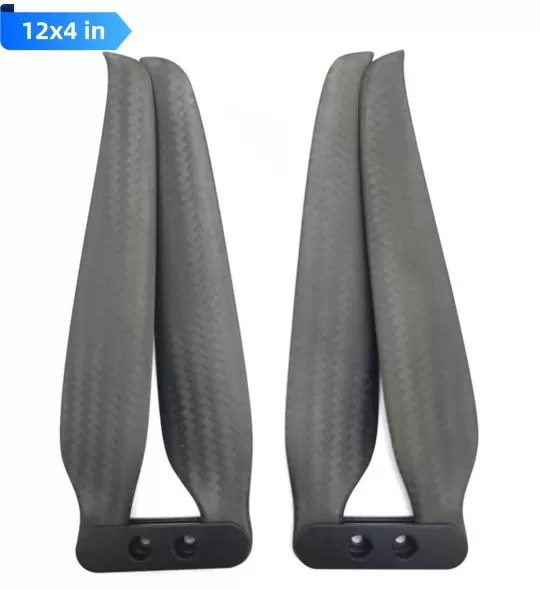

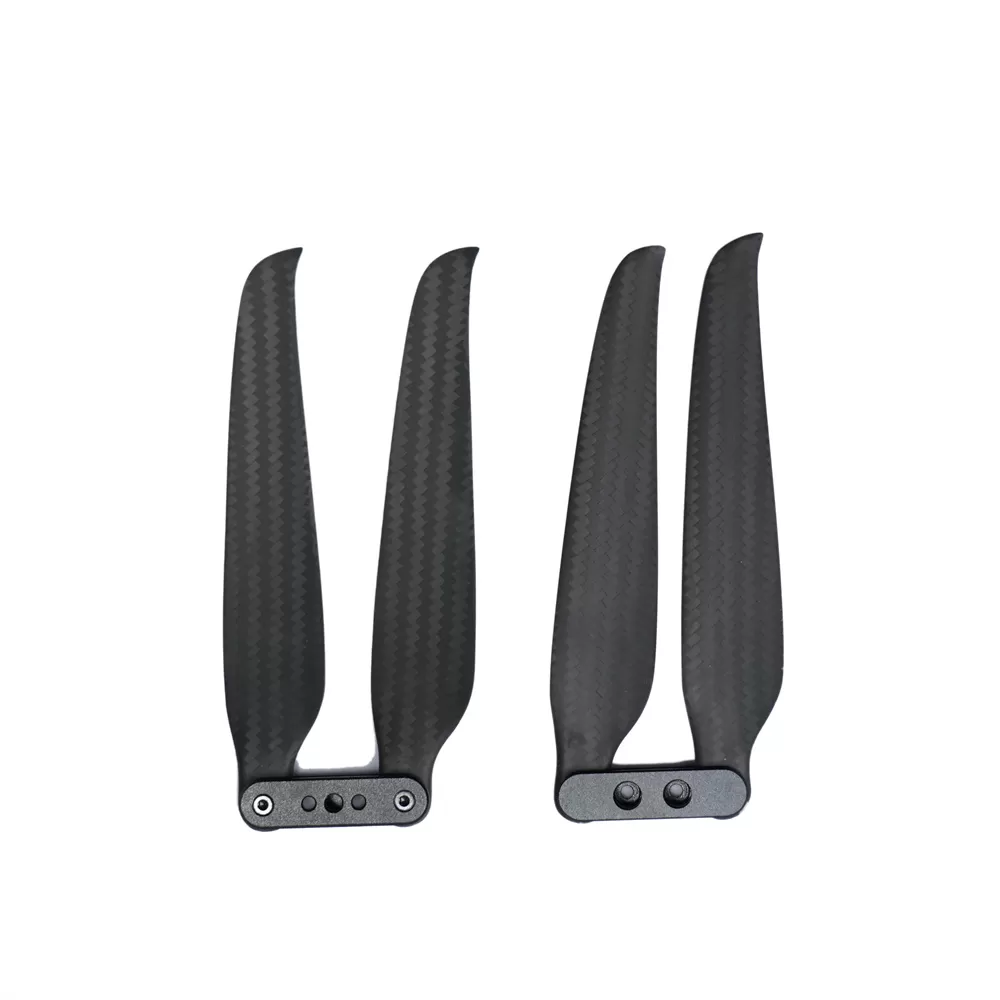

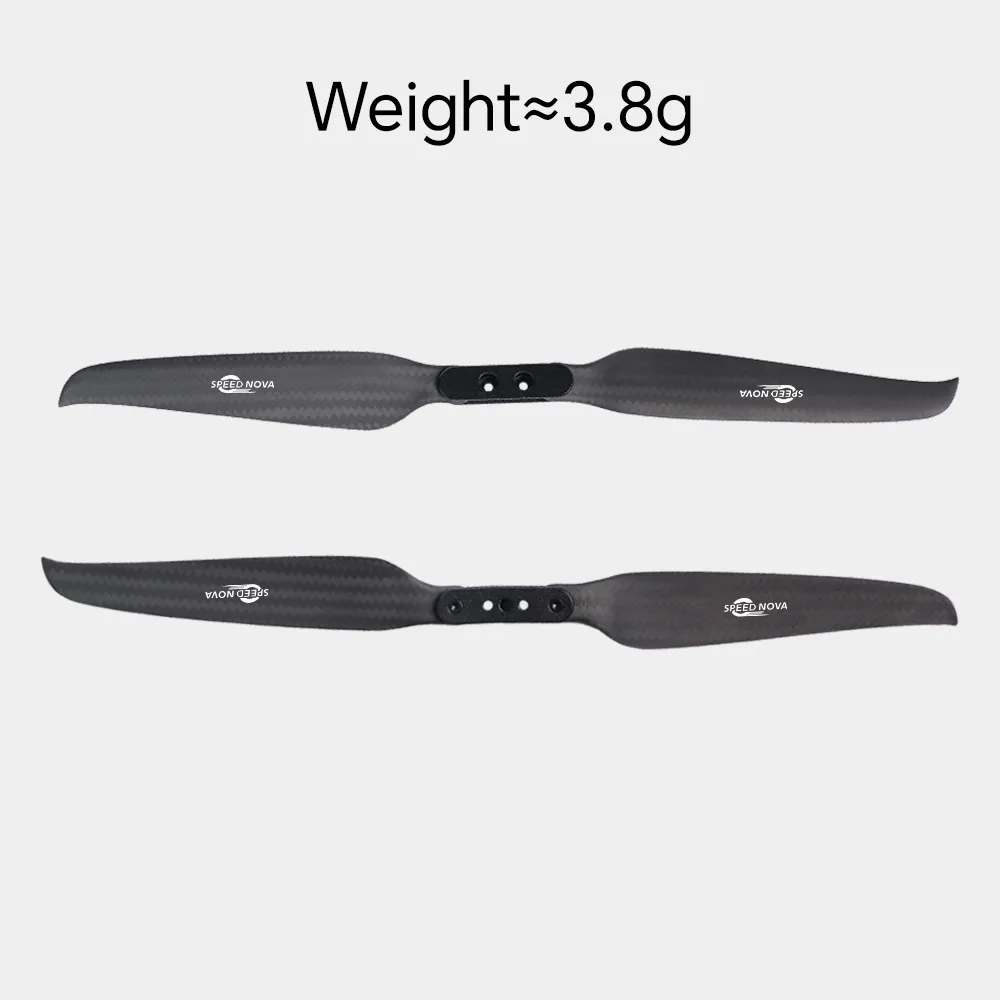

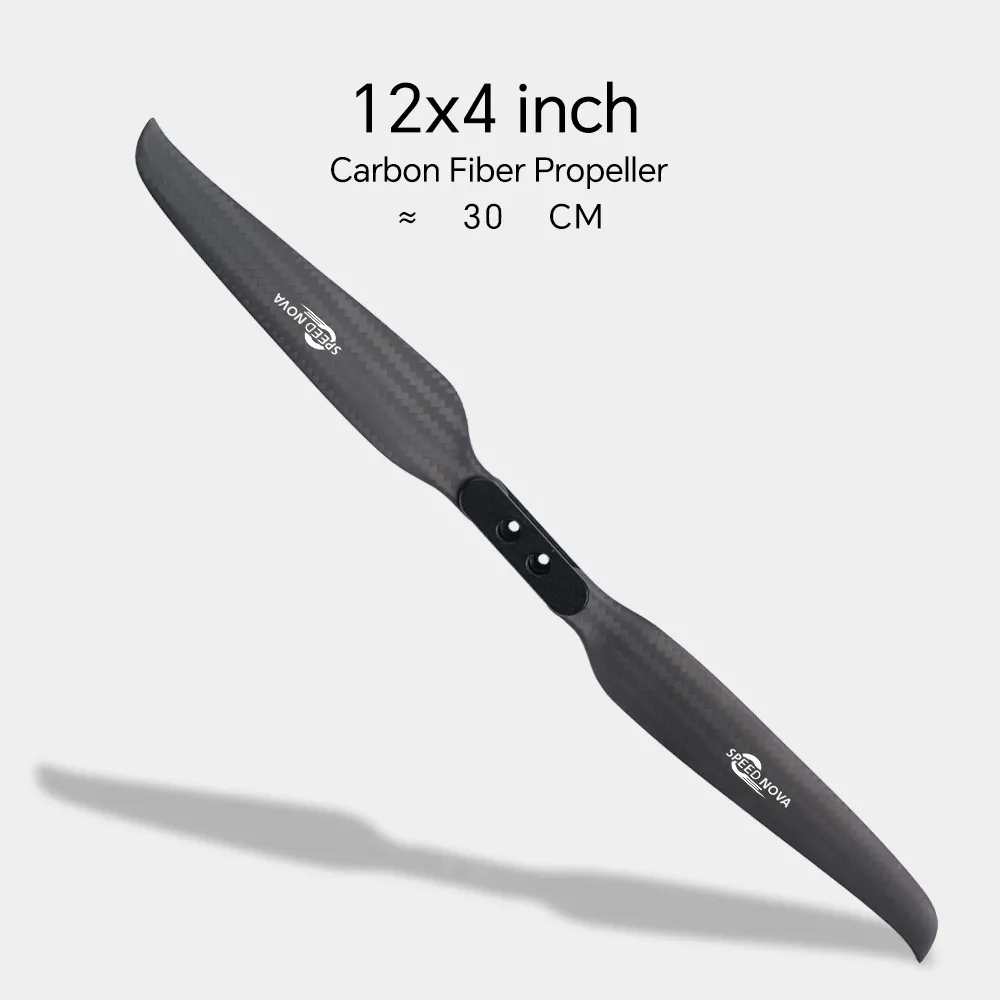

Product name: 12*4 Ultra light carbon fiber folding CW/CCW Propeller
Brand: Rayi
Propeller Size: 12X4 Inch (30.48 cm)
Diameter (inches): 12
Pitch (inches): 4
Material: carbon fiber and epoxy
Surface Treatment : Polished or Frosted
Single net weight: 13.4g
Installation method: Screw fixation
Applicable models: Multi rotor
Thrust Limitation: ≤7500r/min
Optimum RPM: ≤1000g
Working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
Rayi 12X4 carbon fiber foldable propellers feature counter-clockwise and clockwise rotation, ideal for RC drone enthusiasts and professionals seeking high-performance propulsion systems.
The Rayi 12X4 Ultra Light Carbon Fiber Folding Propellers are meticulously designed for multi-rotor models, offering enhanced performance and durability. With a sleek and lightweight construction, each propeller weighs only 13.4g, ensuring minimal impact on your drone’s overall weight while maximizing flight efficiency. These propellers are crafted from high-strength carbon fiber and epoxy resin, with either a polished or frosted surface finish, allowing for longer flight durations and improved maneuverability.
Optimized Airfoil Design: The advanced aerodynamic design improves lift while reducing drag, leading to superior flight efficiency and reduced energy loss.
Lightweight Construction: At just 13.4g per propeller, these lightweight blades enhance motor responsiveness, improving overall flight performance.
High-Strength Carbon Fiber: Made from a premium carbon fiber and epoxy blend, these propellers are both sturdy and lightweight, providing exceptional strength without compromising weight.
Extended Flight Duration: The combination of strength and lightweight design ensures longer flight times, making them perfect for extended missions.
Convenient Foldable Design: The folding feature makes storage and transport easy, adding practicality for drone users who need portability without sacrificing performance.
2 × 12X4 Inch CW Carbon Fiber Propellers (13.4g each)
2 × 12X4 Inch CCW Carbon Fiber Propellers (13.4g each)
This product comes with a standard warranty, ensuring peace of mind and reliable support for your purchase.
Enhance the performance of your multi-rotor drone with the Rayi 12X4 Ultra Light Carbon Fiber Folding Propellers. Designed for superior flight efficiency, durability, and longer flight times, these propellers are an essential upgrade for high-performance UAV setups.
Technical Parameter
| 12X4 Rayi ultralight Carbon Fiber Folding CW/CCW Drone Propeller | |||||||
| PARAMETER TABLE | |||||||
| voltage | current | thrust | torque | rotation speed | shaft power | axial force | throttle |
| (V) | (A) | (g) | (N.M) | (rpm) | (W) | (G/W) | (%) |
| 14.40 | 0.26 | 68 | 0.014 | 1807 | 2.65 | 25.67 | 30 |
| 14.40 | 0.59 | 135 | 0.026 | 2410 | 6.56 | 20.58 | 40 |
| 14.40 | 0.98 | 208 | 0.038 | 2890 | 11.50 | 18.09 | 50 |
| 14.40 | 1.70 | 310 | 0.054 | 3498 | 19.78 | 15.67 | 60 |
| 14.40 | 2.50 | 424 | 0.071 | 4000 | 29.73 | 14.26 | 70 |
| 14.40 | 3.51 | 540 | 0.091 | 4445 | 42.35 | 12.75 | 80 |
| 14.40 | 4.73 | 658 | 0.108 | 4934 | 55.79 | 11.79 | 90 |
| 14.40 | 6.41 | 793 | 0.131 | 5465 | 74.96 | 10.58 | 100 |
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Features
Rayi carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.
1. With fine workmanship and exquisite appearance.
2. The blades have passed precise dynamic balance inspection, and the flight noise is low.
3. High aerodynamic efficiency, low power consumption, improve battery life.
4. Light and strong pulling force, and excellent balance.
5. Adopts push-type quick release design, which is easy to assemble and disassemble.
6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects
7. It is a perfect replacement for the damaged parts.
Dimensions:
12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch, 19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV
accept customized size and design
Notice: Accepted OEM &ODM
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
