These ultra light 22 inch drone prop options feature CW/CCW configurations, perfect for FPV racing 22x9 prop and heavy-lift applications. Crafted from high-grade T700 carbon fiber with premium epoxy resin, our 22x9 Carbon Fiber Folding Propellers deliver low noise carbon folding propeller operation and superior balance to minimize vibrations.
Folding type 22*9 inch
Ultra light High strength High efficiency Custom propeller
Product Description

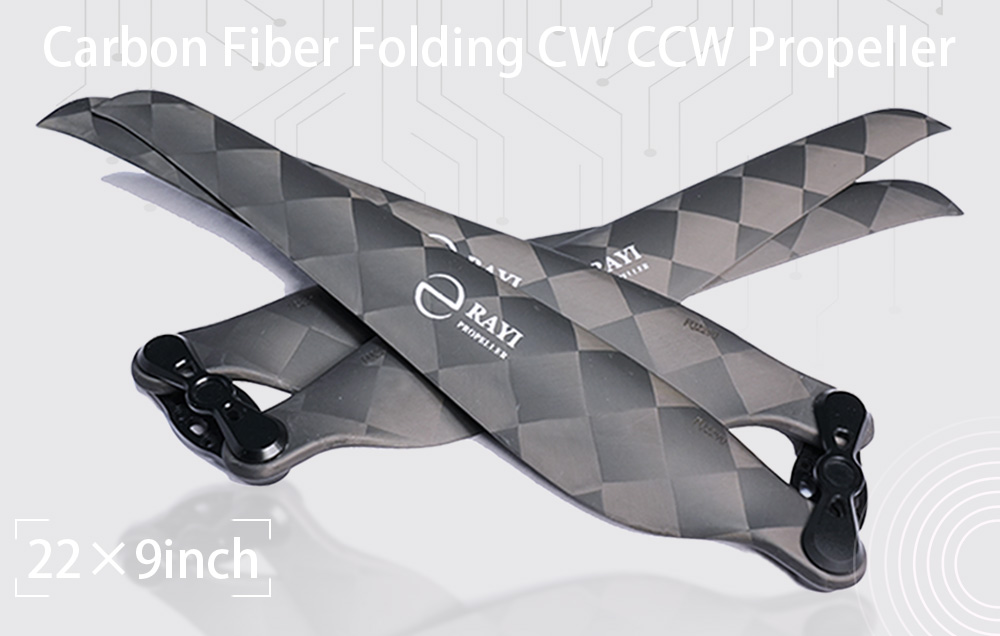

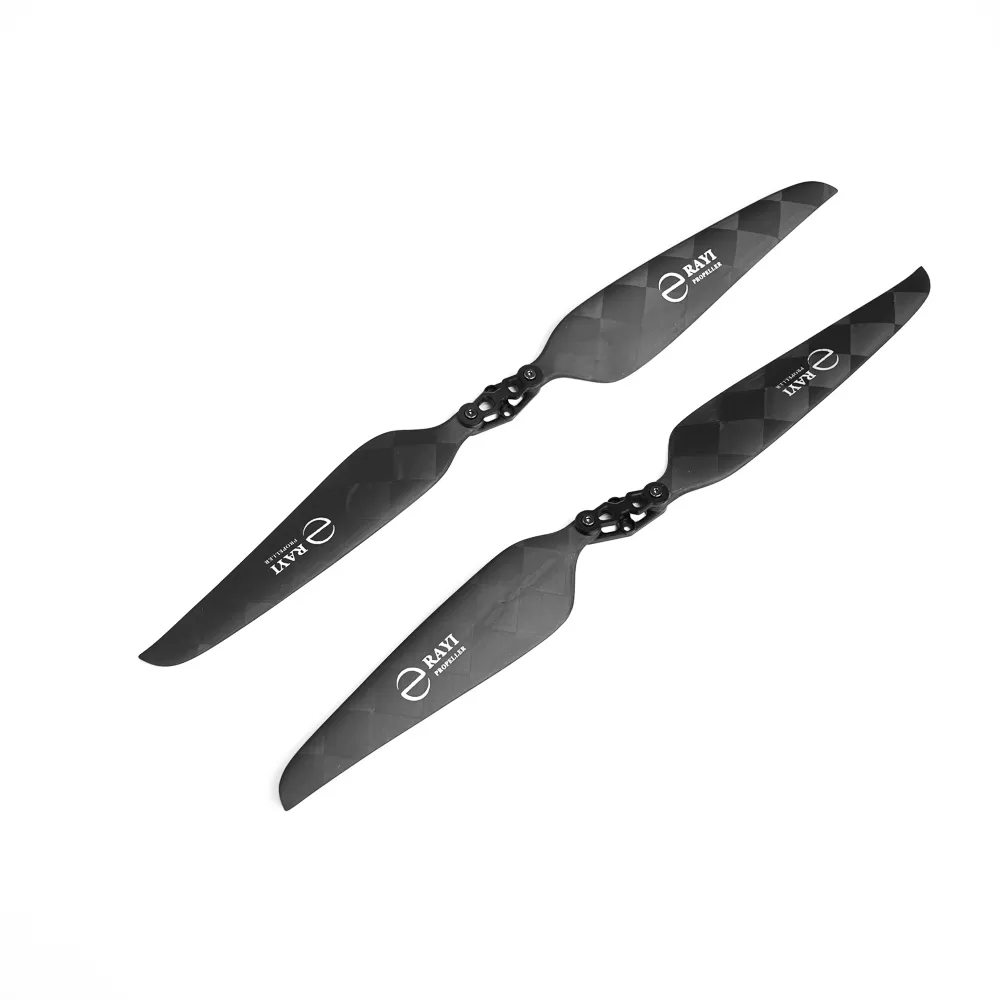

22x9 Carbon Fiber Folding Propellers for Professional UAVs
RAYI presents the ultimate propulsion solution for commercial and industrial applications. Our premium 22x9 Carbon Fiber Folding Propellers are specifically engineered to meet the rigorous demands of heavy-lift drones operating in complex environments. By combining the aerodynamic efficiency of fixed-pitch props with the convenience of a folding mechanism, we provide pilots with the best of both worlds.
If you are building a professional industrial drone propeller system for demanding missions, this model provides the balance between portability and uncompromised performance.
Specification
Our 22x9 Carbon Fiber Folding Propellers outperform standard props in thrust-to-weight ratio, ensuring reliable performance for wholesale carbon fiber props 22x9 price seekers.
Brand: Rayi

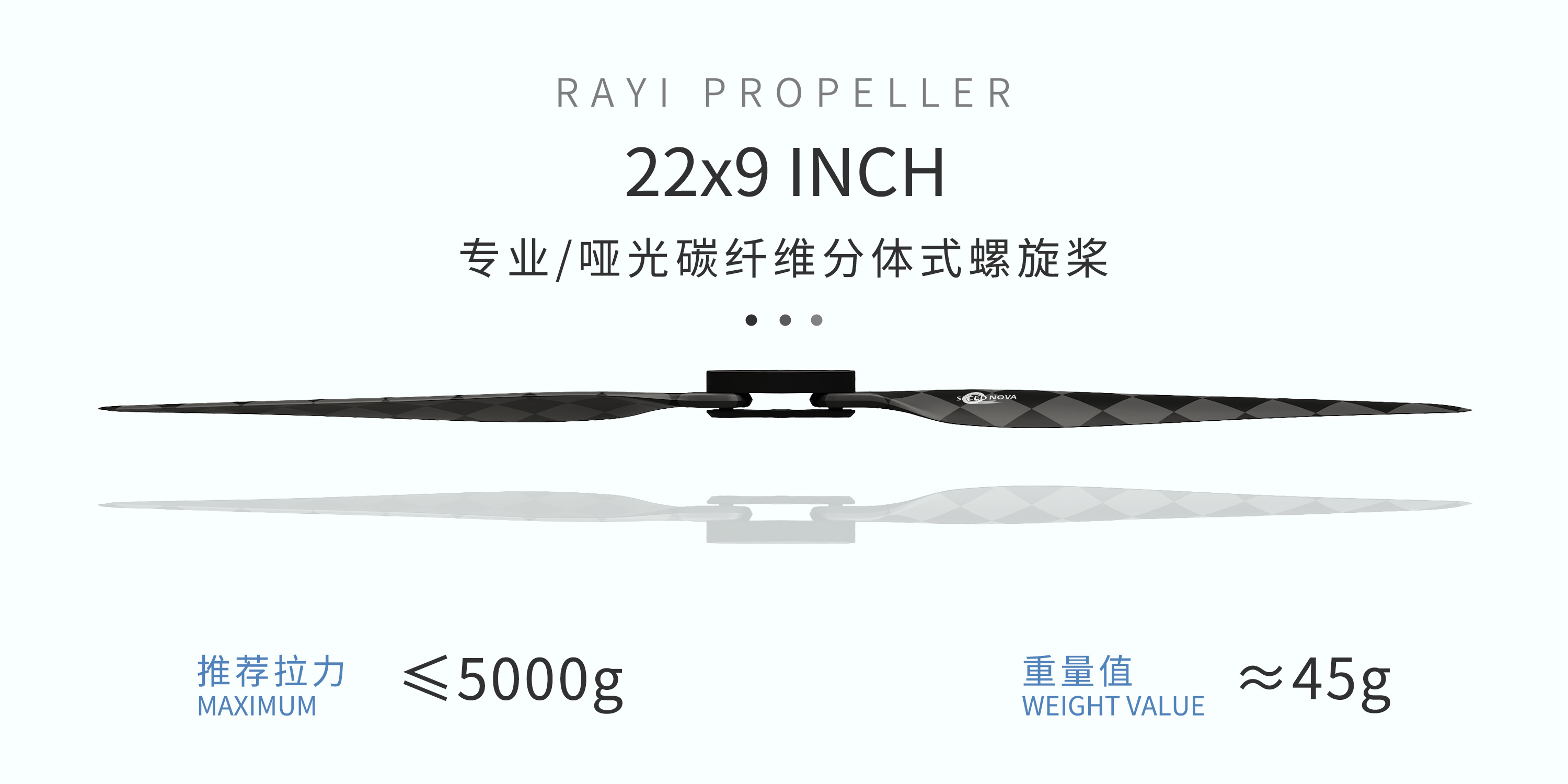

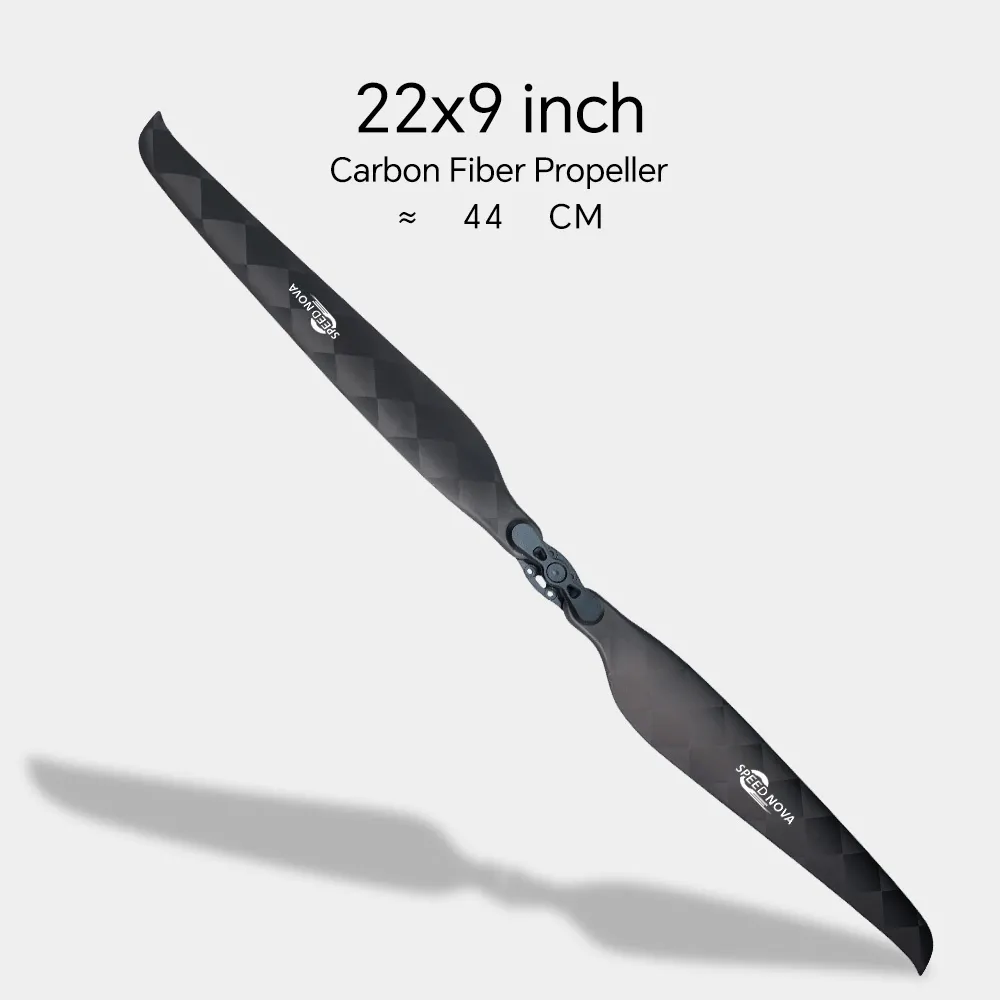

Product Name: 22x9 inch Ultra light carbon fiber folding CW/CCW Propeller
Diameter: 22 inches
Pitch: 9 inches

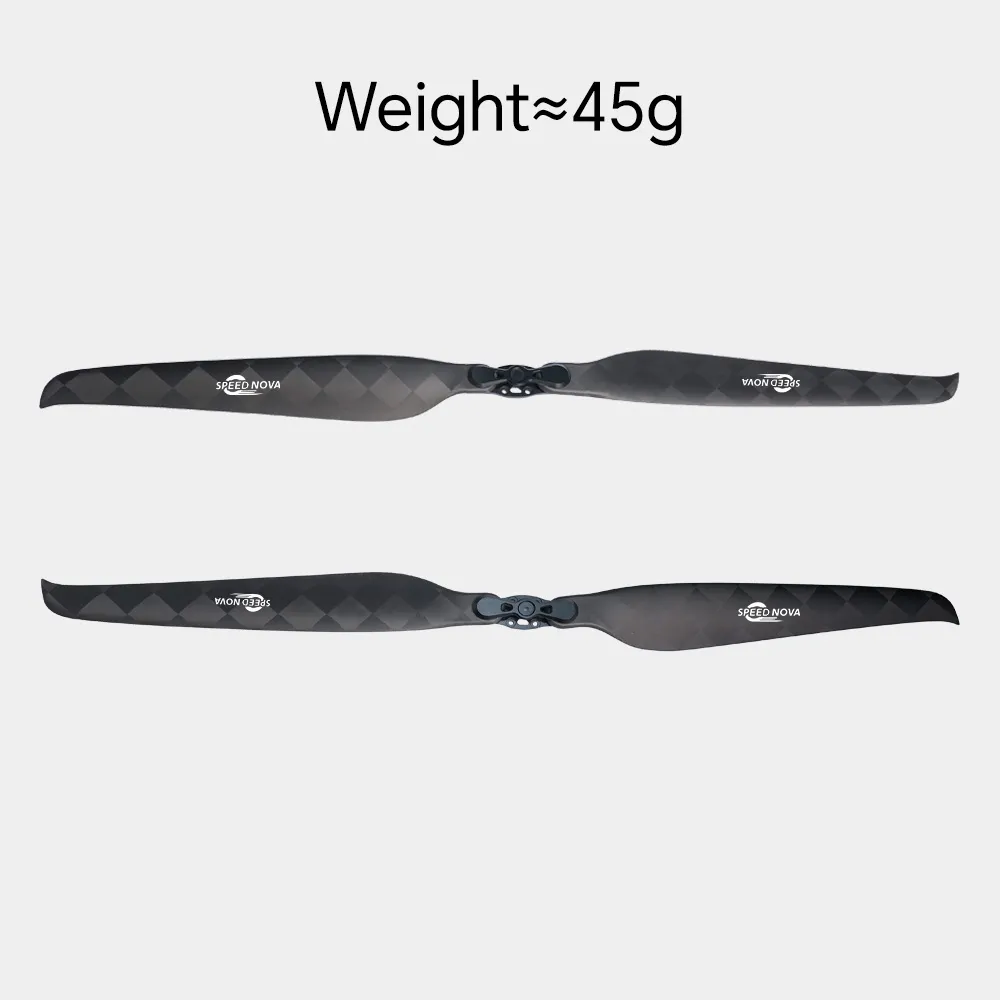

Weight: ≈45g
Applicable Models: Multi-Rotor
Thrust Limitation: ≤5000g
Optimum RPM: ≤4200 r/min
Operating Temperature: -40℃ to +60℃
Storage Temperature: -10℃ to +40℃
💡 We accept customized sizes and designs (OEM & ODM available).Talk to an Expert.
Our 22x9 Carbon Fiber Folding Propellers UAV folding props stand out with their ultra-light construction, weighing just 45g per pair, while delivering high strength and superior performance. Key highlights include:

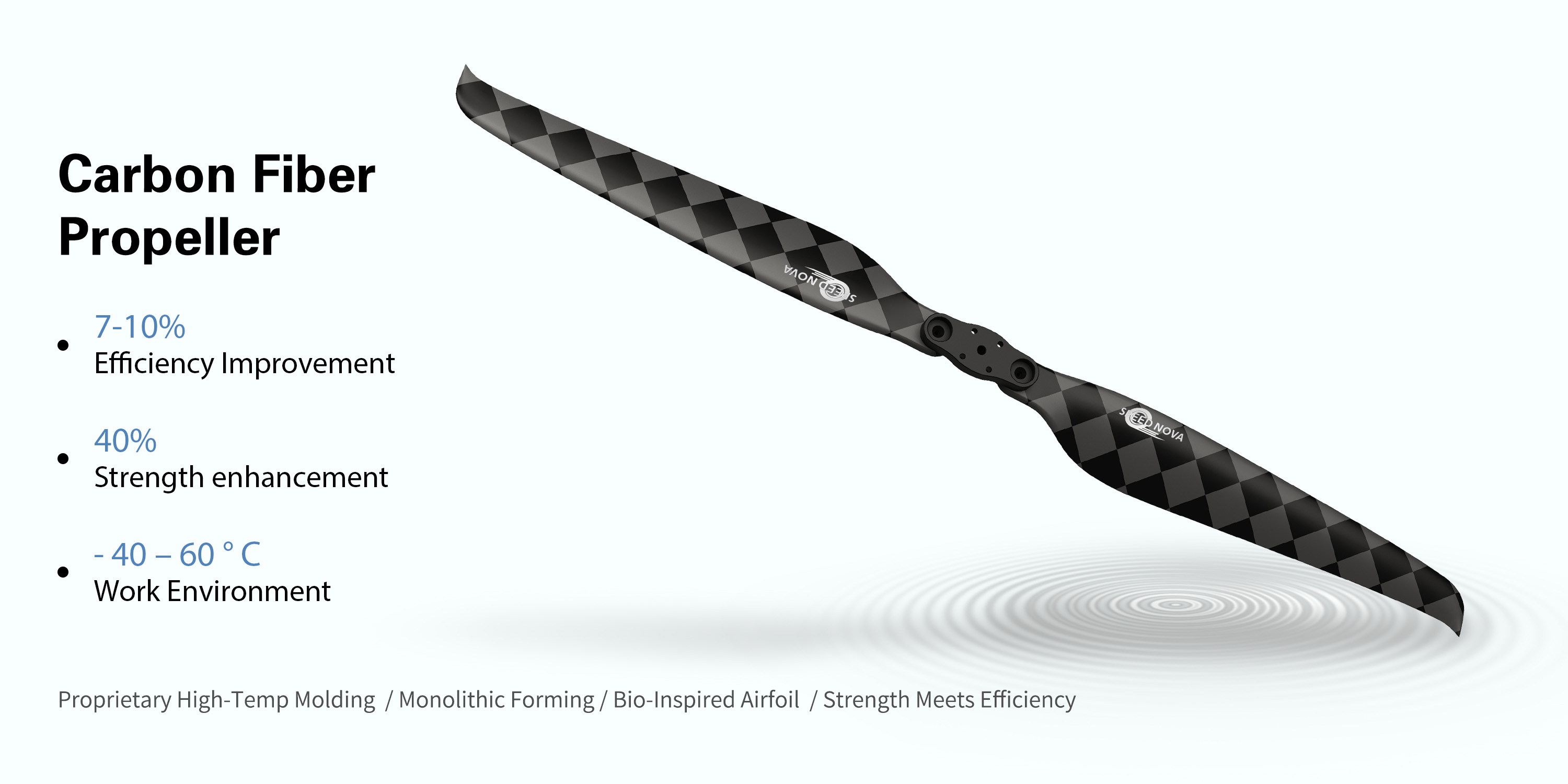

High-Efficiency Design: Achieve 7-12% better performance compared to similar market products high-efficiency carbon fiber props for aerial photography.

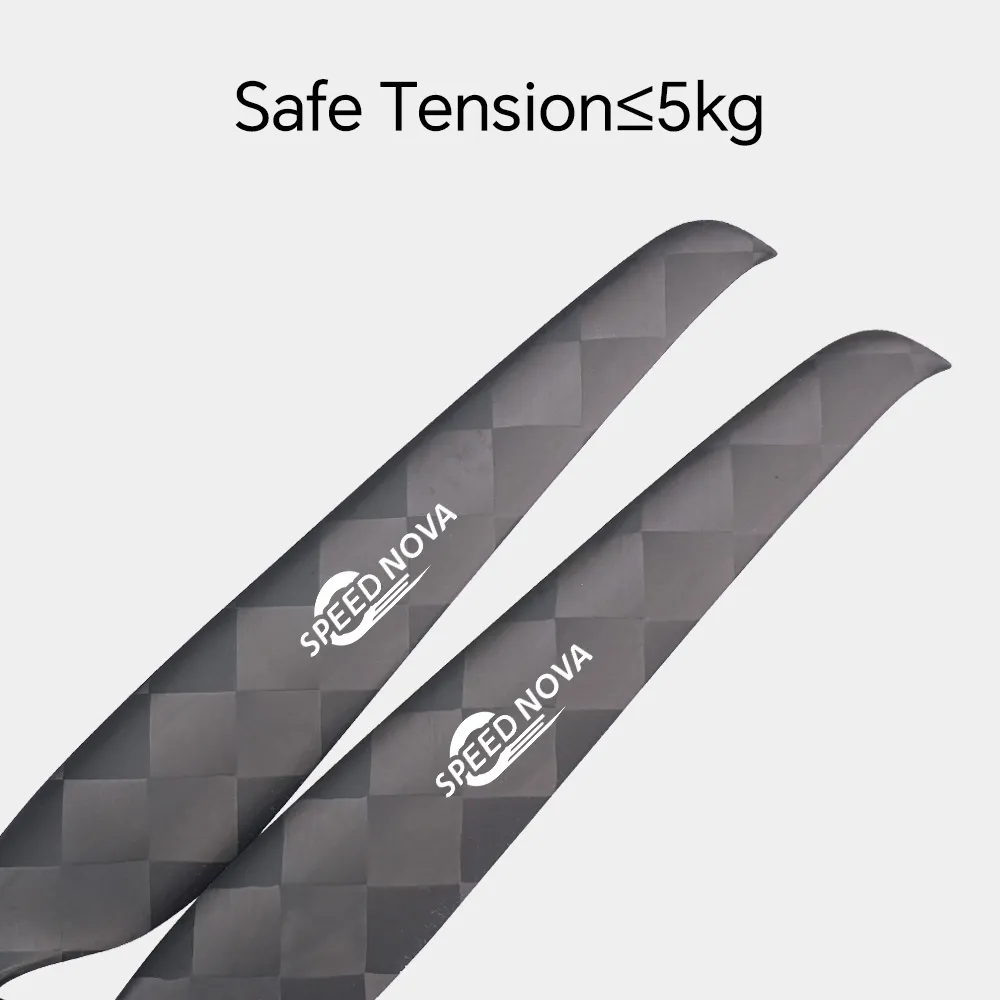

2x Safety Redundancy: Engineered for reliability with single-axis safe thrust ≤5000g and recommended quadcopter max takeoff weight ≤20kg 2x safety redundancy drone propeller.
Space-Saving Foldable Mechanism: Combines the convenience of folding for easy transport with uncompromised thrust and durability carbon fiber foldable propeller for drones.
Low-Noise Operation: Perfect for sensitive environments, reducing vibration and sound for smoother flights low-noise drone propeller.
Whether you're upgrading your setup or building from scratch, the 22x9 Carbon Fiber Folding Propellers lightweight folding UAV blades provide the perfect balance of portability and power. Get a Custom Quote.
2 × 22x9 Inch CW Carbon Fiber Propellers (45g each)
2 × 22x9 Inch CCW Carbon Fiber Propellers (45g each)
Tailored for real-world use, our 22x9 Carbon Fiber Folding Propellers excel in specialized drone operations:
Mapping Drones: Optimized for extended flights and precise data collection in surveying tasks,extreme environment drone propellers for inspection.
Extreme Environment Large Aerial Photography Drones: Built to withstand harsh conditions like extreme temperatures and high winds, ensuring reliable performance for stunning visuals-high-thrust folding props.
Inspection Drones: Compact design saves space on your UAV, allowing for longer patrols and detailed inspections in critical areas-portable drone propellers with performance.
These 22x9 Carbon Fiber Folding Propellers carbon fiber multirotor folding blades are engineered to handle the rigors of professional drone work, from remote mapping to infrastructure patrols.
What sets our 22x9 Carbon Fiber Folding Propellers apart is their superior engineering. We've achieved a 7-12% efficiency gain over competitors, while maximizing space efficiency on your drone. This means longer flight times and better energy use without sacrificing thrust. For multicopter setups, these propellers support high-torsional rigidity and precise positioning, making them a top choice for custom carbon fiber UAV propellers.
Additionally, Rayi carbon fiber folding propellers are compatible with any brushless electric motor on the market, such as Hacker Motor, T-motor, DJI, KDE, and others. Rayi propellers maximize the efficiency of quadcopter motors because the high stiffness and lightweight nature of carbon fiber minimize vibration. The lightweight Rayi carbon fiber propeller exhibits high bending resistance. With reduced kinetic energy, it generates smaller amplitude vibrations and requires shorter acceleration/deceleration times. Furthermore, Rayi's optimized airfoil profile lowers aerodynamic drag while producing greater thrust, thereby maximizing motor efficiency.
Backed by rigorous testing, our 22x9 Carbon Fiber Folding Propellers meet the highest standards:
ISO 9001 Certified: Ensuring quality in every unit.
Static Balance: R50% imbalance ≤0.05g.
Dynamic Balance: Compliant with G6.0 standards.
Fatigue and Strength Tests: Proven durability under extreme loads.
Ground Test Reports: Available for download, showing real-world performance metrics.
Get our full test reports to see how these 22x9 Carbon Fiber Folding Propellers outperform the competition in efficiency and reliability.
This product comes with a standard warranty, ensuring peace of mind and reliable support for your purchase.
Contact us today for custom quotes on 22x9 Carbon Fiber Folding Propellers or explore compatibility with popular motors like T-Motor and DJI systems UAV props.

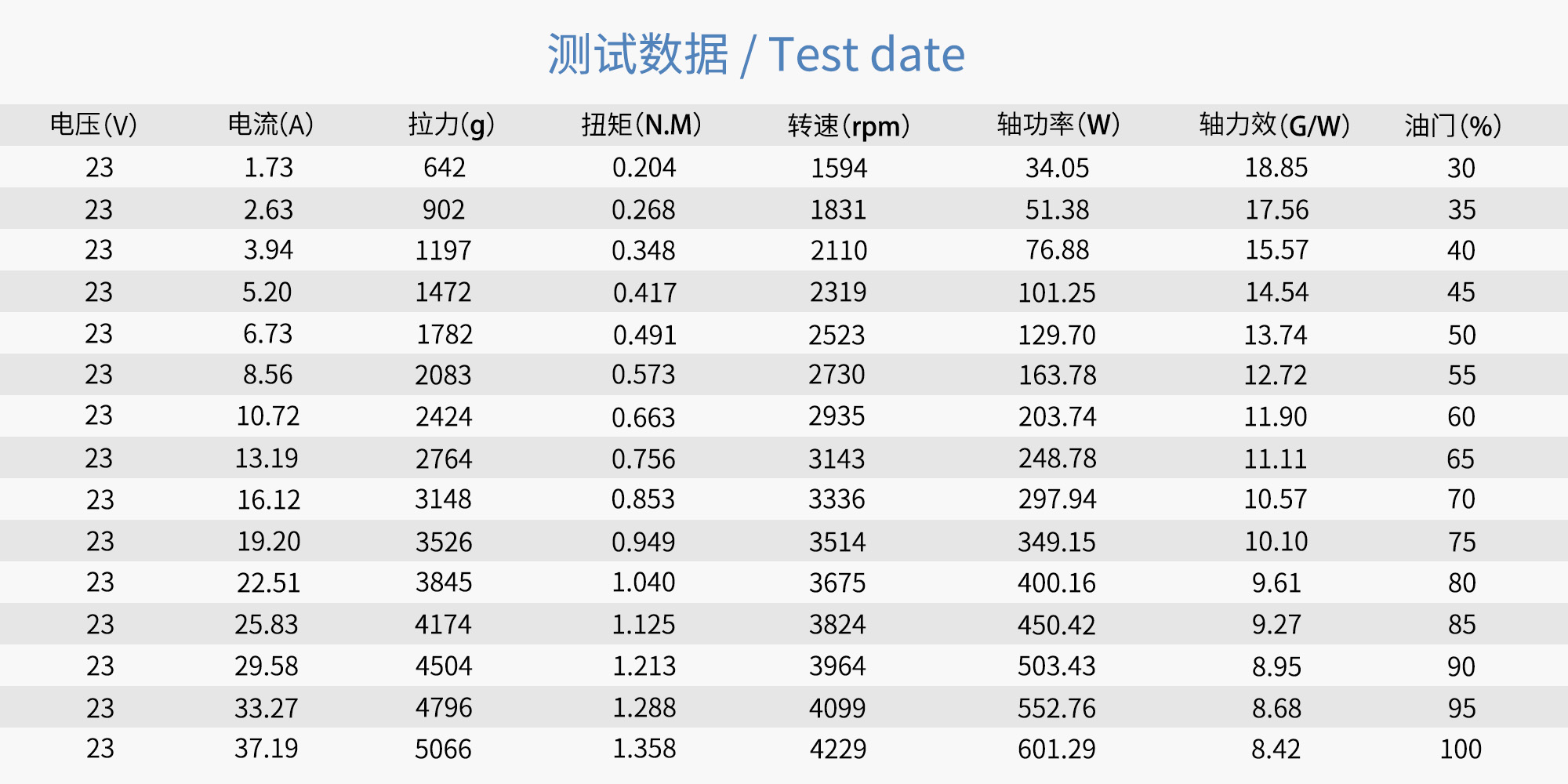

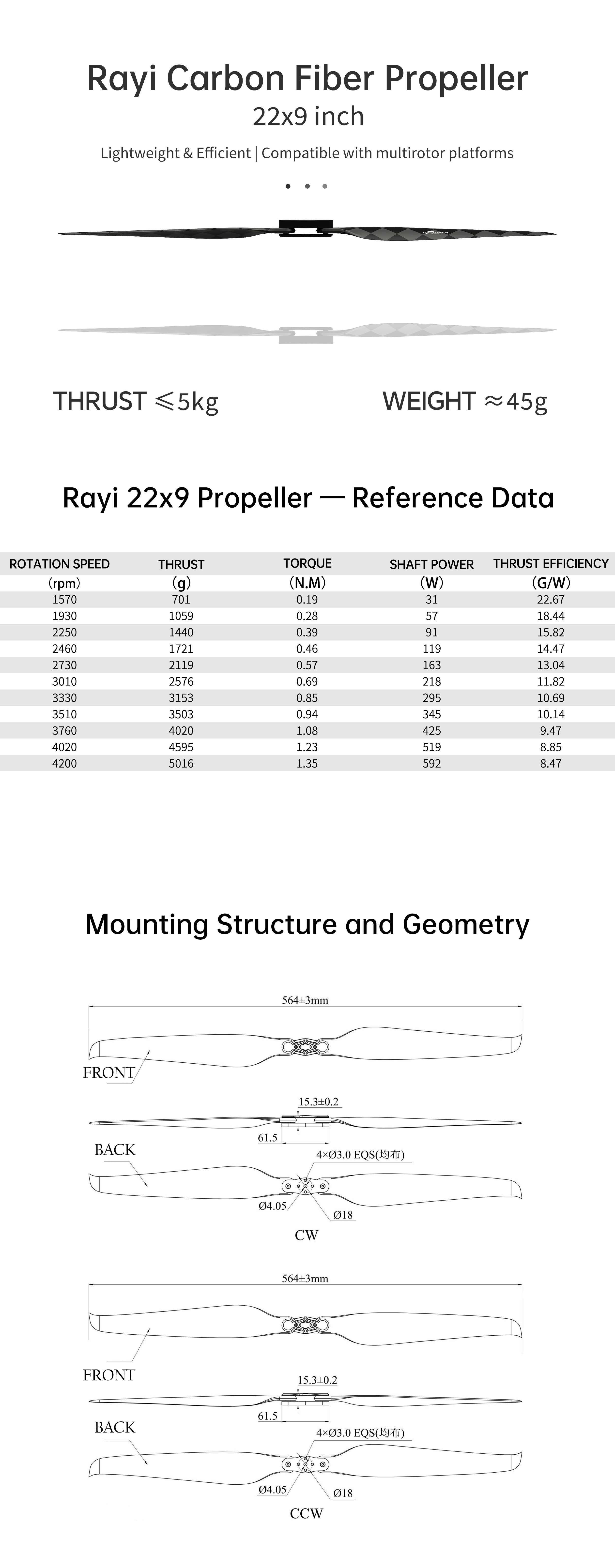

Technical Parameter
We follow strict industrial standards:
| 电压(V) | 电流(A) | 拉力(g) | 扭矩(N.M) | 转速(rpm) | 轴功率(W) | 轴力效(G/W) | 油门(%) |
| 23 | 1.73 | 642 | 0.204 | 1594 | 34.05 | 18.85 | 30 |
| 23 | 2.63 | 902 | 0.268 | 1831 | 51.38 | 17.56 | 35 |
| 23 | 3.94 | 1197 | 0.348 | 2110 | 76.88 | 15.57 | 40 |
| 23 | 5.2 | 1472 | 0.417 | 2319 | 101.25 | 14.54 | 45 |
| 23 | 6.73 | 1782 | 0.491 | 2523 | 129.7 | 13.74 | 50 |
| 23 | 8.56 | 2083 | 0.573 | 2730 | 163.78 | 12.72 | 55 |
| 23 | 10.72 | 2424 | 0.663 | 2935 | 203.74 | 11.9 | 60 |
| 23 | 13.19 | 2764 | 0.756 | 3143 | 248.78 | 11.11 | 65 |
| 23 | 16.12 | 3148 | 0.853 | 3336 | 297.94 | 10.57 | 70 |
| 23 | 19.2 | 3526 | 0.949 | 3514 | 349.15 | 10.1 | 75 |
| 23 | 22.51 | 3845 | 1.04 | 3675 | 400.16 | 9.61 | 80 |
| 23 | 25.83 | 4174 | 1.125 | 3824 | 450.42 | 9.27 | 85 |
| 23 | 29.58 | 4504 | 1.213 | 3964 | 503.43 | 8.95 | 90 |
| 23 | 33.27 | 4796 | 1.288 | 4099 | 552.76 | 8.68 | 95 |
| 23 | 37.19 | 5066 | 1.358 | 4229 | 601.29 | 8.42 | 100 |
As a professional ISO 9001 certified propeller manufacturer, we provide documentation support for industrial drone integrators and OEM clients.Contact us.
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
The Rayi 22x9 Inch Ultra Light Carbon Fiber Folding Propellers are expertly designed for high-performance multi-rotor models, offering superior flight efficiency and durability. Each propeller weighs approximately 45g, ensuring minimal impact on your drone’s overall weight while enhancing overall flight performance. Crafted from high-strength carbon fiber, these propellers are ideal for achieving extended flight times and improved maneuverability.
Additionally, Rayi carbon fiber folding propellers are compatible with any brushless electric motor on the market, such as Hacker Motor, T-motor, DJI, KDE, and others. Rayi propellers maximize the efficiency of quadcopter motors because the high stiffness and lightweight nature of carbon fiber minimize vibration. The lightweight Rayi carbon fiber propeller exhibits high bending resistance. With reduced kinetic energy, it generates smaller amplitude vibrations and requires shorter acceleration/deceleration times. Furthermore, Rayi's optimized airfoil profile lowers aerodynamic drag while producing greater thrust, thereby maximizing motor efficiency.
Optimized Airfoil Design: The advanced aerodynamic profile improves lift and reduces drag, enhancing flight efficiency for longer flight times and greater stability.
Lightweight Construction: Weighing just 45g per propeller, these blades enhance motor responsiveness and overall flight dynamics without adding excessive weight.
High-Strength Carbon Fiber: Made with premium carbon fiber and epoxy, these propellers are designed to maintain their structural integrity while remaining lightweight.
Extended Flight Duration: The combination of strength and lightness allows for longer flight times, making them perfect for extended missions and professional applications.
Convenient Foldable Design: The foldable construction makes storage and transportation easy, adding portability to your drone setup.
2 × 22x9 Inch CW Carbon Fiber Propellers (45g each)
2 × 22x9 Inch CCW Carbon Fiber Propellers (45g each)
This product comes with a standard warranty, ensuring peace of mind and reliable support for your purchase.
Packaging & Shipping
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
