Diameter: 28 inches
Pitch: 12 inches
Weight: ≈86g
Applicable Models: Multi-Rotor
Thrust Limitation: ≤8000g
Optimum RPM: ≤3200 r/min
Operating Temperature: -40℃ to +60℃
Storage Temperature: -10℃ to +40℃
Folding type 28*12 inch
Ultra light High strength High efficiency Custom propeller
Product Description
Specification
Technical Specifications:

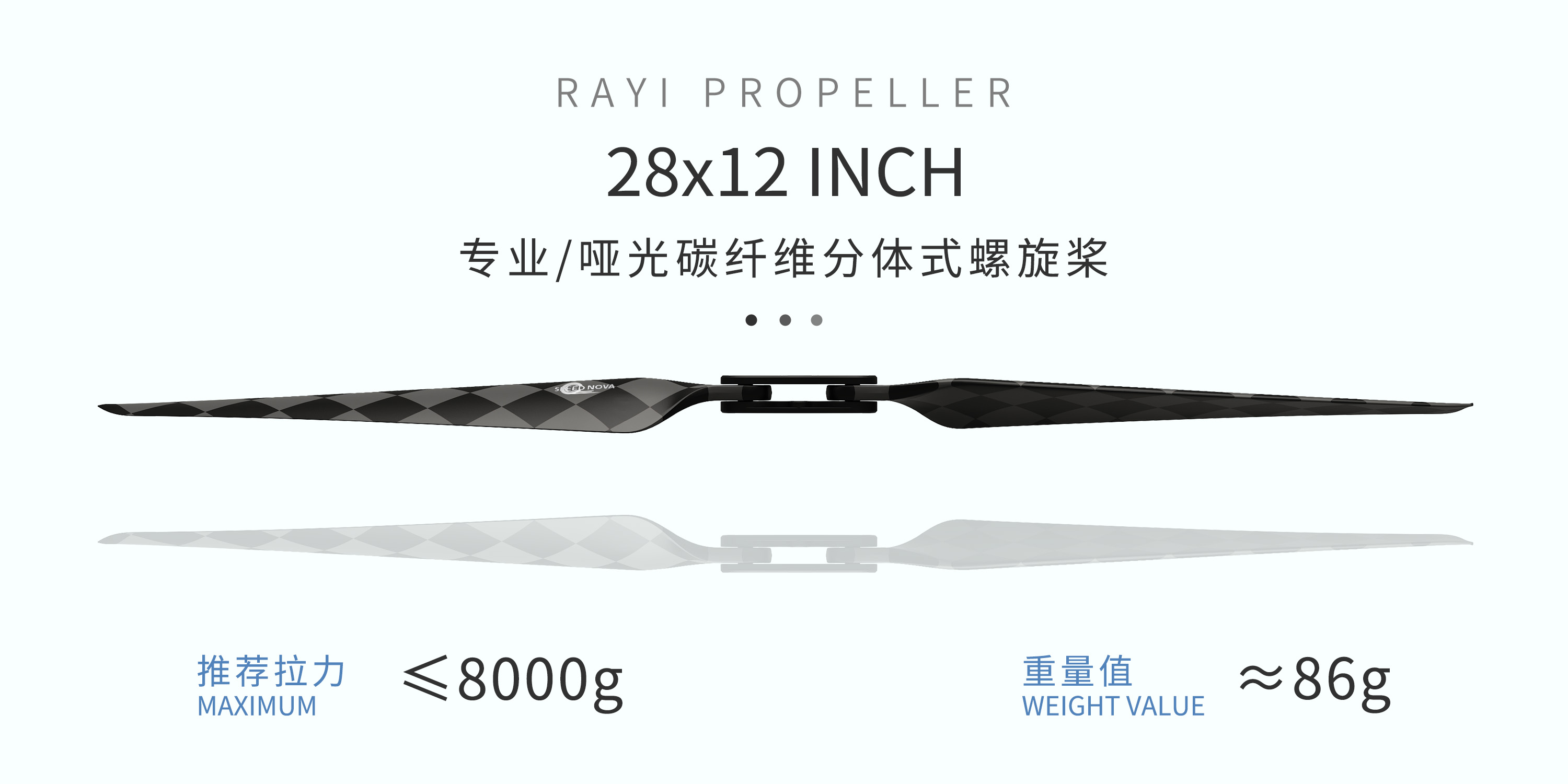

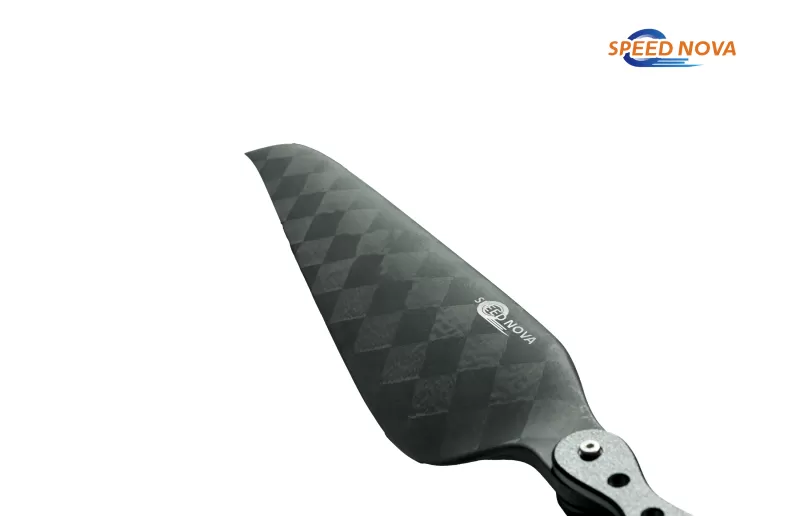

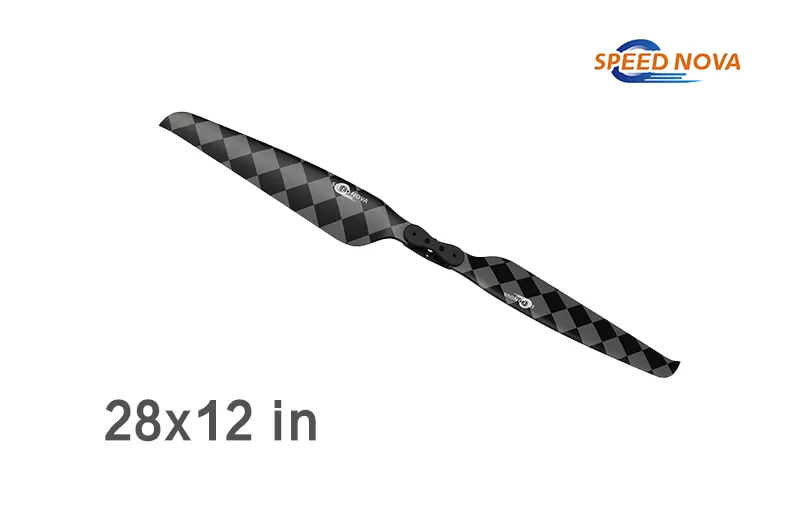

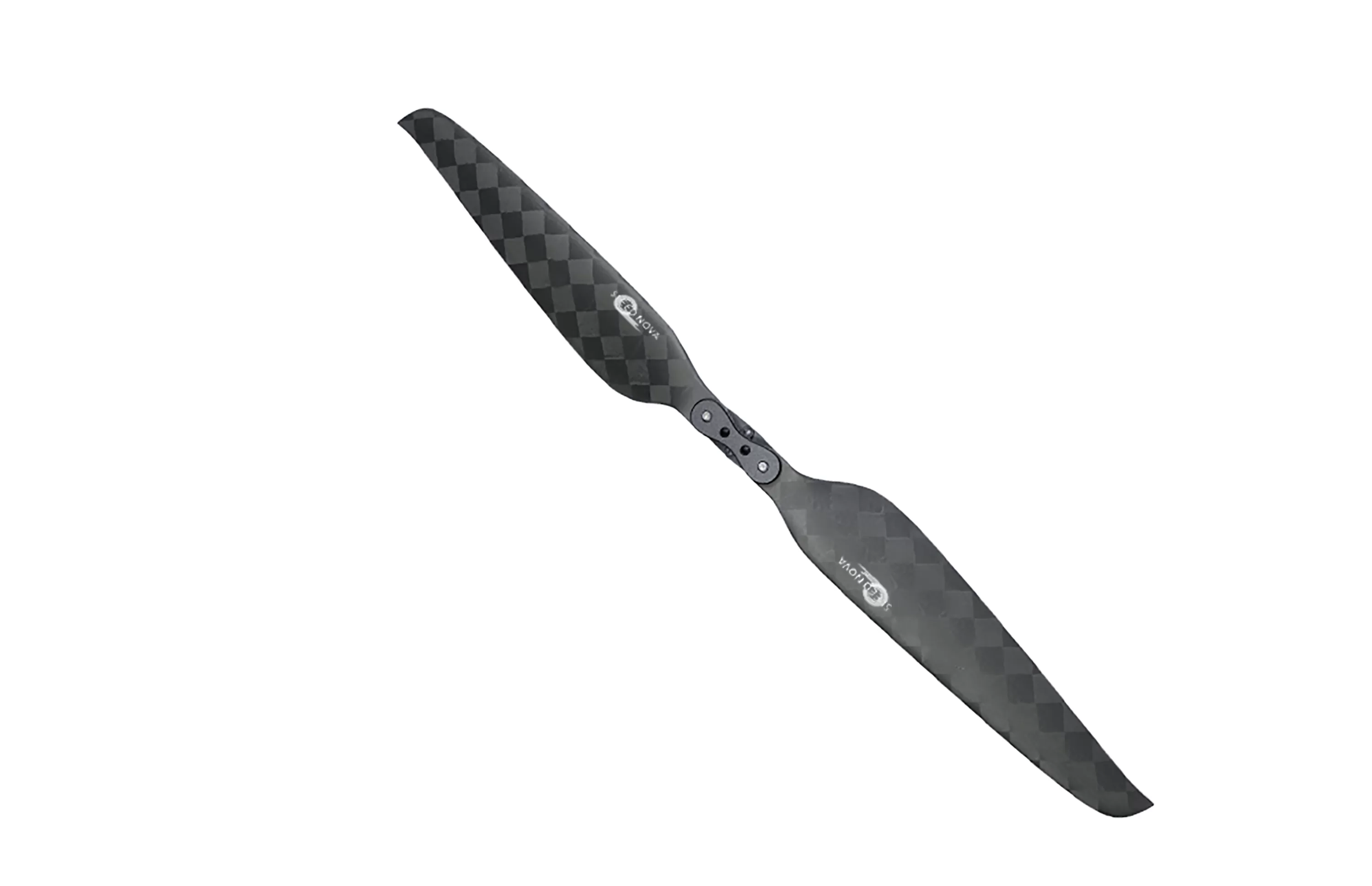

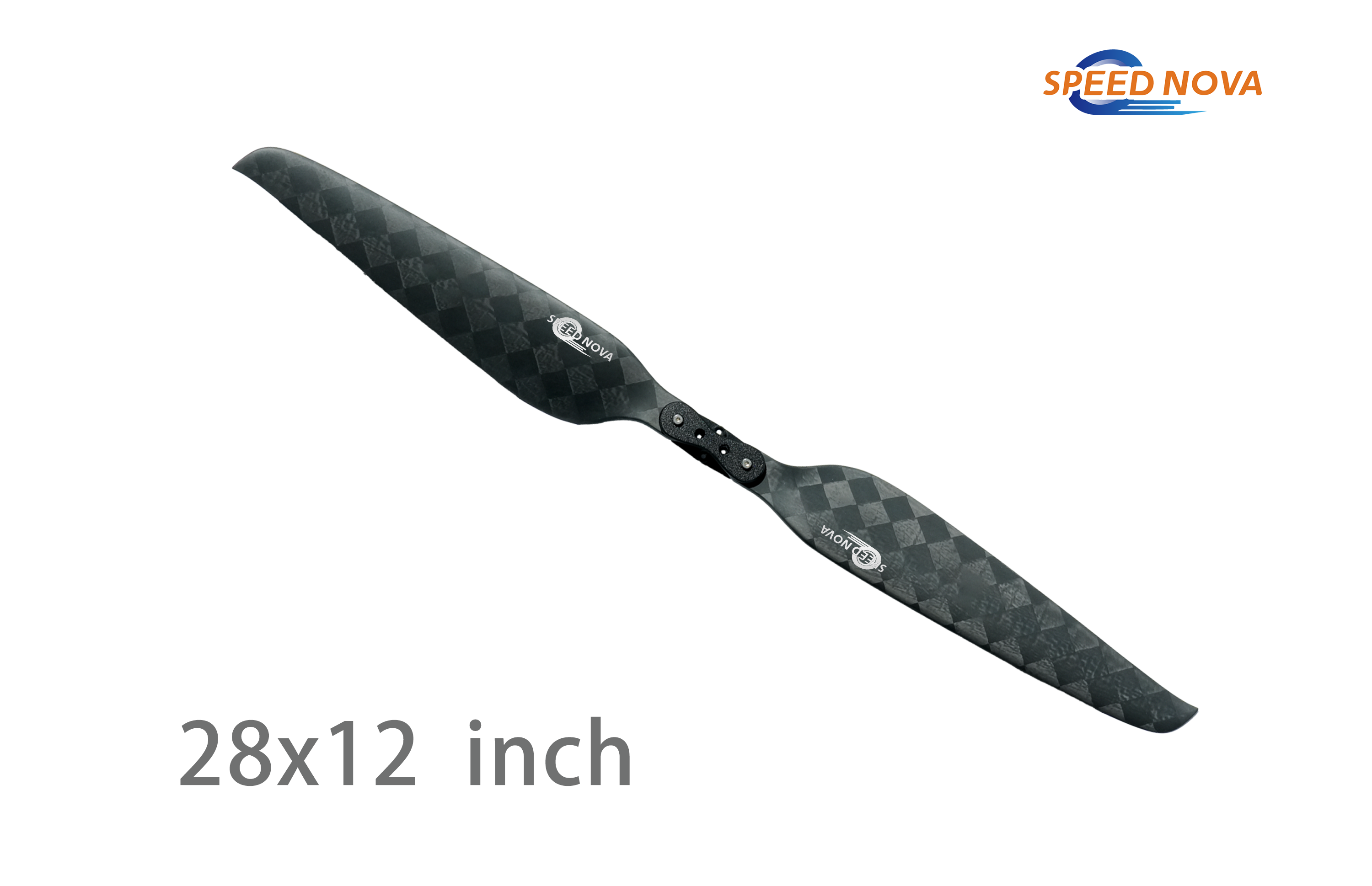

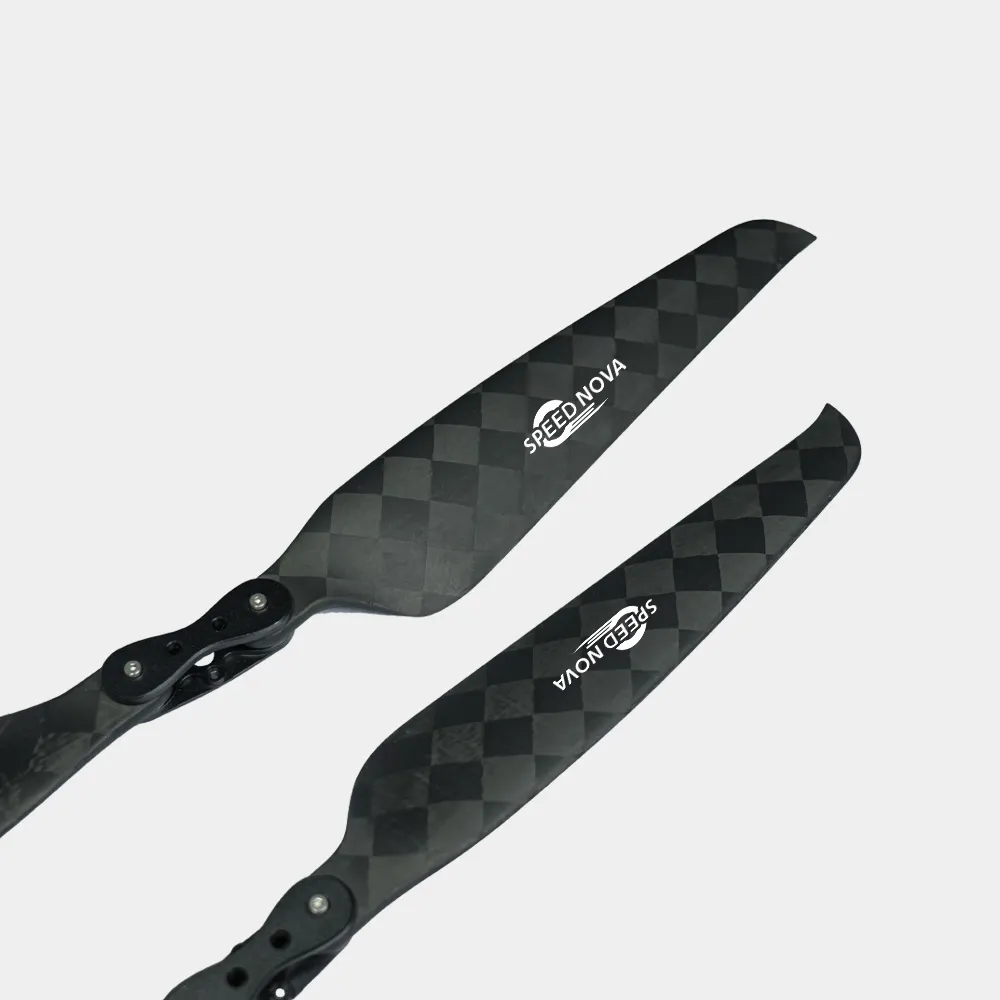

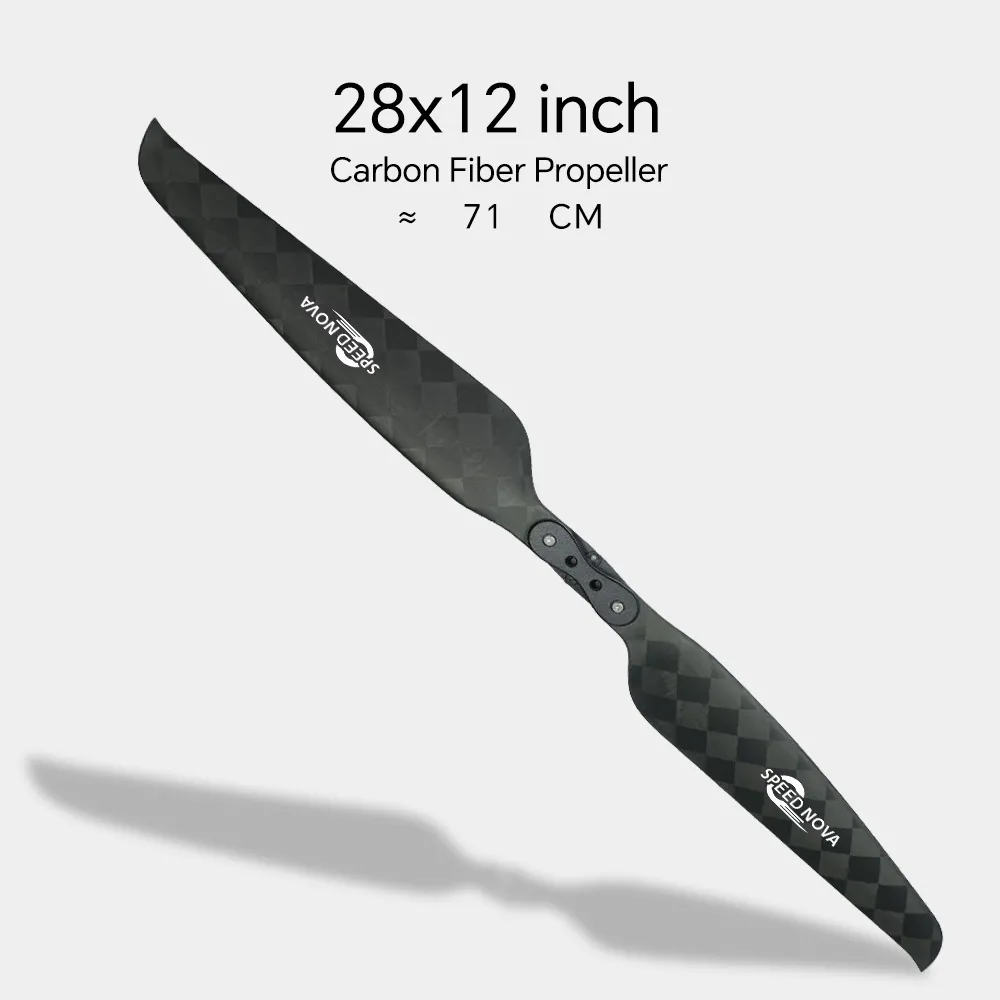

Product Name: 28x12 inch Ultra light carbon fiber folding CW/CCW Propeller
Diameter: 28 inches
Pitch: 12 inches
Weight: ≈86g
Applicable Models: Multi-Rotor
Thrust Limitation: ≤8000g
Optimum RPM: ≤3200 r/min
Operating Temperature: -40℃ to +60℃
Storage Temperature: -10℃ to +40℃
💡 We accept customized sizes and designs (OEM & ODM available).

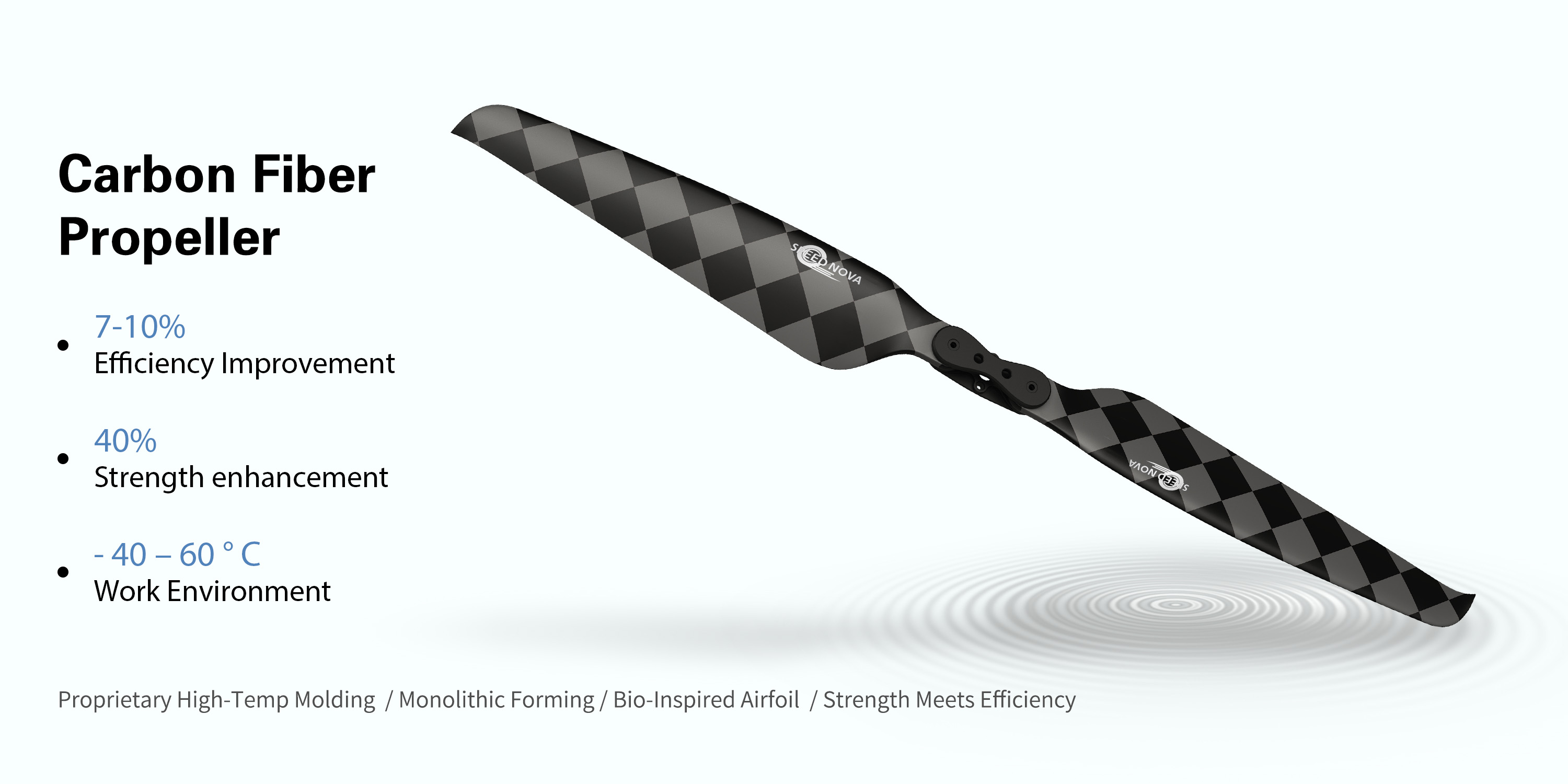

The Rayi 28x12 Inch Ultra Light Carbon Fiber Folding Propellers are expertly designed for high-performance multi-rotor models, offering outstanding flight efficiency and durability. Each propeller weighs approximately 86g, ensuring minimal impact on your drone’s overall weight while optimizing flight performance. Constructed from high-strength carbon fiber, these propellers provide exceptional strength and endurance, enabling longer flight times and improved handling.
2 × 28x12 Inch CW Carbon Fiber Propellers (86g each)
2 × 28x12 Inch CCW Carbon Fiber Propellers (86g each)
Our product line encompasses propellers of various sizes, materials, and rotation directions to ensure precise flight control and stability. For propellers that require tools to assemble them, it is recommended to hand-tighten them first and then lightly tighten with a tool for about 1/4 turn, ensuring they are secure without overdoing it. Before each flight, gently pull on the propeller to check if it is stable.
This product comes with a standard warranty, ensuring peace of mind and reliable support for your purchase.

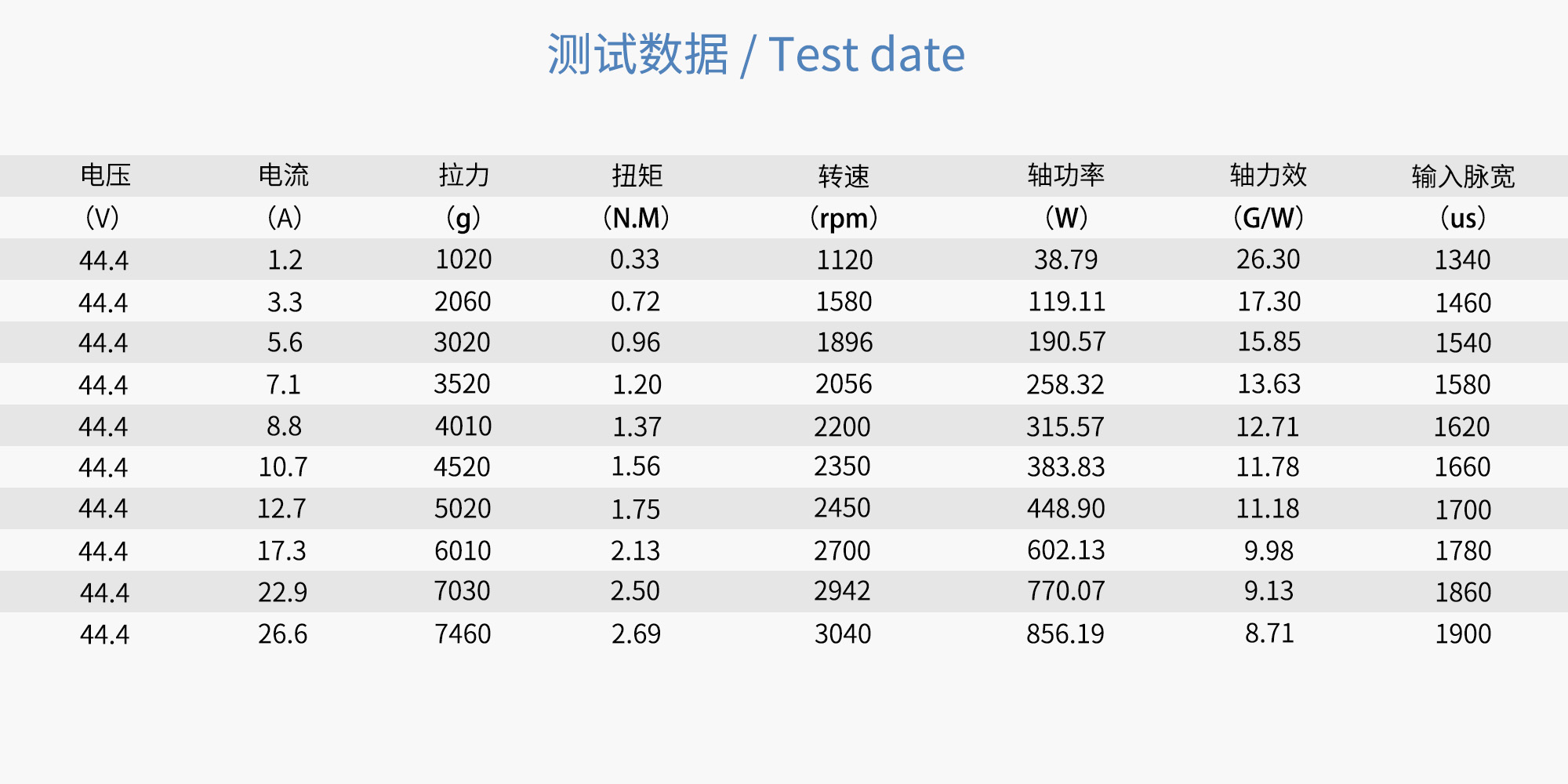

Technical Parameter
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
