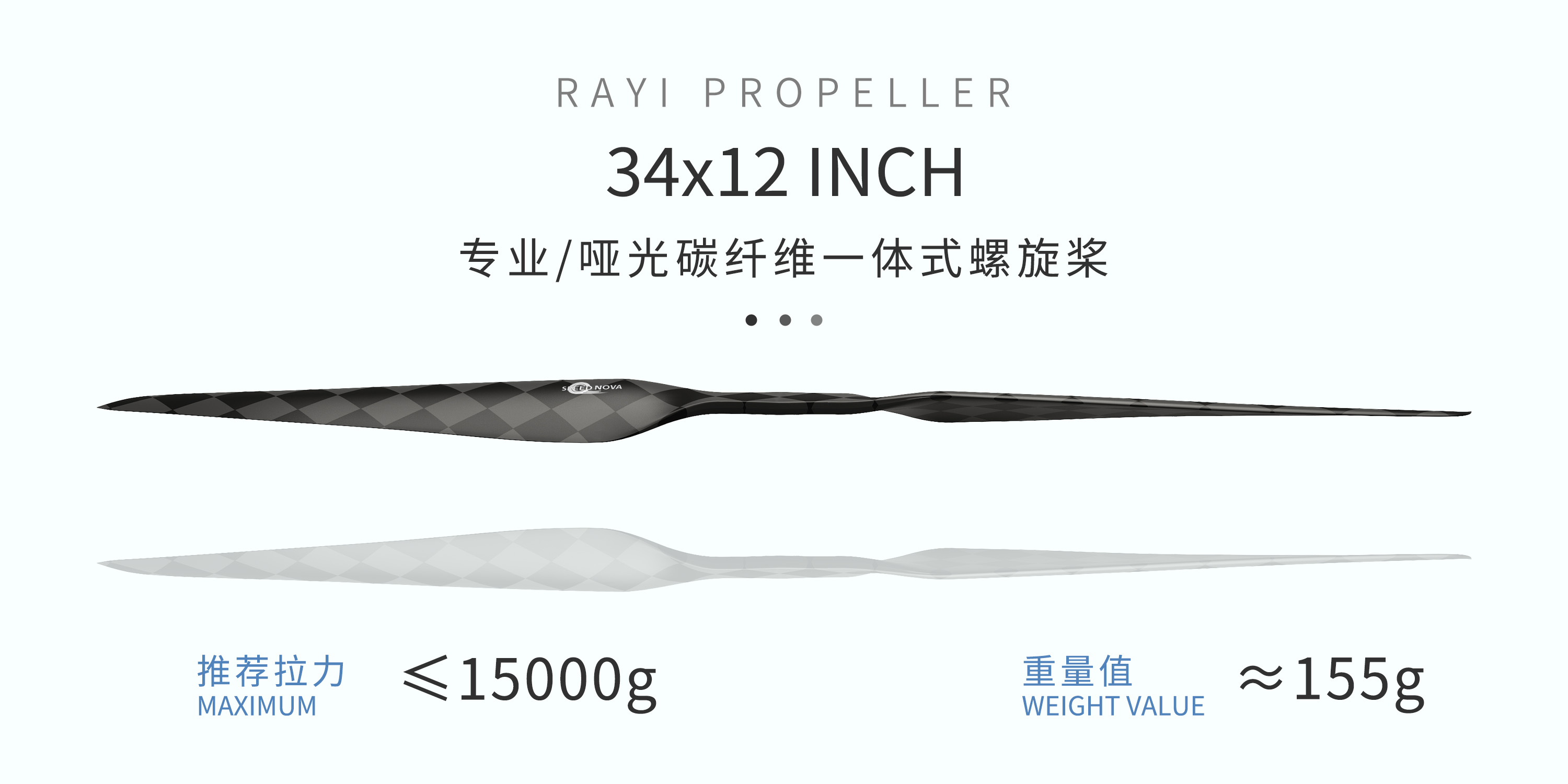

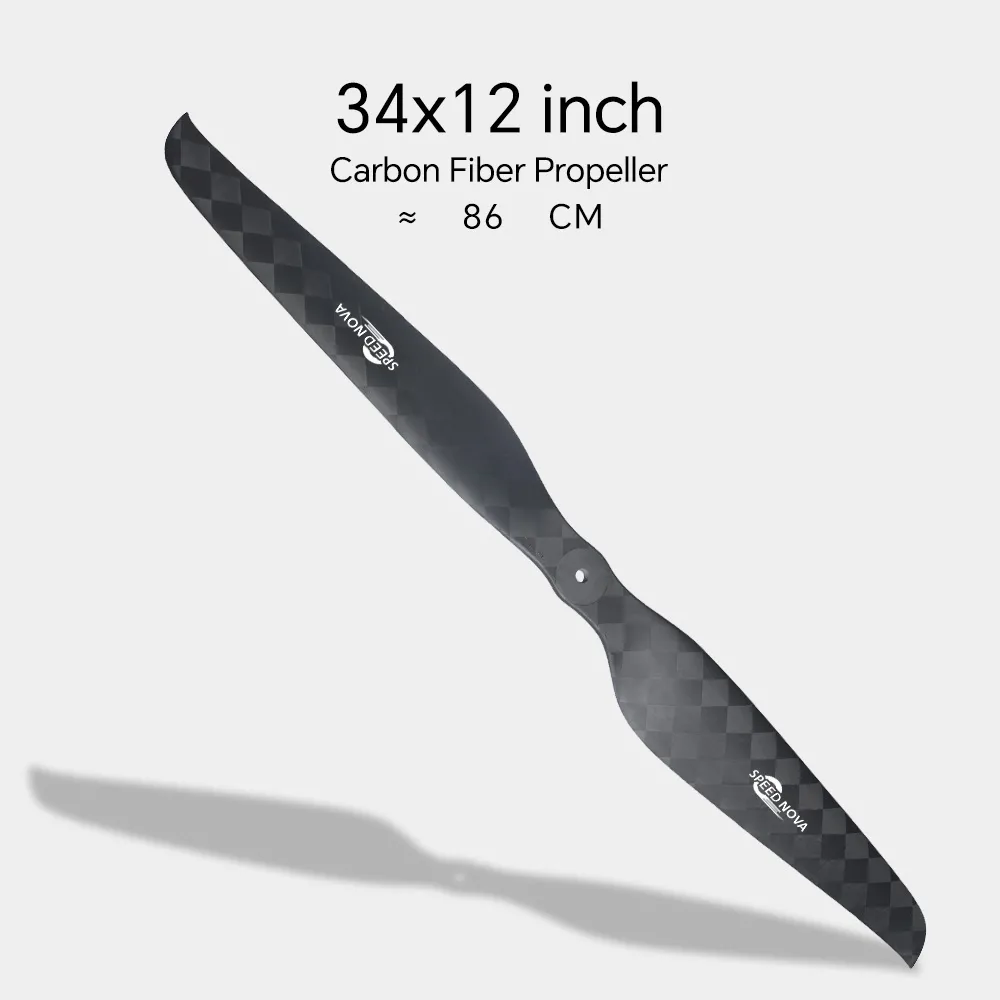

RAYI 34X12 CF FIXED PROP

RAYI 34X12 CF FIXED PROP

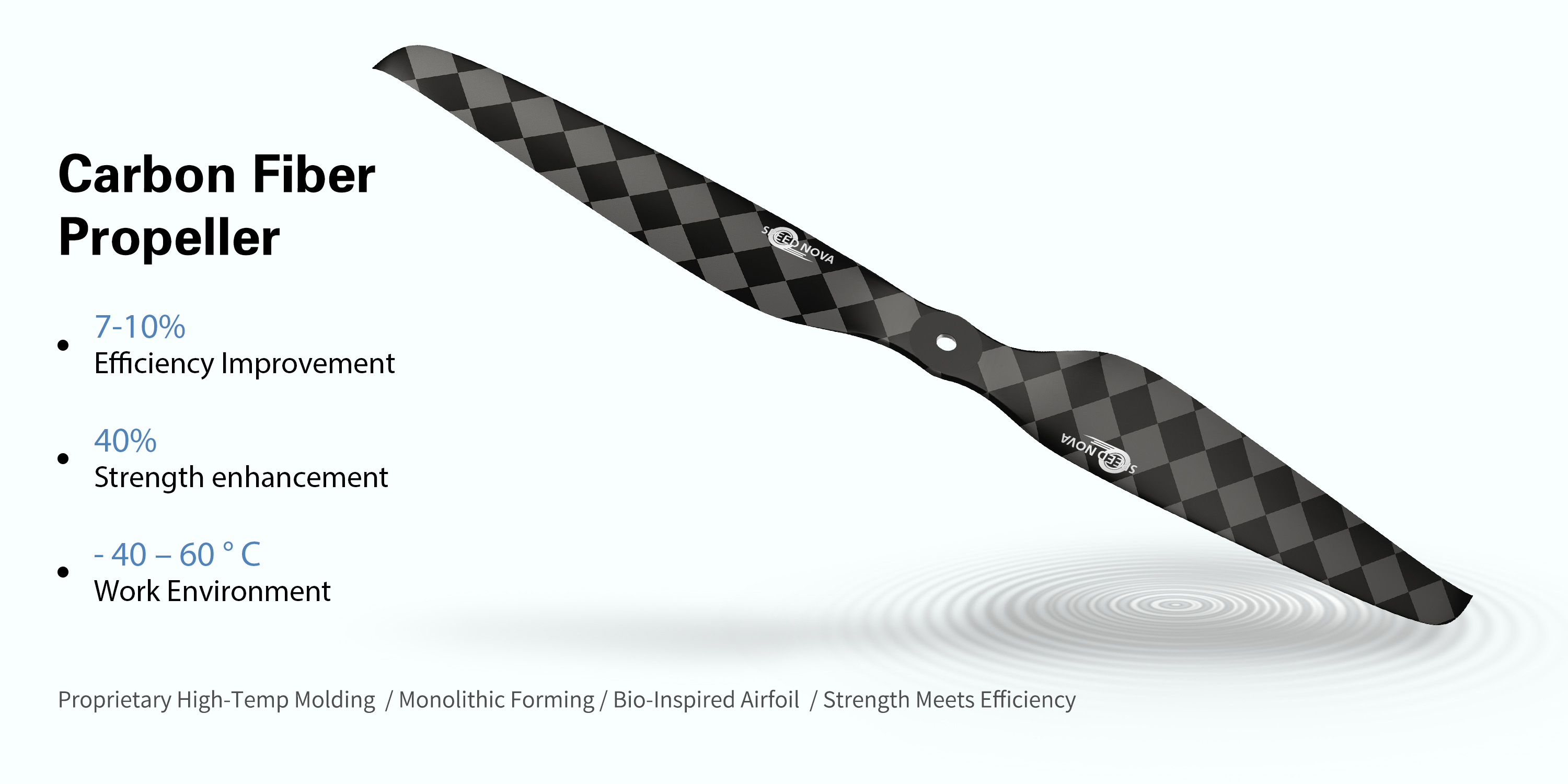

Ultra light, durable, and highly efficient

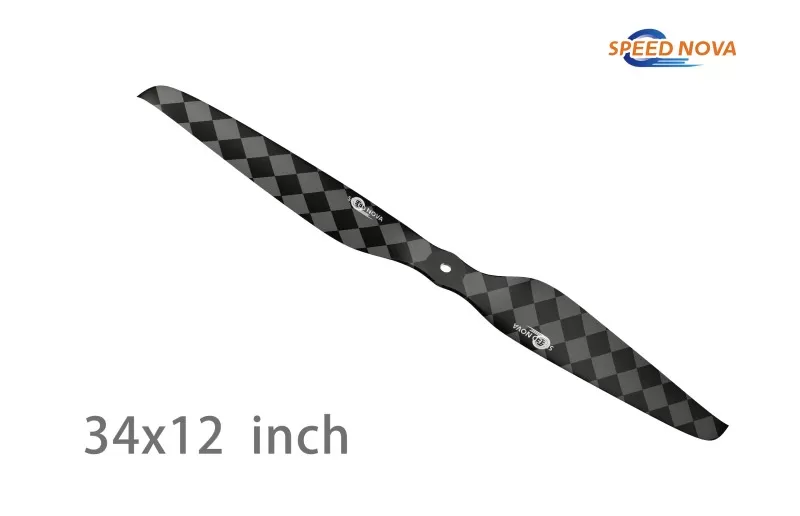

  • Straight type 34*12 inch

    Multirotor & Fixed wing

Product Description

Specification

Product name: 34*12 inch Ultra light carbon fiber integrated CW/CCW Propeller

Model: 34*12Y

Diameter (inches): 34

Pitch (inches): 12

Material: carbon fiber and epoxy

Surface Treatment : Polished or Frosted

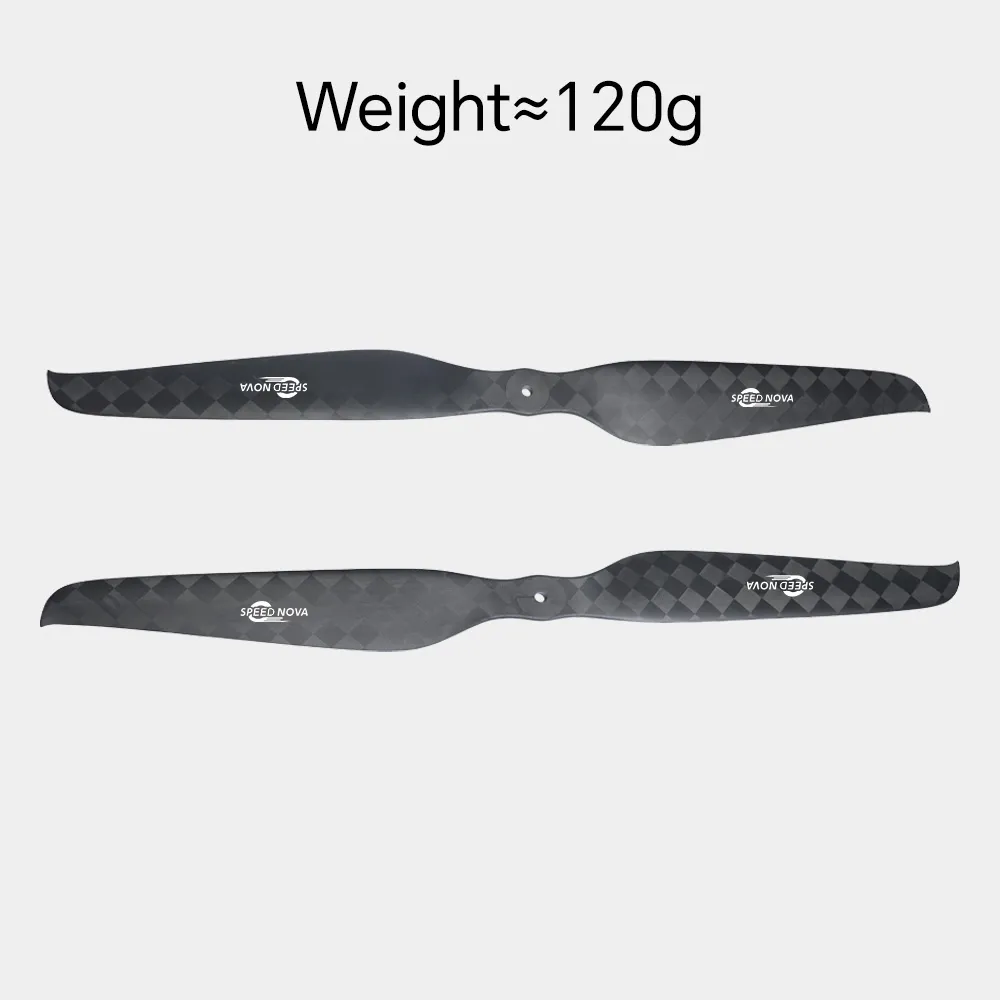

Single net weight: 91.2g

Installation method: Screw fixation

Applicable models: Multi rotor,Vertical fixed wing

Thrust Limitation: ≤2400r/min

Optimum RPM: ≤10000g

Working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+40℃


34X12 CF FIXED PROP

34X12 CF FIXED PROP

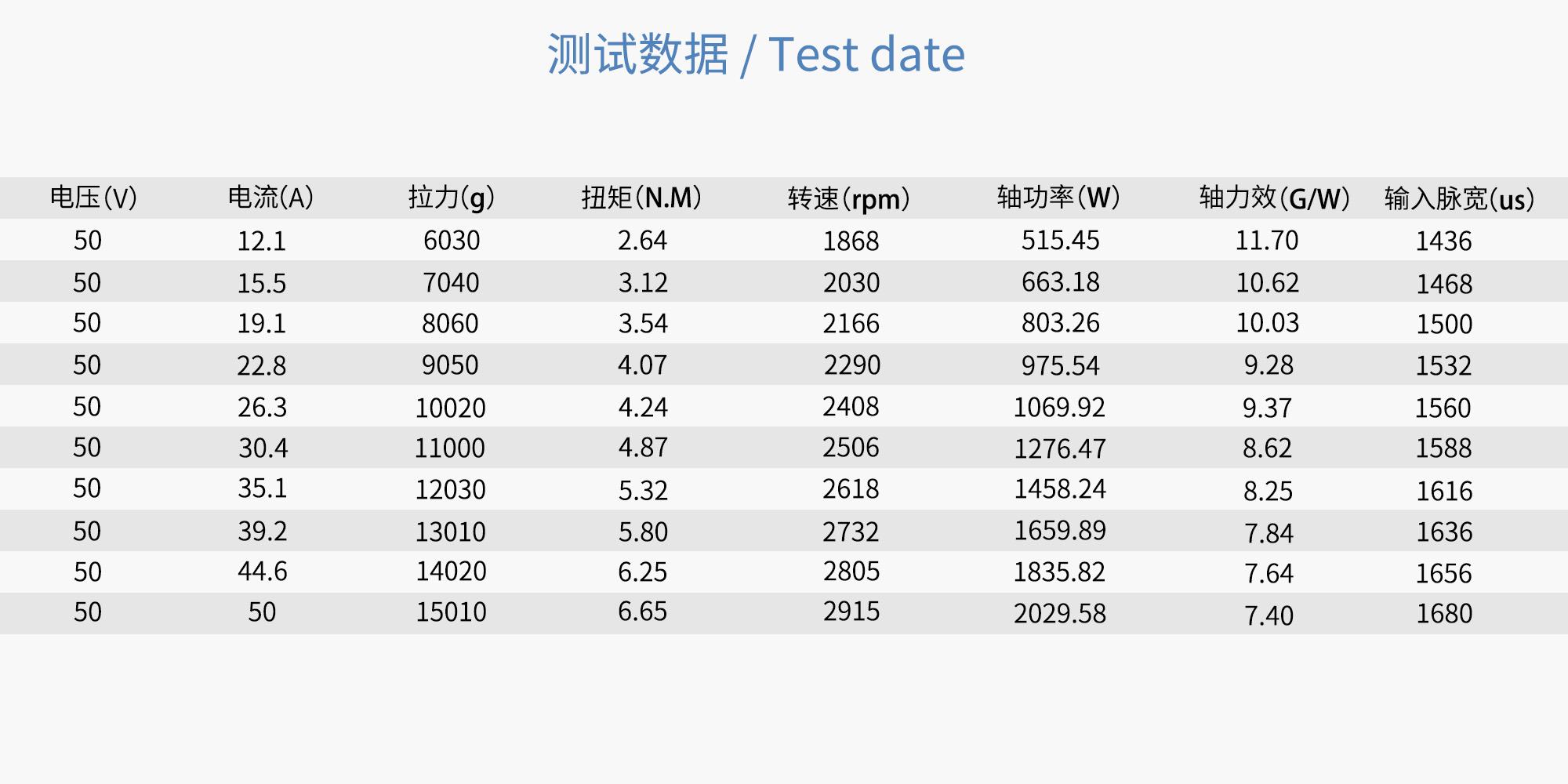

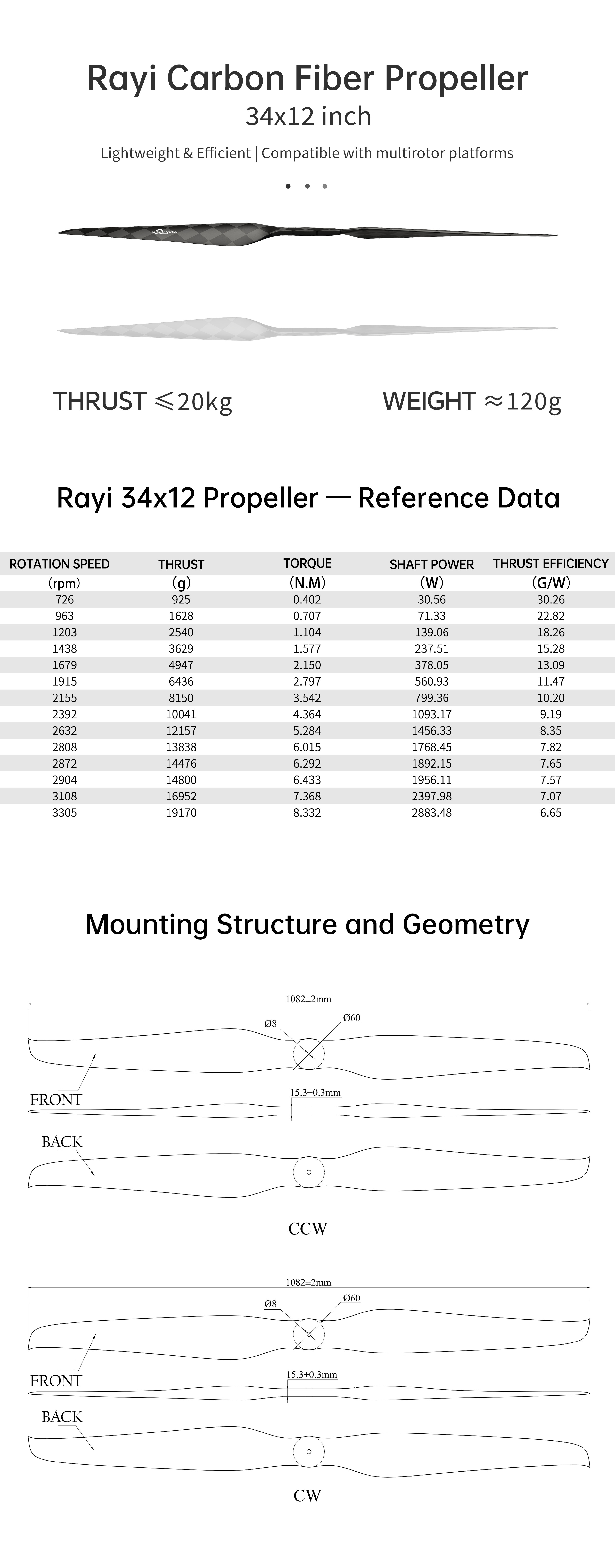

Technical Parameter

34X12 CF FIXED PROP

34X12 CF FIXED PROP




Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

34X12 CF FIXED PROP

If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
