The Rayi 20x6.5 Carbon Fiber CW Drone Propeller features an ultra-lightweight design at just 31g, with a thrust limitation of ≤5300r/min and an optimum RPM of ≤4000g, ensuring high efficiency and reliable performance for professional drone applications.
Straight type 20*6.5 inch
Price 89 usd/pair
Product Description
Specification

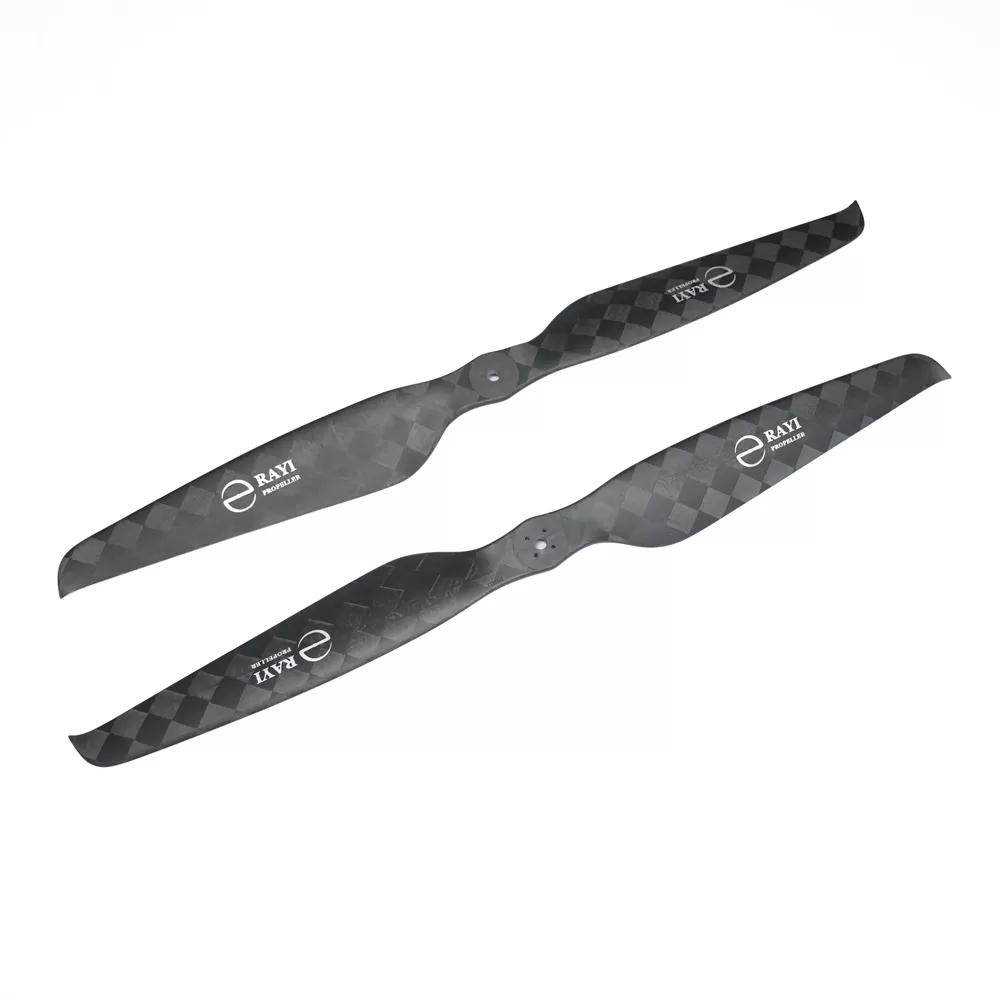

Product name: 20*6.5 Ultra light carbon fiber integrated CW/CCW Propeller
Propeller type: 2 blades-integrated
Includes: 1 piece CW and 1 piece CCW propeller
Specifications: IIXP,IIXE
Model: 20*6.5Y
Diameter (inches): 20
Pitch (inches): 6.5
Material: carbon fiber and epoxy
Surface Treatment : Polished or Frosted
Single net weight: 31g
Installation method: Screw fixation
Applicable models: Multi rotor,Vertical fixed wing
Thrust Limitation: ≤5300r/min
Optimum RPM: ≤4000g
Working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
When performance, precision, and durability matter, the Rayi 20x6.5 Carbon Fiber CW Drone Propeller delivers. Designed for high-efficiency aerial applications, this propeller is engineered to meet the exacting standards of professional drone manufacturers and operators across industries such as mapping, logistics, security, and surveillance.
Single Net Weight: Only 31g – ensuring ultra-light load and optimal flight stability
Thrust Limitation: ≤5300r/min – reliable operation within safe and controlled limits
Optimum RPM: ≤4000g – perfect balance between performance and endurance
These core specifications make the Rayi 20x6.5 Carbon Fiber CW Drone Propeller an ideal choice for UAV systems requiring high thrust-to-weight ratios, precise maneuverability, and long-term durability.
Lightweight Carbon Fiber Construction
The use of premium carbon fiber ensures a perfect blend of stiffness and weight reduction—crucial for high-efficiency drone flights.
Precision Engineered for CW Rotation
The Rayi 20x6.5 Carbon Fiber CW Drone Propeller is designed for clockwise rotation, improving stability in multi-rotor configurations.
Reduced Vibration & Noise
Achieve smoother flight dynamics with minimal vibration, enhancing onboard sensor accuracy and extending drone lifespan.
High Compatibility
Suitable for both industrial-grade drones and professional multirotor platforms, offering wide application flexibility.
Backed by Rayi’s Expertise
As a pioneer in propeller innovation, Rayi delivers performance you can trust with over 60 propeller models and 21 technical patents.
Whether you're upgrading your fleet or building a new UAV platform, the Rayi 20x6.5 Carbon Fiber Drone Propeller is a smart investment in quality and performance. Don’t settle for standard—choose a propeller engineered to meet real-world demands.
Contact us now to get a quote or inquire about bulk pricing. Take your drone performance to the next level with the Rayi 20x6.5 Carbon Fiber Drone Propeller—trusted by professionals worldwide.
Technical Parameter
| 20X6.5 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller | |||||||
| PARAMETER TABLE | |||||||
| voltage | current | thrust | torque | rotation speed | shaft power | axial force | throttle |
| (V) | (A) | (g) | (N.M) | (rpm) | (W) | (G/W) | (%) |
| 23 | 1.17 | 436 | 0.106 | 1846 | 20.49 | 21.28 | 30 |
| 23 | 1.75 | 604 | 0.143 | 2133 | 31.94 | 18.91 | 35 |
| 23 | 2.38 | 761 | 0.175 | 2372 | 43.46 | 17.51 | 40 |
| 23 | 3.25 | 982 | 0.22 | 2657 | 61.20 | 16.05 | 45 |
| 23 | 4.37 | 1204 | 0.271 | 2953 | 83.79 | 14.37 | 50 |
| 23 | 5.75 | 1462 | 0.324 | 3264 | 110.72 | 13.20 | 55 |
| 23 | 7.18 | 1709 | 0.374 | 3535 | 138.42 | 12.35 | 60 |
| 23 | 8.75 | 1973 | 0.427 | 3771 | 168.59 | 11.70 | 65 |
| 23 | 10.38 | 2210 | 0.477 | 3993 | 199.42 | 11.08 | 70 |
| 23 | 12.37 | 2473 | 0.532 | 4225 | 235.33 | 10.51 | 75 |
| 23 | 14.46 | 2719 | 0.588 | 4440 | 273.34 | 9.95 | 80 |
| 23 | 16.66 | 2992 | 0.644 | 4637 | 312.66 | 9.57 | 85 |
| 23 | 19 | 3255 | 0.7 | 4828 | 353.84 | 9.20 | 90 |
| 23 | 21.67 | 3534 | 0.761 | 5017 | 399.74 | 8.84 | 95 |
| 23 | 25.52 | 3879 | 0.84 | 5268 | 463.31 | 8.37 | 100 |
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Feature
Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.
1. With fine workmanship and exquisite appearance.
2. The blades have passed precise dynamic balance inspection, and the flight noise is low.
3. High aerodynamic efficiency, low power consumption, improve battery life.
4. Light and strong pulling force, and excellent balance.
5. Adopts push-type quick release design, which is easy to assemble and disassemble.
6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects
7. It is a perfect replacement for the damaged parts.
Dimensions:
We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch, 19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV
accept customized size and design
Notice: Accepted OEM &ODM
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
